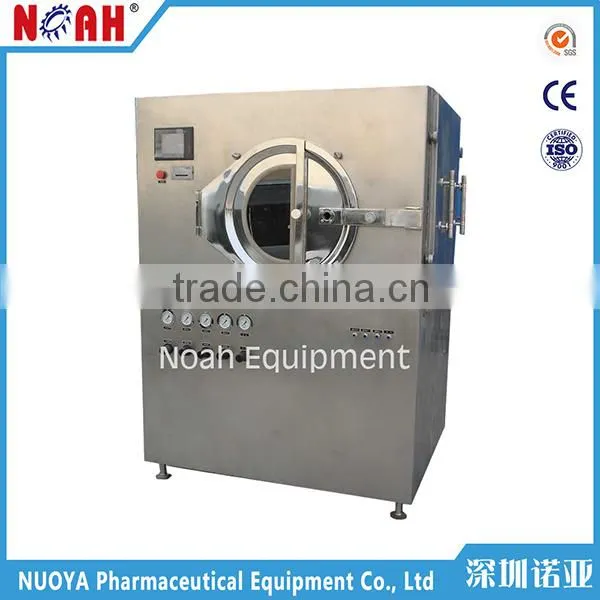

Medicine film coater (BG-150)
Applications:
Our Medicine film coater (BG-150) is mainly used for tablet, pellet, and candy to carry out organic thin film coating, water soluble thin film coating, slow and control releasing coating, dropping pellet coating, sugar-coating and chocolate in pharmaceutical and foodstuff industry. It is electromechanical integration coating equipment and conforms to the requirement of GMP
Peristaltic pump with constant pressure variable, eliminate reflux pipe:
1. Display with touch screen.
2. Expanded PLC module, all parameters are set in control panel.
3. Because of sound and heat insulation, it has temperature insulation effect to inside of machine.
4. Operate at full seal and negative pressure state.
5. Nozzle (from Japan)-uniform atomizing, big area of atomizing, adjustable direction,the sprayer has no dropping leakage and block.
6. Promote material to stir aslant and writhe. The exchanging frequency is frequent.Therefore it can raise the rate of finished product.
Main technical specifications:
Item |
BG-150 |
Capacity (kg/time) |
150 |
Speed of drum (rpm) |
3-15 |
Power of main motor (kW) |
2.2 |
Power of motor for high efficiency filtering hot air (kW) |
1.5 |
Power of motor for dust removing and air exhaust (kW) |
5.5 |
Overall size of main machine (mm) |
1,430 x 1,250 x 2,060 |
Overall size of high efficiency filtering hot air machine (mm) |
900 x 1,000 x 2,300 |
Overall size of dust removing and air exhaust fan (mm) |
920 x 910 x 2,090 |
Weight of main machine (kg) |
1,200 |
Weight of high efficiency filtering hot air fan (kg) |
300 |
Weight of dust removing and air exhaust fan (kg) |
400 |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship Pill film coater(BG-150) by sea way.
Our Company is one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical, Chemical, food and so etc fields.
Our Main Products are: Tablet press,Mixer,Crusher,Granulator,Dryer,Coater,Packing machine,Filling Machine,Miller and Pulverizer, Feeder,Oven, Deduster, Dust Collector, vibration sieves...
We also supply punch die sets and spare parts in standard or not.
