Specifications
GS-A1 Screw Charging Machine:1.Double electromotors conveyor.
2.Powder spiral Charging Machine.
3Stainless GMP feeder.

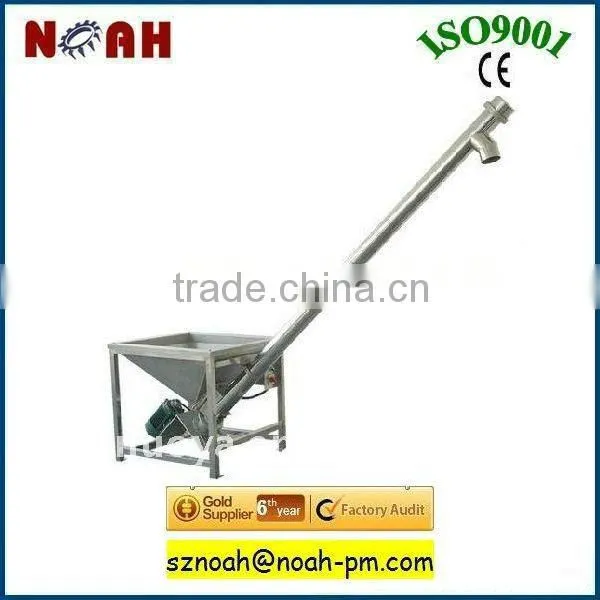

GS-A1 Lab Charging Machine
Brief instruction:
The GS-A1 Lab Charging Machine is suitable for multiple powdery product, working together with kinds of packing machine, the product feeding of the conveyor is controlled to retain the product level in the product cabinet . And the machine can be used independently . All parts are make of stainless steel except the electromotor , bearing and support frame .
Characteristic:
1.Using double electromotors: feeding motor & vibrating motor , separately controlled .
2.Product funnel is design to be adjustably vibratile , which lead to avoid product blocking and improve the adaptation of different products.
3. Product funnel can separate from the tube for easy assembly.
4. Special anti-dust design to protect bearing from dust.
5. In order to convenience machine cleaning , following functions are added in : auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel , auger can be disassemblied for washing.
Specification :
Model |
GS-A1 |
GS-A2 |
Capacity |
3m3 /h |
5m3 /h |
Cabinet Cubage |
230L |
230L |
Conveyor Height |
1.8m (other height optional) |
1.8m (other height optional) |
Motor Power |
930W |
1700W |
Power |
380V / 50-60Hz |
380V / 50-60Hz |
Weight |
130kg |
160kg |
Cabinet Dimension |
860 * 900* 1100 mm |
860 * 900* 1100 mm |
