EMULEX LPe12000 8Gb/s Fibre Channel PCI Express 2.0 Single Channel Host Bus Adapter

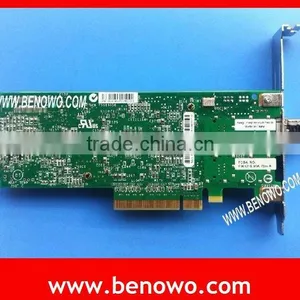

EMULEX LPe12000 8Gb/s Fibre Channel PCI Express 2.0 Single Channel Host Bus Adapter thumbnail-1

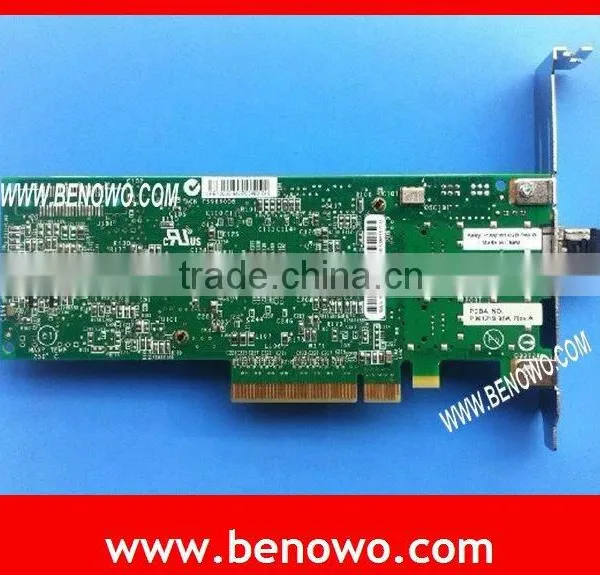

EMULEX LPe12000 8Gb/s Fibre Channel PCI Express 2.0 Single Channel Host Bus Adapter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Server
Type:
Wireless
Contact Supplier Request Quote Chat Now
Shenzhen Techwave Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Server
Type Wireless
Kind Internal
Interface Type PCI Express
Brand Name EMULEX
Model Number LPe12000

Specifications

EMULEX LPe12000 8Gb/s Fibre Channel PCI Express 2.0 Single Channel Host Bus Adapter

EMULEX LPe12000 8Gb/s Fibre Channel PCI Express 2.0 Single Channel Host Bus Adapter



Standards

  • ANSI Fibre Channel: FC-PI-4, FC-FS-2, FC-FS-2/AM1, FC-LS, FC-AL-2, FC-GS-6, FC-FLA, FC-PLDA, FC-TAPE, FC-DA, FCP through FCP-4, SBC-3, FC-SP, FC-HBA and SMI-S v1.1
  • PCI Express base spec 2.0
  • PCI Express card electromechanical spec 2.0
  • Fibre Channel class 2 and 3
  • PHP hot plug-hot swap
Architecture
  • Single-channel
  • 8Gb/s, 4Gb/s or 2Gb/s FC Link speeds automatically detected
  • Integrated data buffer and code space memory
Comprehensive OS Support
  • Windows, Linux, NetWare, Solaris, VMware
  • Additional support is available from OEMs and partners
Hardware Environments
  • PowerPC,® SPARC,® x86, x64 and Intel® Itanium® 64-bit processor family
Optical
  • Data rates: 2.125, 4.25 and 8.5Gb/s (auto-detected)
  • Optics: Short wave lasers with LC type connector
  • Cable: Operating at 8Gb/s
    • 50/125 microns (500MHz*km BW)-up to 50m
    • 50/125 microns (2000MHz*km BW)-up to 150m
Physical Dimensions
  • Short, low profile MD2 form factor card
  • 167.64mm x 68.91mm (6.60" x 2.71")
  • Standard bracket (low profile available)
Power & Environmental Requirements
  • Volts: +3.3, +12
  • Operating temperature: 0° to 55°C (32° to 131°F)
  • Storage temperature: -40° to 70°C (-40° to 158°F)
  • Relative humidity: 5% to 95% non-condensing
  • 23 degree C wet bulb
Agency Approvals
  • Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1
  • UL recognized to UL 60950-1
  • CUR recognized to CSA22.2, No. 60950-1-03
  • Baurt-certified to EN60950-1
  • FCC Rules, Part 15, Class A
  • ICES-003, Class A
  • EMC Directive 2004/108/EEC (CE Mark)
    • EN55022, Class A
    • EN55024
  • Australian EMC Framework (C-Tick Mark)
    • AS/NZS CISPR22, Class A
  • VCCI (Japan), Class A
  • MIC (Korea), Class A
  • BSMI (Taiwan), Class A
  • EU RoHS Compliant (Directive 2002/95/EC)
  • China RoHS Compliant
