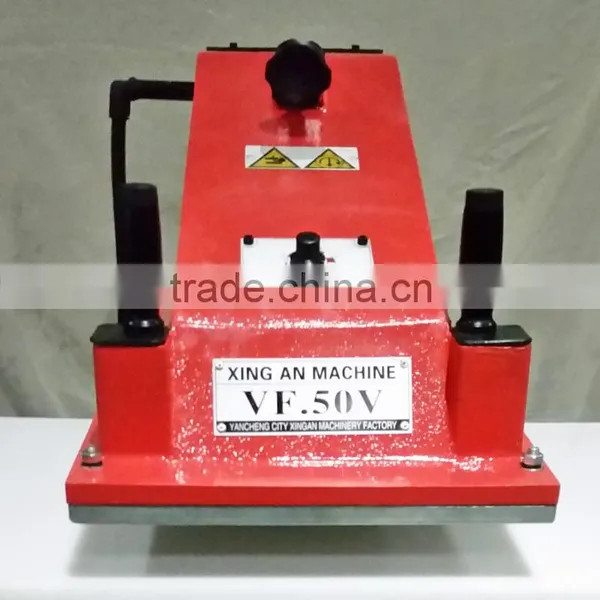

Help CenterFabric Pattern Cutting Machine /hydraulic Swing Arm Cutting Machine
Related Products
-
Small Hydraulic Swing Arm Shoe Leather Die Cutting MachineUS$ 1 - 3,000MOQ: 1 Set -
Small Hydraulic Clicker Die Cutting Machine Shoe Leather Cutting MachineUS$ 1 - 3,000MOQ: 1 Set
-
Hydraulic Swing Arm Cutting Machine For FoamUS$ 1 - 3,000MOQ: 1 Set
-
Leather Glove Cutting Machine/hydraulic Swing Arm Cutting MachineUS$ 1 - 3,000MOQ: 1 Set
-
Hydraulic Swing Arm Cutting Machine for Glove/cloth/Non-wovenUS$ 3,100 - 3,100MOQ: 1 Set
Don't know how many ton you need?
Please contact us!
Don't know how the machine working?
Please contact us to see the video!
fabric pattern cutting machine
This swing arm hydraulic press machine is applicable to cutting of various nonmetal materials( such as leather, fabric, foam, EVA, rubber gasket, plastic etc) by cutting die.
Application: it can be used for cutting gasket, shoes, gloves, balls, bags, sand paper, carpet, toys industries etc.
Safe :two-hand trip operation, rocker cutting head rotates freely, the best sight in operation, convenience in choosing materials with high efficiency.
1.The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of die cutter is changed.
2.High speed, low energy consumption, less failure and easy maintenance.
3.To meet the need of frequent replacement of die cutters of different sizes.
4.Ductile cast iron body made the cutting machine be used for a very long time with small noise.
5.Hydraulic Press machine of special specifications can be customized.
What Specifications of our cutting machie?
Technical Parameters fabric pattern cutting machine
Model number |

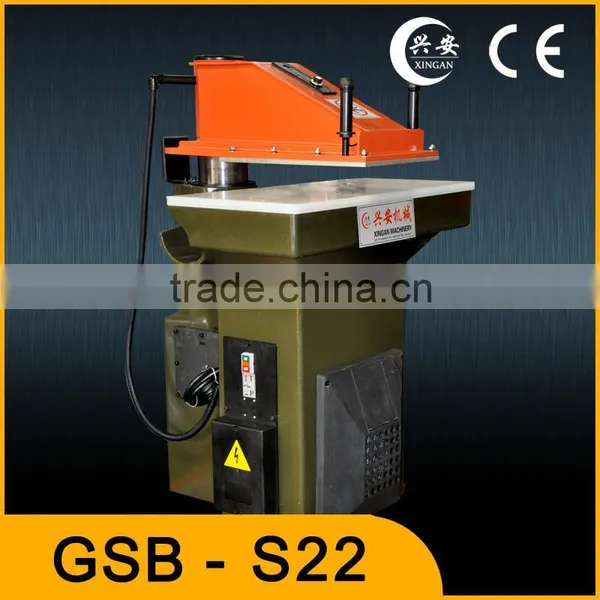

GSB-S22 |
GSB-S27 |
GSB-S27K |
GSB-S27L |
Maximum cutting force |
22T |
27T |
27T |
27T |
Table area |
900*430mm |
1000*500mm |
1000*500mm |
1000*500mm |
Stroke adjustment |
5-75mm |
90mm |
90mm |
90mm |
Swing arm width |
370mm |
400mm |
500mm |
610mm |
Packing size |
1050*1000*1500mm |
1150*1200*1500mm |
1150*1200*1500mm |
1150*1200*1500mm |
N.W(wihe oil) |
650kg |
960kg |
1050kg |
1200kg |
G.W |
900kg |
1120kg |
1210kg |
1360kg |
Electric suppl voltage |
3*440/415/400/380/220/200V,50/60Hz Single phase240/220V,50/60Hz |
|||
MOQ |
1 |
1 |
1 |
1 |
Motor power |
1.1KW |
1.5KW |
1.5KW |
1.5KW |
Use and character fabric pattern cutting machine
1.The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of die cutter is changed. |
2.High speed, low energy consumption, less failure and easy maintenance. |
3.To meet the need of frequent replacement of die cutters of different sizes. |
| 4.Ductile cast iron body made the cutting machine be used for a very long time with small noise. |
| 5.Hydraulic Press machine of special specifications can be customized. |
Why Choose Us? fabric pattern cutting machine
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by Email or Telephone.
3. 24hour technical support on Internet or by Telephone, free instructions and problem solving.
How to choose the most suitable hydraulic die cutting machine for your business?
1)material: nonmetal
2)Cutting area depends on your material size.
3)Feeding system depends on your material style ( rolls or sheets).
4)The force depends on the perimeter of the die blade.
Welcome to contact us for select the right model.
Remark: We can make the machine according to your specifically order, for example the color, the motor information ,the working table etc.

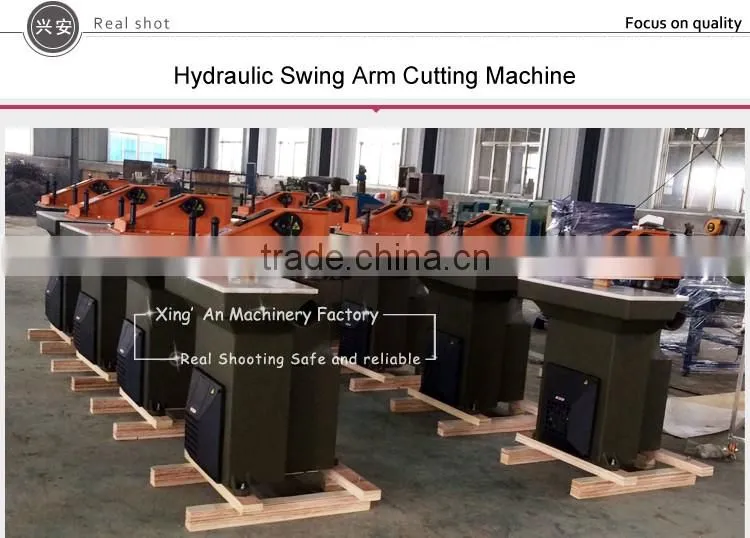

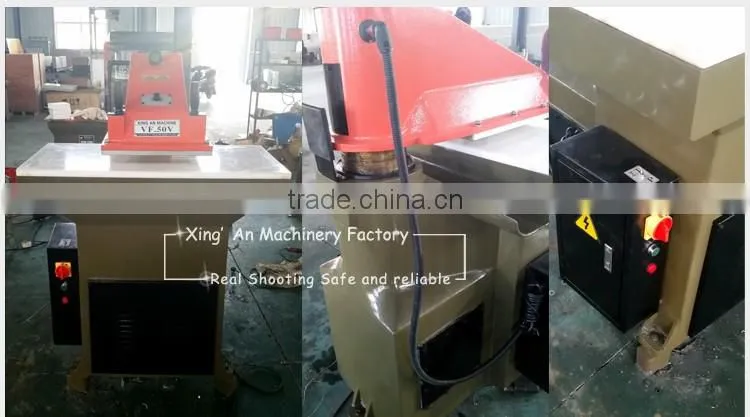

working show fabric pattern cutting machine

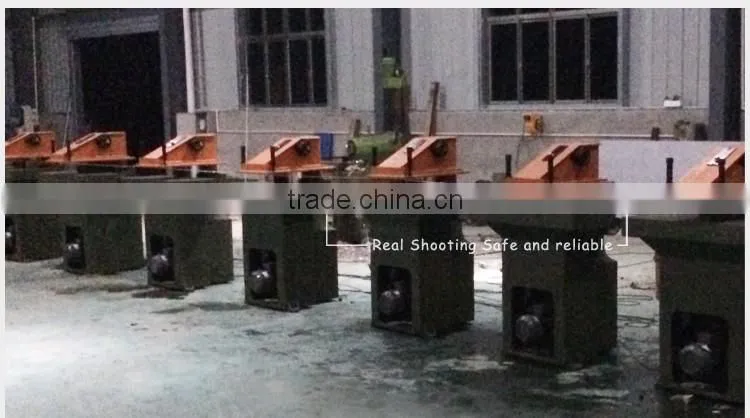

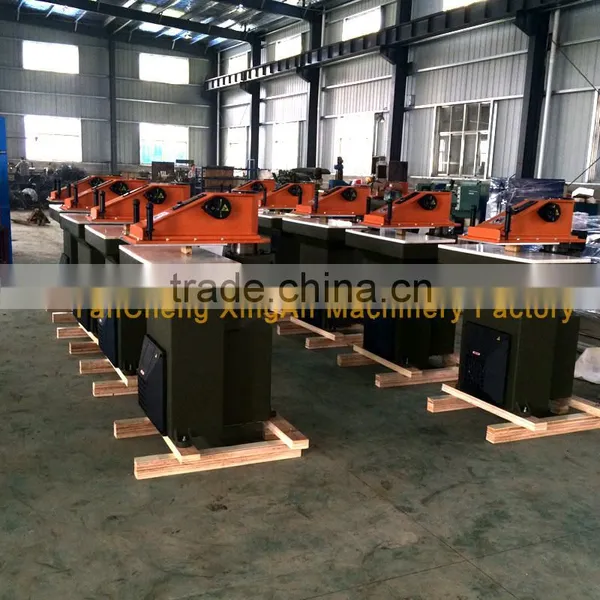

Field trips fabric pattern cutting machine
1.Q:Are you a factory or tarding company?
A:We are a factory
2 Q:What is your MOQ of this item?
A: 1 set per style
3 Q: What are your payment terms?
A: 30% deposit and balance T/T before shipment or L/C at sight.
4 Q:Why we choose Xingan?
A:16 years experience of cutting machine industry.
Factory direct sales,best price.
Fast,safe and timely transport supplies.
OEM and ODE service are availale.
5 Q: How to choose the most suitable machine for your business?
A: 1.Tell us the materials you use.
2.The size and thickness about your materials.
3.Which automatic grade you need, automatic or manual?

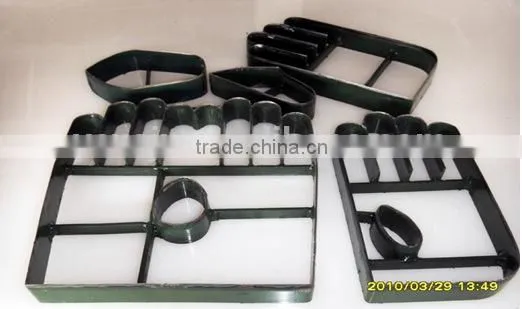

4.The perimeter of the die cutter you use, our factory also can produce the dies for your machine
