2012 Sinywon Hot Selling 135W Solar Panel With TUV

Name: 2012 Sinywon Hot Selling 135W Solar Panel With TUV
Brand: Sinywon
SKU: 125974959

US$ 1.1 - 1.8 MOQ: 20 Pieces

Key Specifications

Place of Origin:

China

Brand Name:

Sinywon

Model Number:

SYW-135M

Xiamen Sinywon Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Sinywon

Model Number SYW-135M

Material Monocrystalline Silicon

Size 1200*808*35mm

Number of Cells 54cells

Max. Power 135W

Specifications

2012 Sinywon Hot Selling 135W Solar Panel with TUV
1.Warranty:25yrs
2.CE TUV,UL
3.High Efficency
4.Steady yield

2012 Sinywon Hot Selling 135W Solar Panel with TUV

1.Warranty:25yrs
2.CE TUV,ULCertification
3.High Efficency
4.Steady yield

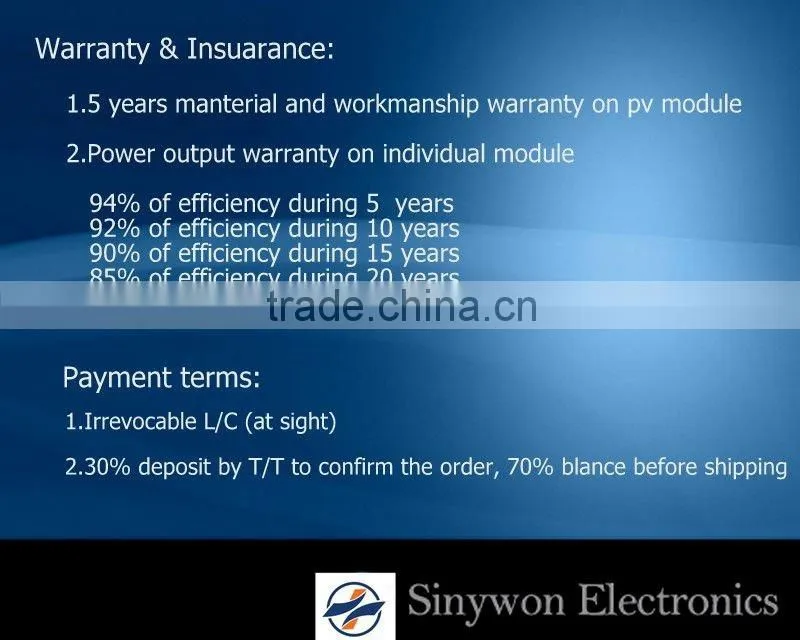

Warranties & Insurance:

1. 5-year material and workmanship warranty on photovoltaic modules

2.Power output warranty on individual module:

* 94% of efficiency during 5 years

* 92% of efficiency during 10 years

* 90% of efficiency during 15 years

* 85% of efficiency during 20years

* 80% of efficiency during 25 years

ITEM NO.	SYW135W-27M	SYW125W-27M	SYW115W-27M
Maximum Power (W)	135W	125W	115W
Optimum Power Voltage (V mp)	26.36	26.36	26.36
Optimum Operating Current (I mp):	5.13	4.75	4.37
Open Circuit Voltage (Voc)	32.4	32.4	32.4
Short Circuit Current (ISC)	5.48	5.07	4.66
Cell Efficiency (%)	17%	15.71%	14.46%
Module Efficiency (%)	13.92%	12.89%	11.86%
FF (%)	70-76%
Warranty	90% of 10 years, 80% of 25 years.
Standard Test Conditions	AM1.5 1000W per square 25 +/-2°C
Bypass Diode Rating (A)	12
Cable & Connector Type	Pass the TUV Certificate
Brand Name of Solar Cells	----Cell

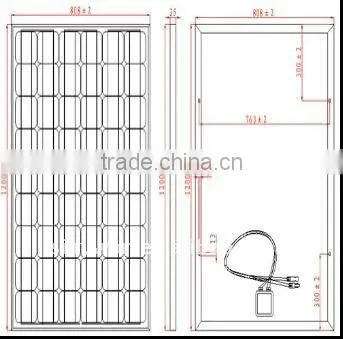

Size of Module (mm)	120080835
Solar Cell	125*125 Mono
Backing( Material)	TPT
Frame (Material Corners, etc.)	Aluminum-alloy
Number of Cell (PCS)	6*9
N/W(KG)	12.7
Junction Box Type	Pass the TUV Certificate
Tolerance Wattage (e.g. + /-5%)	±3%
Front Glass Thickness (mm)	3.2
Surface Maximum Load Capacity	2400Pa
Allowable Hail Load	23m/s, 7.53g
Packing	1*20'	504PCS
	1*40'STD	1067PCS
Temperature Coefficients of ISC(%)°C:	0.04
Temperature Coefficients of Voc(%)°C:	-0.38
Temperature Coefficients of Pm(%)°C:	-0.47
Temperature Coefficients of IM(%)°C:	0.04
Temperature Coefficients of VM(%)°C:	-0.38
Temperature Range	-40°C to +85°C
