Help CenterFood Emulsifier
US$ 800 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Product Type:
Other, Food
Place of Origin:
Shanghai, China
Brand Name:
ELE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Product Type
Other, Food
Place of Origin
Shanghai, China
Brand Name
ELE
Model Number
ELR/3
Specifications
1.Food Emulsifier2.precision finishing stator and rotor
3.rotation:2890rpm
4.flow 0.5-70m3/h
5.head/lift 8m

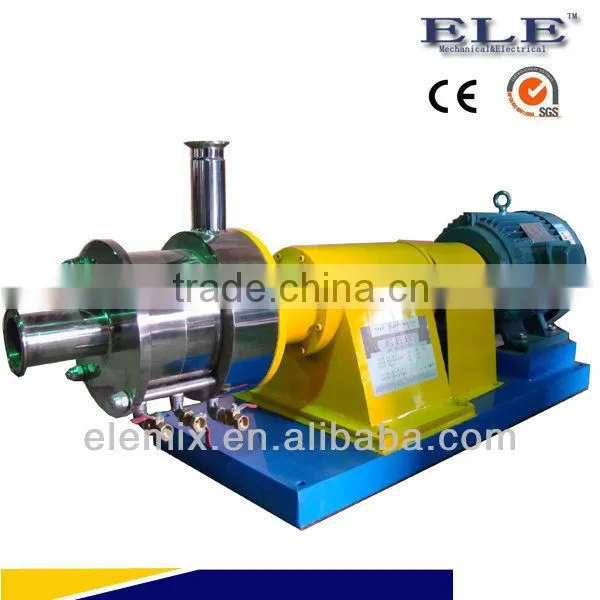

ELR/3 Food Emulsifier
Introduction:
This machine with key part of stator and rotor, which is linear cutting, It can disperse, mix and emulsify various kind of liquid with different viscosity by high shearing power. Widely used in production of food, beverage, fragrance, cosmetic, shampoo, asphalt/bitumen emulsion, shampoo..
Features:
- Claw-structure
- three sets of precision engieered stator and rotor inside of the chamber
- double end mechanical seal, can design water protector according to requirement
- perfect emulsifying, reach micro-emulsion, suitable for high requirement emulsion
- adopt elastic connection, low noise, prolong the service life
- material: all parts contract with material is ss304 or ss316L stainless steel
- head/lift: 8m
Parameters:
- Power supply: 380v, 50hz, 3ph
- Rotation speed: 2890rpm/1440rpm
- structure: 3 couples, 6 layers of stator and rotor
- flow:0.5-70m3
- Surface treatment: electro polishing, inner: Ra0.8-1.2um, outerRa3.2um, other part is coated resisteance to chemical corrosion paint
More Parameters
| Model | Power /KW | Rotation/ rpm | Flow/m3/h | Entrance | Exit |
| ELR401/3 | 1.1 | 2890 | 0.5 | DN40 | DN32 |
| ELR405/3 | 4 | 2890 | 2 | DN40 | DN32 |
| ELR410/3 | 7.5 | 2890 | 4 | DN50 | DN40 |
| ELR415/3 | 11 | 2890 | 6 | DN65 | DN50 |
| ELR420/3 | 15 | 2890 | 12 | DN65 | DN50 |
| ELR425/3 | 18.5 | 2890 | 16 | DN65 | DN50 |
| ELR430/3 | 22 | 2890 | 18 | DN65 | DN50 |
| ELR450/3 | 37 | 1440 | 26 | DN100 | DN80 |
| ELR475/3 | 55 | 1440 | 32 | DN125 | DN100 |
| ELR490/3 | 75 | 1440 | 45 | DN125 | DN100 |
| ELR510/3 | 90 | 1440 | 55 | N125 | DN100 |
| ELR530/3 | 110 | 1440 | 70 | DN150 | DN125 |
Stator and Rotor
Remarks:
1. the machine can design with jacket to heat or cool the product if process need.
2. For oil product, the motor can be ex-proof, and with on-spot ex-proof control box.
