Farm tipping trailer with hydraulic power unit
tipper trailer
Farm tipping trailer with hydraulic power unit, tipper trailer kayak trailer semi trailer dump trailer
1. Tipping Trailers are great around any small acreage or hobby farm and can be useful.

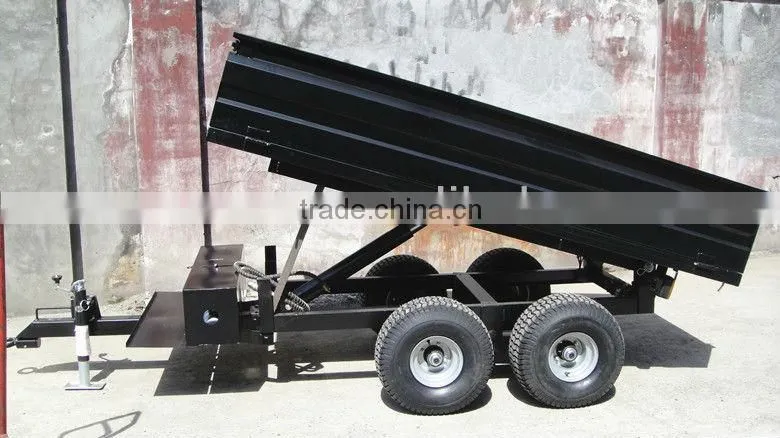

2. With a hydraulic lift for tipping they are perfect for transporting soil,sand,feed,fertilizers,tools,small machinery&trees for planting.
3. Perfect for transporting hay to all corners of your property.
4. Opening rear flap for easy tipping as your drive.

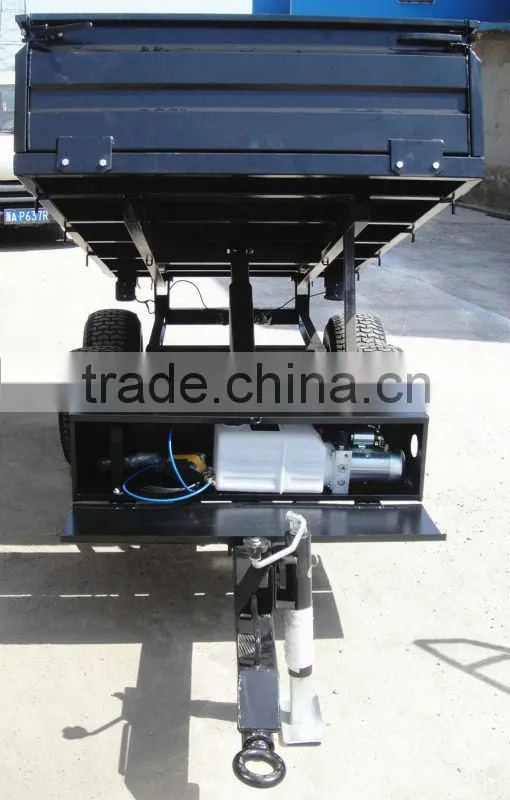

5. With a hydraulic cylinder ram and hose connecting,with tail lights.
6. Side and rear panels easy removable.
7. No highway.
| Hydraulic Power Unit | |||
| Voltage | DC12V | Flow Rate | 1.9L@170Bar |
| AMPS | 235A | Reservoir | 5.7L |
| Power | 2.3KW | Dimensions | 660x170x210 |
| Relief Setting | 170Bar | Gear Pump | 3.2ML/R |
| Model | 2TWGN4W | 3TWGN4W |
|---|---|---|
| Tractor Hp | 25-40 | 30-50 |
Internal Lengt(mm) |
2400 | 2800 |
Internal Width(mm) |
1280 | 1500 |
Internal heigh(mm) |
380 | 380 |
| Max.load(kg) | 2000 | 3000 |
| Max Lift Angle | 56 | 56 |
| Tire Number | 4 | 4 |
| Tire Size | 10X10-8 | 7.00-12 |
| Weight(kg) | 343 | 573 |
Sansen more product Show |
Factory workshop |
CE Certificate |
About Us |
Sansen is an owned & run business and OEM manufacturer, located in Hangzhou city China offering a range of top quality Agriculture machinery,Farm machines, Garden tools, Landscape Contractor Equipments, skid steer load attachments,ATV/UTV's attachments, tractor 3 point linkage mounted implements to suit small to medium sized tractors with CE certified and related services. We aim to provide a quality service to our customers.
We supply |
1. Grass cutter,brush cutter machine:
Tractor mower: finish mower, flail mower,rotary mower,slasher mower,topper mower,dump mower,disc mower,bar mower.
Atv/UTV’s lawn mower: atv finish mower,atv flail mower.
2. Farm trailers:0.5ton to 4ton with rear hydraulic tipper trailers,three way dump hydraulic trailers,plate trailers
Atv/UTV’s trailer: utility cart trailer; tow behind trailer
3. Ttransport box,transport box with hydraulic: tipping link box,dirt scoop,trip scoop,carry-alls,pallet forks.
4. Cultivator: box scraper,garden blades,scraper rake,rippers,rotary tiller,middle buster;subsoiler,ripper pipelayer,lawn aerator roller,land leveler, ballast roller, spike tooth harrow,landscape rakes, core aerators.
5. Plough:disc harrow,mouldboard plow,single bottom plow;double plough,hydrdaulic plow.
6. harvester machines:potato harvest,post hole digger with hydraulic or without hydraulic cylinder from 6"to24" augers.
7. Hay machinery: hay spikes,bale spear,bale move,spkies,bale bork.hay cutter.pallet move
8. Forest machinery:wood log splitter,wood chipper,trailer with crane.
9. Other implmenets:cement mixer,concrete mixer,front end loader,quick hitch,quick hitch move,trailer hitch,boom pole,carne,parts/spare part/accessories,etc.
We Service |
We are a factory with self-supported import and export right.
All our products are competitively priced that we can advise which product is the best machine for your requirement and budget.
Port: Ningbo or Shanghai around 200 kms.
Airport: Hangzhou xiaoshan international airport just 15 minutes.
OEM design: We also have custom-made products developed and manufactured.
Ask for advice and guidance |
Contact: Jane
Tel: 0086-571-82854699
Fax: 0086-571-82614165
Mobil: 15869156080
Skype: jane197430
Msn: wangjiaxing741230(at)
E-mail: wjx (at) ; wangjiaxing1974(at)
Web:
Shipping |
Shipping Port: Ningbo or Shanghai by sea.
Shipping cost: Local Pick Up, or email or phone for courier costs on wjx (at)
Or call: 0086 15869156080
Delivery time: Contact Us on wjx (at) for details
Payment |
l T/T or L/C payment.
l Sample: 100% deposit before production
l Normal: 30% deposit before production, 70% balance by BL copy.
Please contact us on wjx (at) or skype: jane197430 or 0086 15869156080 if you have any questions.
