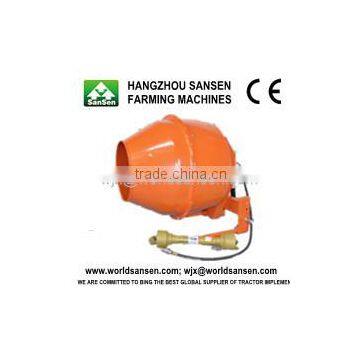

concrete mixer / Cement Mixer
* Main Features:
5CU fFT CEMENT MIXER, CONCRETE MIXER

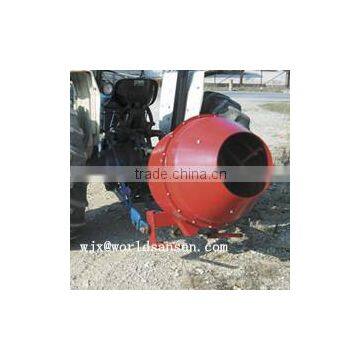

* This is a 3 point linkage mounted PTO Driven Concrerte Mixer.
* Perfect for mixing concrete or cement anywhere around the property.
* It can be used for various projects from concrete preparation to mixing feed, fertilizer, seed, potting soil and others.
* The 2 piece steel drum is made of 2.5mm and 1.5mm steel with no welded joints,bolted together,with internal paddles for uniform mixing.
* Hydraulic top link cylinder provides positive dump control.
* Chain transmission driven system is protected by a steel housing with easy access for maintenance.
* Compact, trouble free, long life design with few moving parts.
* Sealed ball bearings provide long service life with reduced maintenance.
* Capacity: 5 cubic feet.
* Adjustable Cat.I hitch allows easy hook up to most tractors (7/8" Dia. Lift pins).
* 17.5" Drum Opening.
* PTO Driveline Shaft Included: 540 RPM.
* Finish: Power coating and colors can be made according to customer needs.
* Tractor hitch: Cat. 1
* Parking stand for easy storage.
* Specifications:
Model |
5CM |
Capacity |
Five(5)cu./ft.(1 bag mix) |
Drum Opening(in/mm) |
17.5"/444mm |
Diameter of Drum(in/mm) |
17.5"/444mm |
Drum Construction |
2-piece bolted |
PTO Speed |
540rpm |
Drum Drive |
Chain |
Drive Ratio |
8.77:1 |
Hydraulic Toplink Cylinder Type |
Double Acting |
Hitch Requirement |
Cat.1(7/8"Dia.Lift Pins) |
Hydraulic Toplink Postitions |
Three(3) |
Lower Pull Pin Positions |
Four(4) |
Parking Stands |
Standard |
Tractor Equipment(min.PTO HP) |
25 PTO HP |
Shipping Weight(lb/kg) |
230lbs/105kg |
Code No. |
Model No. |
Disc. |
Tractor Hp |
11010101 |
5CM01 |
one-way cylinder 5 cubic ft cement mixer |
18-40 |
11010102 |
5CM02 |
two-way cylinder 5 cubic ft cement mixer |
18-40 |
* Optionals
1. Color as customers' requirement.
2. packed in a paper carton and frame steel or three-ply carton can be adjustable.

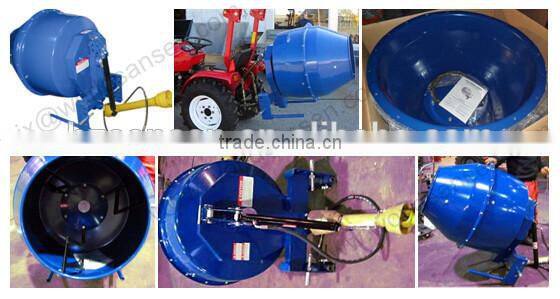

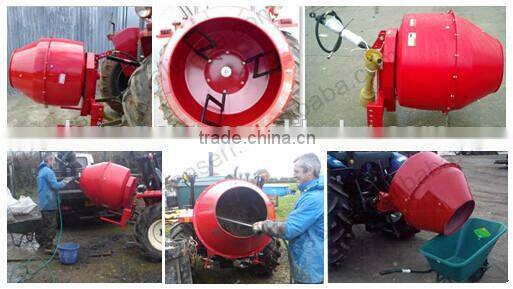

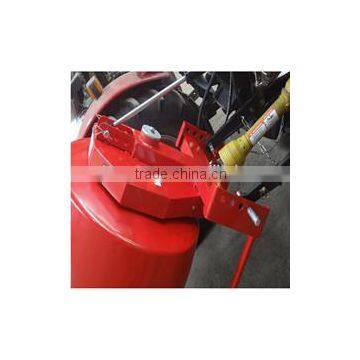

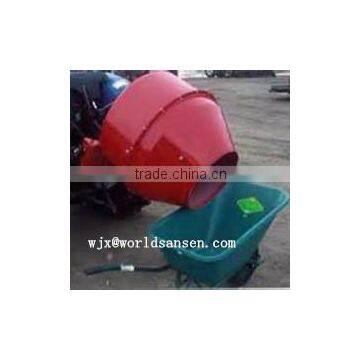

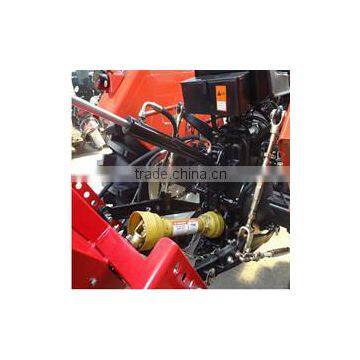

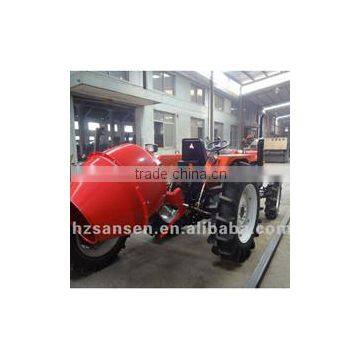

* Picture Display

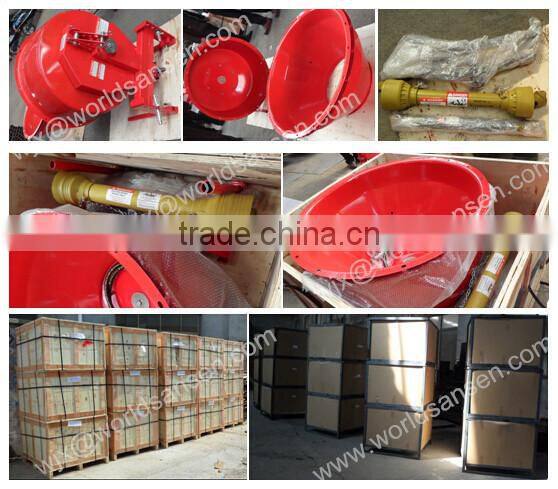

* Packing List
Code No. |
Model No. |
G.W.(KGS) |
N.W.(KGS) |
20'GP |
40'GP |
11010101 |
5CM01 |
130 |
105 |
36 |
72 |
11010102 |
5CM02 |
131 |
106 |
36 |
72 |

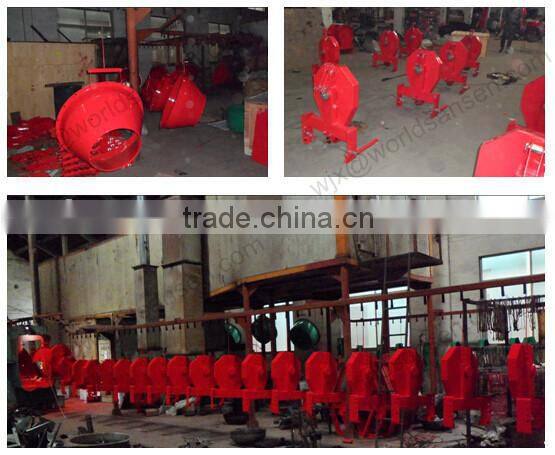

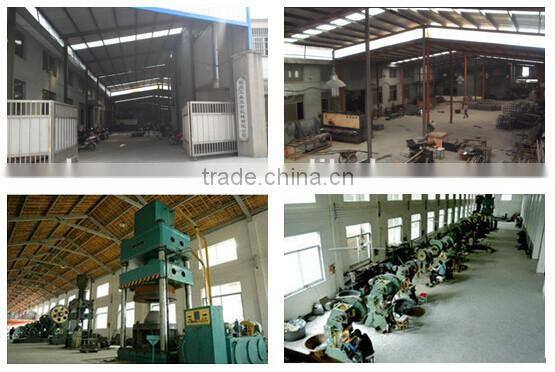

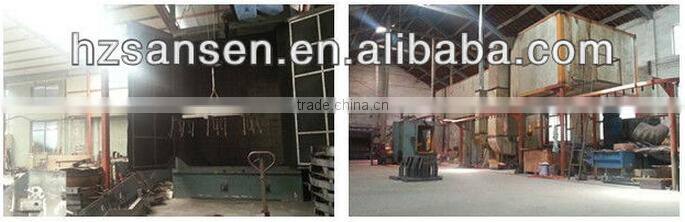

* Factory-Workshop
* CE
About Us:
Sansen is an owned & run business and OEM manufacturer, located in Hangzhou city China offering a range of top quality Agriculture machinery,Farm machines, Garden tools, Landscape Contractor Equipments, skid steer load attachments,ATV/UTV's attachments, tractor 3 point linkage mounted implements to suit small to medium sized tractors with CE certified and related services. We aim to provide a quality service to our customers.
We supply:
- Grass cutter,brush cutter: atv finish mower,atv flail mower,finish mower,flail mower,rotary mower,slasher mower,topper mower,flail mower,dump mower,disc mower,bar mower.
- farm trailers: 1.0ton to 4ton with rear hydraulic tipper trailers,three way dump hydraulic trailers,plate trailers,atv utility cart
- transport box,transport box with hydraulic: tipping link box,dirt scoop,trip scoop,carry-alls,pallet forks.
- cultivator: box scraper,garden blades,scraper rake,rippers,rotary tiller,middle buster;subsoiler,ripper pipelayer,lawn aerator roller,land leveler, ballast roller, spike tooth harrow,landscape rakes, core aerators.
- Plough:disc harrow,mouldboard plow,single bottom plow;double plough,hydrdaulic plow.
- harvester machines:potato harvest,post hole digger with hydraulic or without hydraulic cylinder from 6"to24" augers.
- Hay machinery: hay spikes,bale spear,bale move,spkies,bale bork.hay cutter.
- Forest machinery:wood log splitter,wood chipper,trailer with crane.
- Other implmenets:cement mixer,concrete mixer,front end loader,quick hitch,quick hitch move,trailer hitch,boom pole,carne,parts/spare part/accessories,etc.
We Service:
- All our products are competitively priced that we can advise which product is the best machine for your requirement and budget.
- Ask us for advice and guidance:
- OEM acceptable.
- CE Approved
- Color as per customers' requirement.
Contact: Jane
- Tel: 0086-571-82854699
- Fax: 0086-571-82614165
- Mobil: 15869156080
- Skype: jane197430
- Msn: wangjiaxing741230(at)
- E-mail: wjx (at) ; wangjiaxing1974(at)
- Web:
Shipping:
- Shipping Port: Ningbo or Shanghai by sea.
- Shipping cost: Local Pick Up, or email or phone for courier costs on wjx (at) Or call: 0086 15869156080
- Delivery time: Contact Us on wjx (at) for details
Payment:
- T/T or L/C payment.
- Sample: 100% deposit before production
- Normal: 30% deposit before production, 70% balance by BL copy.
Thanks for your viewing this model tracto cement mixer,concrete mixer.
Please take some time to browse our web site. We always like feedback or ideas to improve.
