Single-screw Water-cooling Plastic Recycling Machine

Single-screw Water-cooling Plastic Recycling Machine photo-1

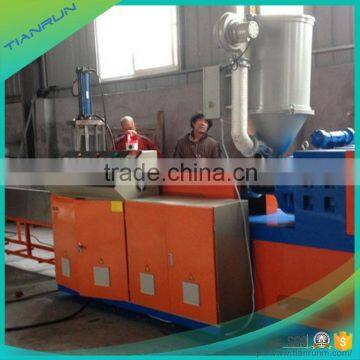

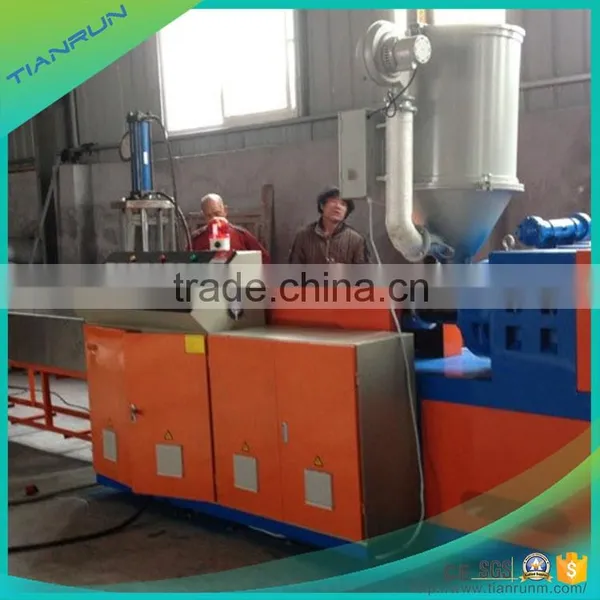

Single-screw Water-cooling Plastic Recycling Machine photo-2

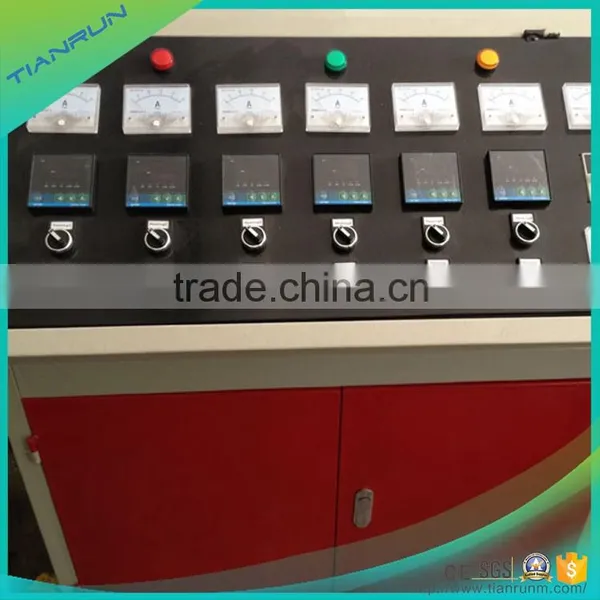

Single-screw Water-cooling Plastic Recycling Machine photo-3
US$ 6,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Granulating Production Line
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Granulating Production Line
Place of Origin Zhejiang, China
Brand Name TianRun
Model Number SJ-90, SJ-100, SJ-110, SJ-120
Material PP/PE
Screw Design Single
Voltage 380V
Dimension(L*W*H) 4.0*1.2*1.8m, 4.0*1.5*1.8m 4.0*1.5*1.8m, 4.0*1.5*1.8m
Weight 2000kg, 2100kg, 2200kg, 2500kg
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Single-screw Water-cooling Plastic Recycling Machine

Summary:
This machine is suitable for regeneration and granulation of waste plastic film and bag such as HDPE, LDPE and PP etc. It’s equipped with automatic temperature control. The granulating crusher uses variable speed motor (V.S. motor), pelleting with and extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.

1.The main motor is variable-frequency motor which is controlled by inverter.
2.It’s equipped with manual filter screen changer. The quick motor-operated filter screen changer or hydraulic pressure screen changer is optional device.
3.Material force feeder is also optional device.

Product Description

Single-screw Water-cooling Plastic Recycling MachineSingle-screw Water-cooling Plastic Recycling Machine Single-screw Water-cooling Plastic Recycling MachineSingle-screw Water-cooling Plastic Recycling MachineSingle-screw Water-cooling Plastic Recycling Machine



Main Technical Parameters:

Model

SJ-90

SJ-100

SJ-110

SJ-120

Screw Diameter

Φ90

Φ100

Φ110

Φ120

Screw L/D Ratio

20:1/22:1

Screw Rotating Speed

10-100r/min

Main Motor Power

18.5kw

22kw

30kw

37kw

Main Inverter

18.5kw

22kw

30kw

37kw

Output

68kg/hr

95kg/hr

120kg/hr

135kg/hr

Machine Weight

2000kg

2100kg

2200kg

2500kg

Overall Dimension

4.0×1.2×1.8m

4.0×1.5×1.8m

4.0×1.5×1.8m

4.0×1.5×1.8m

Power Supply

380V 3-phase 50Hz

Tianrun retains the right to modify parameters without previous advice.
