Specifications
Plastic Film Blowing Printing Machineblow PE plastic film
film blowing and printing machine
plasitc film printing machine

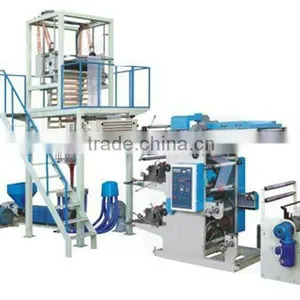

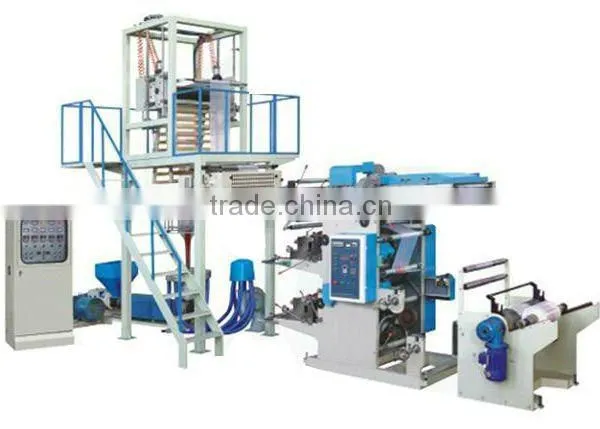

Plastic Film Blowing Printing Machine
film blowing and printing machine
film blowing printing machine
plasitc film printing machine
Characteristics:
- Easy operation, flexible starting accurate colour register.
- The meter counter can set printing length according to the requirement. Stop the machine automatically at the set quantity or when the material is cut off.
- Lift and lower the printing plate cylinder manually, It will automatically stir the printing ink after lifting
- The printing ink is spread by the knurled cylindder with even ink colour.
- Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
- 360 degree continuous and adjustable longitudinal register device.
- The imported frequency control of motor speed adapts to different printing speeds.
- There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Use:
Its extruder, cylinder and screw are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polythene (LDPE), high density polythene(HDPE) and linear low density polythene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
This machine is suitable for printing such packing materials as polyethylene, polypropylene bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Main Technical Parameters:
Model |
TR-FB45/YT-2600 |
TR-FB50/YT-2800 |
TR-FB55/YT-21000 |
Applied Material |
LDPE, HDPE, LLDPE |
||
Screw Diameter |
45 mm |
50 mm |
55 mm |
Screw L/D Ratio |
30:1 |
||
Main Motor Power |
11 kw |
15 kw |
18.5 kw |
Max. Extrusion Output |
45 kg/h |
60 kg/h |
75 kg/h |
Die-head Size (mm) |
Φ60 / Φ80 |
Φ80 / Φ100 |
Φ100 / Φ125 |
Blown Film Width |
600 mm |
800 mm |
1000 mm |
Blown Film Thickness |
0.01-0.10 mm |
||
Printing Length |
191-1200 mm |
||
Printing Width |
600 mm |
800 mm |
1000 mm |
Gross Power |
28 kw |
32 kw |
40 kw |
Machine Weight |
3500 kg |
4000 kg |
5000 kg |
Overall Dimension |
6×2.4×4 m |
6.2×2.6×4.3 m |
6.4×28×48 m |
