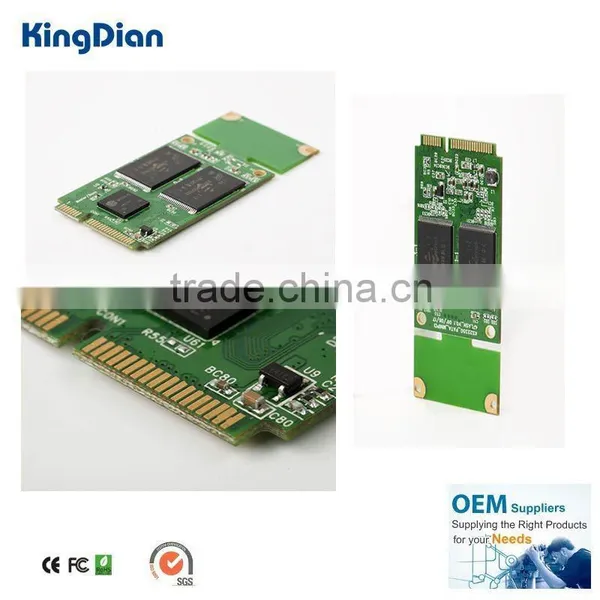

IDE Mini PCIe SSD

Name: IDE Mini PCIe SSD
Brand: KingDisk
SKU: 125945019
Availability: InStock

Shenzhen Kingdisk Century Technology Co., Ltd.

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Other, motherboard with Mini PCIe socket

Type:

Internal

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Other, motherboard with Mini PCIe socket

Type Internal

Style SSD

SSD Capacity 64GB

Size Other, 30mmX50mm or 30mmx70mm

Interface Type Other, Mini-PCIe

Speed Other, N/A

Cache Other, N/A

Brand Name KingDisk

Model Number SSD-KD-PMP.16-MS

Place of Origin Guangdong, China

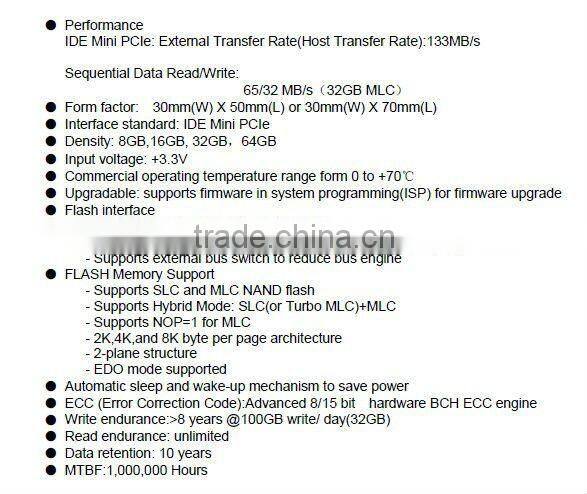

Specifications

1.IDE mPCIe SSD
2.Max Read:90MB/s *Max Write:60MB/s
3.Capacity:4GB-64GB
4.CE,FCC,RoHS
5.With 2 years warranty

General
Product model	SSD-KD-PMP.16-MS
Size	3X5/ 3X7
Interface	MINI-PCIE IDE
Storage media	MLC-NAND Flash
Capacity(GB)	4GB 8GB 16GB 32GB 64GB
Performance
Max Sustained Read	90MB/s
Max Sustained write	60MB/s
Random IOPS	N/A
Average Access time	0.2ms
Power Consumption
input Voltage	3.3v
Work power	Max 1.5W
Standby power	Max 0.5W
Reliability& Endurance
Write endurance	8years@100GBytes write and erase per day
Read endurance	unlimited
S.M.A.R.T	Support
WearLeveling Algorithm	Dynamic and static wear-leveling
Data Retention	10years at 25ºC
MTBF	1,000,000hours
ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
Bad Block Management	Auto Bad Block Management in system
Environment
Operating Temperature	0~70°C
Non-operating Temperature	–45~85°C
Shock	2,000G(@0.3ms half sine wave)
Vibration	20G(40-2000HZ)
Humidity	5-95%1
Physical Dimensions & Weight
Height(mm)	3.5mm
Width(mm)	30mm
Length(mm)	70mm or 50mm
Weight(g)	60g
Testing software&platform
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27
Testing Platform	AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3
