Home > Products > SSD Module > 32GB half length SATA SSD Module

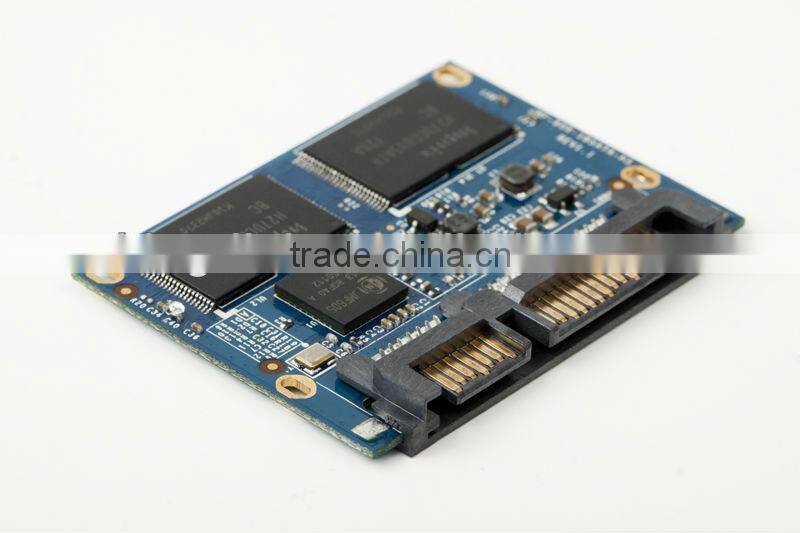

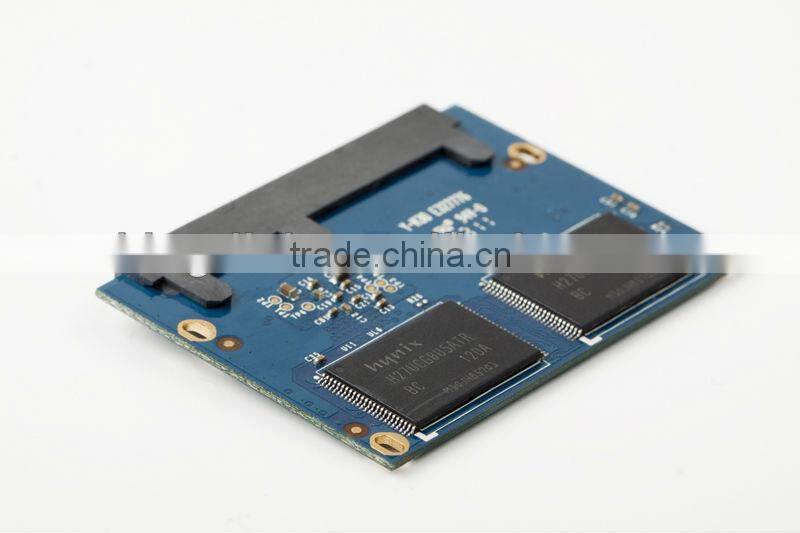

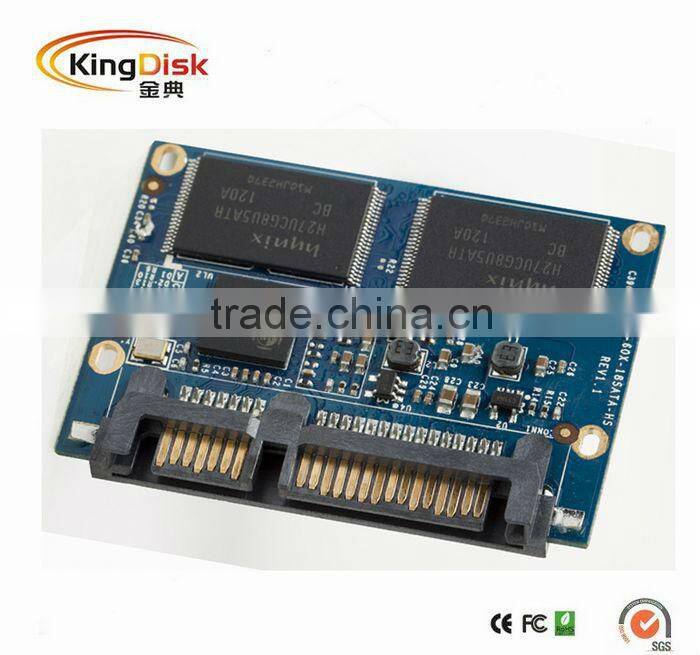

32GB half length SATA SSD Module
- 50000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
Product Details
Products Status: | Stock | Application: | Other, storage equipment | Type: | Internal |
Style: | SSD | SSD Capacity: | 8GB | Size: | Other, 1.8" |
Interface Type: | SATAII | Speed: | Other, N/A | Cache: | Other, N/A |
Brand Name: | KingDisk | Model Number: | SSD-KD-SA18.H-MJ5 | Place of Origin: | Guangdong, China |
Product Description
Specifications
1.half length SATA SSD Module 32gb2.Factory price,sample avaliable
3.Capacity:8GB-128GB
4.CE,FCC,RoHS
5.3 years warranty
Name : 1.8" half slim SATA II SSD module (Solid State Disk)
Performance :
External Transfer Rate(Host Transfer Rate):300MB/s
Form factor: HalfSlim MO-297A(54.0mm x 39.0mm x 4.0mm)
Interface standard: SATAII revision 2.6
Density:4GB, 8GB,16GB,32GB,64GB,128GB
Input voltage: 5V (±5%)
Commercial operating temperature range form 0 to +70°C
Flash management algorithm: static and dynamic wear-leveling, bad block management algorithm
Supports dynamic power management,SMART (Self-Monitoring, Analysis and Reporting Technology),NCQ,TRIM.
ECC (Error Correction Code): BCH 16bits or 24 bits ECC in 1024Bytes
Write endurance: >8 years @ 100GB write/ day(32GB)
Read endurance: unlimited
Data retention: 10 years
MTBF:1,500,000 Hours
SSD-KD-SA18.H-MJ5 | ||||||
Item | Model | SSD-KD-SA18.H-MJ5 | ||||
Interface | SATAⅡ | |||||
Performance | Capacity(GB) | 8GB(2C) | 16(4CH) | 32(4CH) | 64(4CH) | 128(4CH) |
Sustained Read | 73MB/s | 144MB/s | 150MB/s | 153MB/s | 158MB/s | |
Sustained Write | 15MB/s | 32MB/s | 64MB/s | 108MB/s | 103MB/s | |
Random IOPS | 6K | |||||
Average Access time | 0.2ms | |||||
Storage Media | NAND Flash | MLC | ||||
Power Consumption | input Voltage | 5V+/_5% | ||||
Idle | 0.5W | |||||
Active | 2.0W | |||||
Reliability& Endurance | Write endurance | 8years @100GBytes write and erase per day at 100GB | ||||
Read endurance | unlimited | |||||
Wear-Leveling Algorithm | Dynamic and static wear-leveling | |||||
Data Retention | 10years at 25ºC | |||||
MTBF | 1,000,000hours | |||||
ECC | support NCQ,TRIM 16bits or 24bits in 1024 bytes | |||||
Bad Block Management | Auto Bad Block Management in system | |||||
Environment | Operating Temperature | 0~70°C | ||||
Non-operating Temperature | -40~85°C | |||||
Ambient Humidity | 5-95% | |||||
Warranty | 2years | |||||
Available unit | Available | NO EOL | ||||
Testing Platform | CPU:Intel® Core™ i3 Duo CPU 540 @ 3.07GHz Chipset:Intel® H55 Express Chipset Memory:Kingston KVR800D2N5/2G OS:Microsoft Windows 7 Professional 64-bit AHCI Driver:Intel® Rapid Storage Technology – Intel® ICH10R SATA AHCI Controlle v9.6 BIOS Settings: AHCI Mode | |||||
Testing Software | ATTO Disk Benchmark,CrystalDiskMark v3.0 ,HD Tach RW 3.0.1.0,HD Tune PRO 3.50 | |||||
Physical Dimensions & Weight | Height(mm) | 5.0 ±0.1 | ||||
Width(mm) | 39.0 ±0.1 | |||||
Length(mm) | 54.0 ±0.1 | |||||
Weight(g) | 8+/_0.5 | |||||
The read and write speed is limited to this test platform. |
