Zif SSD Flash Module

Name: Zif SSD Flash Module
Brand: KingDian
SKU: 125943799
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Other

Type:

Internal

Shenzhen Kingdisk Century Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Other

Type Internal

Style SSD

SSD Capacity Other, 4GB-128GB

Size Other, 1.8"

Interface Type Other, ZIF

Speed Other, NAND Flash

Cache Other, N/A

Brand Name KingDian

Model Number SSD-KD-ZIF.2-MS

Place of Origin Guangdong, China

Specifications

1.zif SSD flash module
2.Max Read:90MB/s *Max Write:60MB/s
3.Capacity:4GB-64GB
4.CE,FCC,RoHS

General
Product model	SSD-KD-ZIF.2-SS
Size	1.8"
Interface	ZIF
Storage media	SLC-NAND Flash
Capacity(GB)	4GB 8GB 16GB32GB 64GB

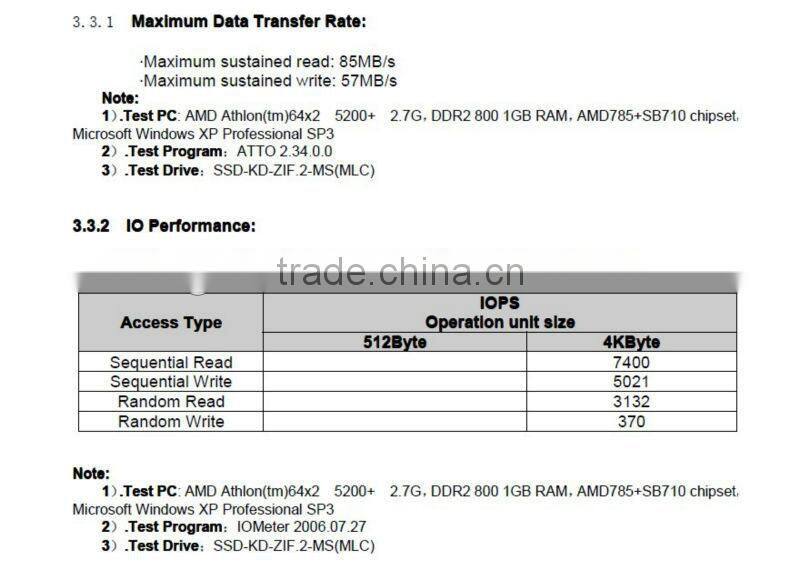

Performance
Max Sustained Read	90MB/s
Max Sustained write	60MB/s
Random IOPS	5585
Average Access time	0.2ms
Power Consumption
input Voltage	3.3v
Work power	Max 1.5W
Standby power	Max 0.5W
Reliability& Endurance
Write endurance	8years@100GBytes write and erase per day
Read endurance	unlimited
S.M.A.R.T	Support
Wear-Leveling Algorithm	Dynamic and static wear-leveling
Data Retention	10years at 25ºC
MTBF	1,000,000hours
ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
Bad Block Management	Auto Bad Block Management in system
Environment
Operating Temperature	0~70°C
Non-operating Temperature	–45~85°C
Shock	2,000G(@0.3ms half sine wave)
Vibration	20G(40-2000HZ)
Humidity	5-95%1

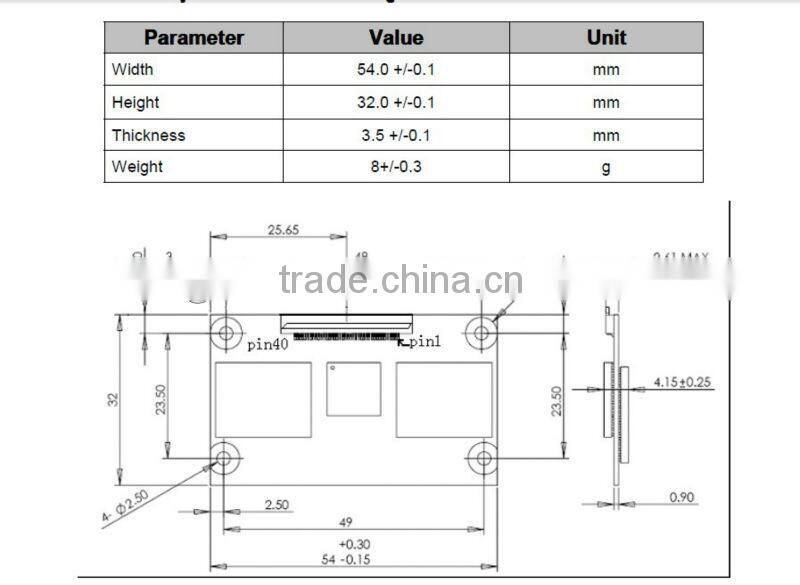

Physical Dimensions & Weight
Height(mm)	4mm
Width(mm)	32mm
Length(mm)	54mm
Weight(g)	8
Testing software&platform
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27
Testing Platform	AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3
