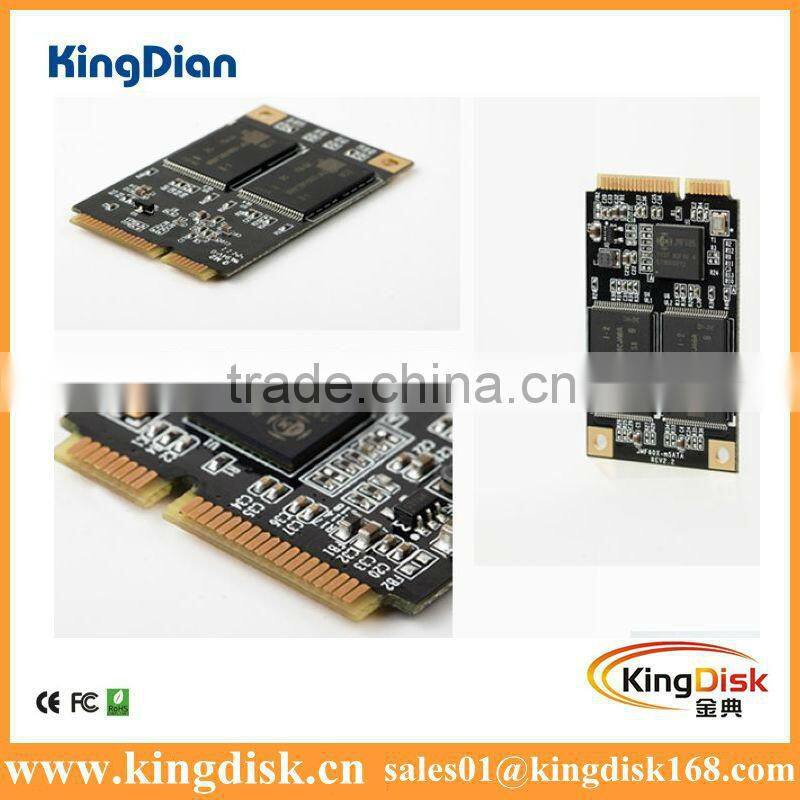

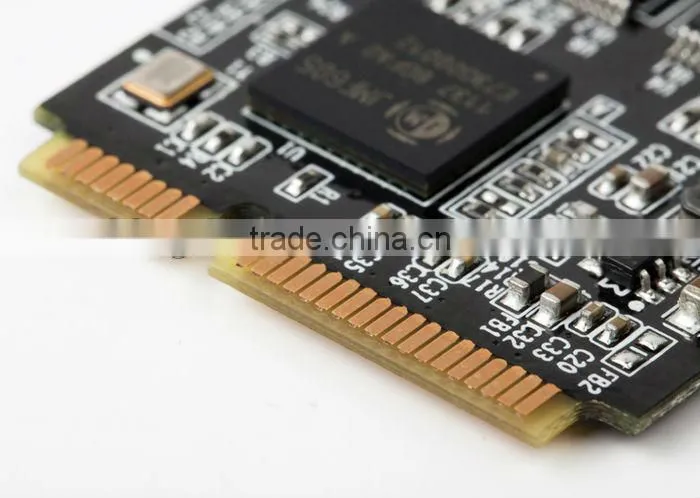

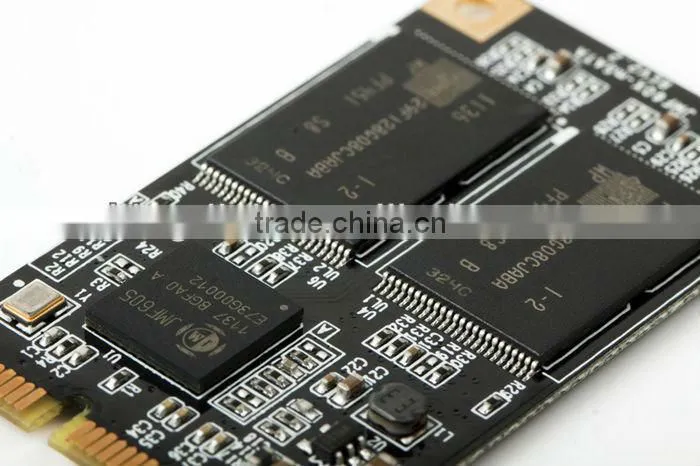

MSATA MiniPCIE Moudle Card 1GB~128GB 2 Years Warranty

Specifications

mSATA miniPCIE moudle 1GB~128GB
Max R/W:160/128MB/s
manufacturer wholesale
2 years warranty,sample is OK
CE,FCC,RHOS approve



 Product Name:mSATA miniPCIE moudle card 1GB~128GB 2 years warranty



 Performance
External Transfer Rate(Host Transfer Rate):300MB/s
 Form factor: 50MM(L) X 30MM(W)
 Interface standard: Serial ATA Revision 2.6 and Universal Serial Bus Specification Revision 2.0
 Density: 4GB;8GB;16GB;32GB;64GB;128GB
 Input voltage: 3.3V (±5%)
 Commercial operating temperature range form 0 to +75°C
 Flash management algorithm: static and dynamic wear-leveling, bad block management algorithm
 Supports dynamic power management and SMART (Self-Monitoring, Analysis and Reporting
Technology), NCQ;
 ECC (Error Correction Code): BCH ECC 16bits or 24bits in 1024Bytes
 Write endurance: >80 years @ 100GB write/ day(32GB)
 Read endurance: unlimited
 Data retention: 10 years
 MTBF:1,500,000 Hours



What do it do?



• Speed up your system with an additional memory support that can connect to your mini ITX's IDE slot.
• The high capacity EDC (Embedded Disk card) memory storage is well suited for solidstate mass storage applications offering new and expanded functionality while enabling cost-effective designs.
• It is designed to replace a conventional IDE hard disk drive, and can be plugged into a standard IDE connector commonly found in desktop or portable PC systems.



Advantages:



• High speed for storages
• High Durability
• High endurance,Shock-proof
• Free Noise
• Light weight,Portable
• High Reliability
• Long lifetime
• Wide operating temperature:0-75'C
• Small volume,Nio MOQ
• Write protection,anti-virus
• Lower Power Consumption



Features:



• High performance and high stability data storage devices
• Extremely light weight
• Reliable & performant
• shock proof, moisture proof
• shock resistance and anti jamming
• data security solution
• Nand flash memory storage medium
• CE,FCC ,ROHS,SGS.
• write protection,notch battom



Applications:



• Automobile facilities
• Medical equipments
• Military/aerospace facilities
• Notebook and UMPC,desktop.
• Gaming and Multimedia pc
• Embedded/industrial equipments and instruments
• Mobile internet devices (mid) such as pmps,pdas and smartphones
• Enterprise computing, communications equipment/networking facilities
