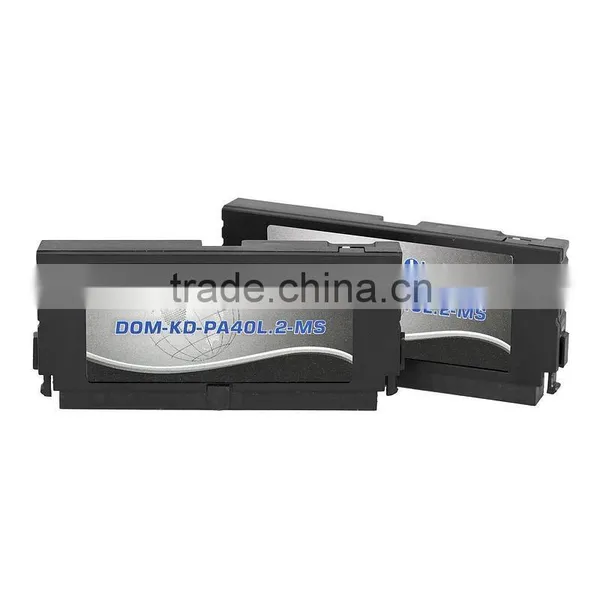

8GB 44pin IDE DOM

Name: 8GB 44pin IDE DOM
Brand: KingDian
Price: Negotiable

FOB Price

Negotiable / Piece

5 Pieces(Min.Order)

Product Details

1.8GB 44pin IDE DOM,SLC DOM
2.Max Read:41MB/s *Max Write:33MB/s
3.Capacity:2GB-32GB
4.CE,FCC,RoHS
5.With 3 years warranty

General
Product model	DOM-KD-PA44L.1-SS/DOM-KD-PA44L.2-SS
Interface	44PIN IDE Socket
Storage media	SLC-NAND Flash
Capacity(GB)	2GB 4GB 8GB 16GB 32GB
Performance
Max Sustained Read	41MB/s
Max Sustained write	33MB/s
4KB Sequential Read IOPS	4311
4KB Sequential Write IOPS	647
Average Access time	0.2ms
Power Consumption
input Voltage	3.3v/5v
Work power	0.45W
Standby power	0.0005W
Reliability& Endurance
Write endurance	8years@100GBytes write and erase per day
Read endurance	unlimited
S.M.A.R.T	Support
Wear-Leveling Algorithm	Dynamic and static wear-leveling
Data Retention	10years at 25ºC
MTBF	1,000,000hours
ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
Bad Block Management	Auto Bad Block Management in system
Environment
Operating Temperature	0~70°C
Non-operating Temperature	–45~85°C
Shock	2,000G(@0.3ms half sine wave)
Vibration	20G(40-2000HZ)
Humidity	5-95%1
Physical Dimensions & Weight
Height(mm)	22.8mm
Width(mm)	6.7mm
Length(mm)	50.7mm
Weight(g)	9
Testing software&platform
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27
Testing Platform	AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3

Shenzhen Kingdisk Century Technology Co., Ltd.: Contact nameSyong Billy; Phone86-755-85281822; Address810,Block A,shenzhen zhihuichuangxin Center ,Taoyuanju South,Qianjin 2nd Rd,Bao'an Shenzhen,Guangdong
