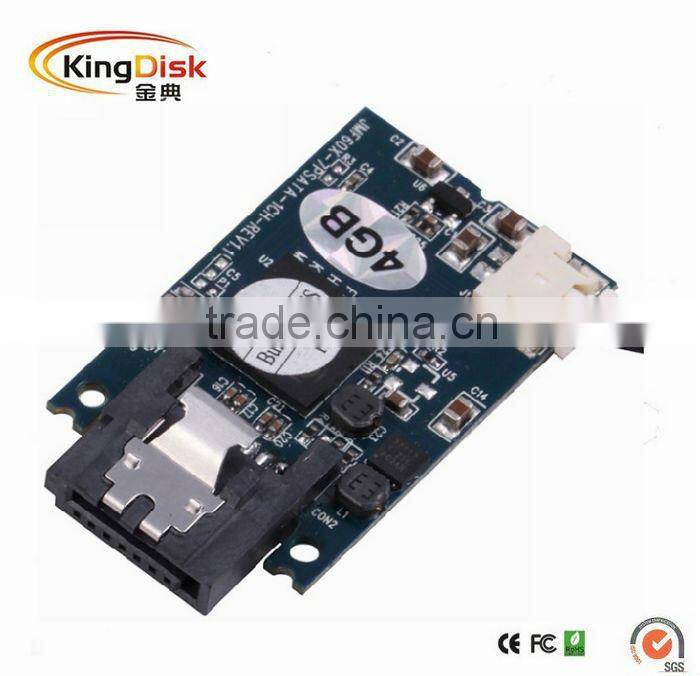

SATA DOM 8GB ~ 64GB for Thin Clients/Embeded Device

Specifications

1.SATA DOM 8GB~64GB for Embeded Device
2.Max Read:43MB/s *Max Write:37MB/s
3.Capacity:1GB-32GB
4.CE,FCC,RoHS
5.With 2-3 year

 Product Name:  SATA DOM 8GB ~ 64GB for Thin Clients/Embeded Device , Hot Sale !!!



General

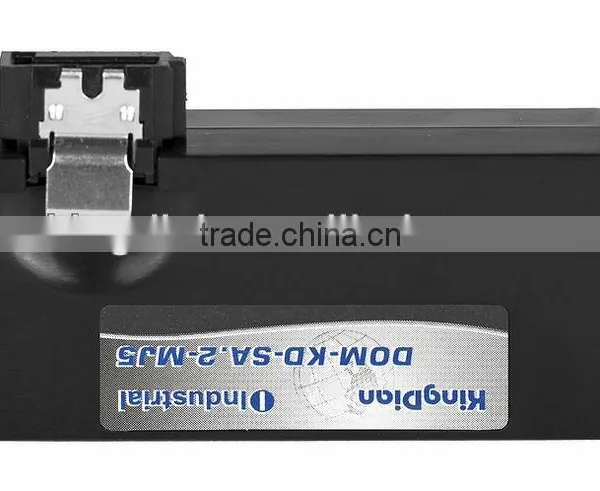

Product model	DOM-KD-SA.1-SJ5
Interface	7PIN SATA
Storage media	SLC-NAND Flash
Capacity(GB)	1GB 2GB 4GB 8GB 16GB 32GB
Performance
Max Sustained Read	43MB/s
Max Sustained write	37MB/s
4KB Sequential Read IOPS	6000
4KB Sequential Write IOPS	3400
Average Access time	0.2ms
Power Consumption
input Voltage	3.3v/5v
Work power	Max 0.75W
Standby power	Max 0.4W
Reliability& Endurance
Write endurance	8years@100GBytes write and erase per day
Read  endurance	unlimited
S.M.A.R.T	Support
Wear-Leveling Algorithm	Dynamic and static wear-leveling
Data Retention	10years at 25ºC
MTBF	1,000,000hours
ECC	Supports BCH ECC 8bits or 15bits  in 512 bytes
Bad Block Management	Auto Bad Block Management in system
Environment
Operating Temperature	0~70°C
Non-operating Temperature	–45~85°C
Shock	2,000G(@0.3ms half sine wave)
Vibration	20G(40-2000HZ)
Humidity	5-95%1
Physical Dimensions  & Weight
Height(mm)	8mm
Width(mm)	22.1mm
Length(mm)	39.4mm
Weight(g)	10
Testing software&platform
Testing Software	HDBench3.4.0.3, IOMeter 2011.07.27
Testing Platform	AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3
