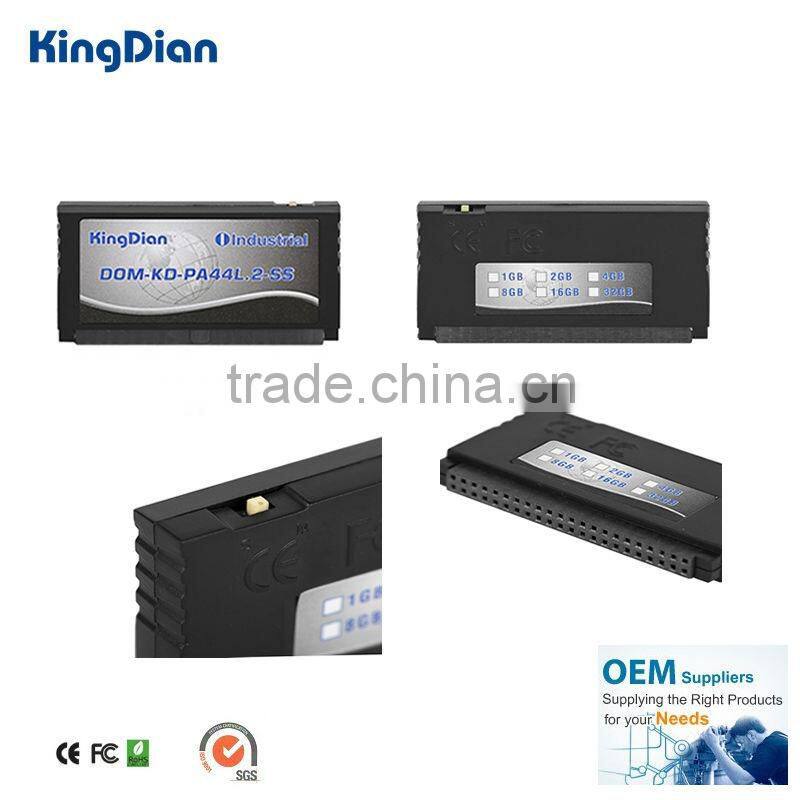

16GB 44 Pin IDE Hard Disk 2 Channels

Specifications

16GB 44 Pin IDE Hard Disk
1)Warranty:2years
2)Capacity:1GB-32GB
3)MAX substained R/W:41/33MB/s
4)Sample OK,CE,FCC,Rhos

Product Name: 16GB 44 Pin IDE Hard Disk 2 Channels !!!



General
Product model	DOM-KD-PA44L.1-SS/DOM-KD-PA44L.2-SS
Interface	44PIN IDE Socket
Storage media	SLC-NAND Flash
Capacity(GB)	2GB 4GB 8GB 16GB 32GB
Performance
Max Sustained Read	41MB/s
Max Sustained write	33MB/s
4KB Sequential Read IOPS	4311
4KB Sequential Write IOPS	647
Average Access time	0.2ms
Power Consumption
input Voltage	3.3v/5v
Work power	0.45W
Standby power	0.0005W
Reliability& Endurance
Write endurance	8years@100GBytes write and erase per day
Read endurance	unlimited
S.M.A.R.T	Support
Wear-Leveling Algorithm	Dynamic and static wear-leveling
Data Retention	10years at 25ºC
MTBF	1,000,000hours
ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
Bad Block Management	Auto Bad Block Management in system
Environment
Operating Temperature	0~70°C
Non-operating Temperature	–45~85°C
Shock	2,000G(@0.3ms half sine wave)
Vibration	20G(40-2000HZ)
Humidity	5-95%1
Physical Dimensions & Weight
Height(mm)	22.8mm
Width(mm)	6.7mm
Length(mm)	50.7mm
Weight(g)	9
Testing software&platform
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27
Testing Platform	AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3







What do it do?

• Speed up your system with an additional memory support that can connect to your mini ITX's IDE slot.
• The high capacity EDC (Embedded Disk card) memory storage is well suited for solidstate mass storage applications offering new and expanded functionality while enabling cost-effective designs.
• It is designed to replace a conventional IDE hard disk drive, and can be plugged into a standard IDE connector commonly found in desktop or portable PC systems.

Advantages:

• High speed for storages
• High Durability
• High endurance,Shock-proof
• Free Noise
• Light weight,Portable
• High Reliability
• Long lifetime
• Wide operating temperature:0-75'C
• Small volume,Nio MOQ
• Write protection,anti-virus
• Lower Power Consumption

Features:

• High performance and high stability data storage devices
• Extremely light weight
• Reliable & performant
• shock proof, moisture proof
• shock resistance and anti jamming
• data security solution
• Nand flash memory storage medium
• CE,FCC ,ROHS,SGS.
• write protection,notch battom

Applications:

• Automobile facilities
• Medical equipments
• Military/aerospace facilities
• Notebook and UMPC,desktop.
• Gaming and Multimedia pc
• Embedded/industrial equipments and instruments
• Mobile internet devices (mid) such as pmps,pdas and smartphones
• Enterprise computing, communications equipment/networking facilities

If you're interested in our products or for any enquiries of our items,pls freely contact me/email me. Thanks.
