X-ray BGA Inspection Machine Shuttle Star X3500A

X-ray BGA Inspection Machine Shuttle Star X3500A thumbnail-1
X-ray BGA Inspection Machine Shuttle Star X3500A photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Shuttle Star
Model Number:
3500A
Contact Supplier Request Quote Chat Now
Shenzhen Shuttle Star Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Shuttle Star
Model Number 3500A

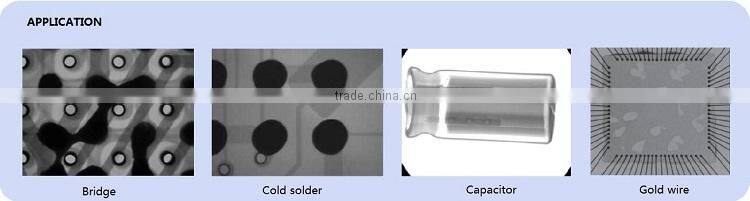

X-ray BGA inspection machine testing PCB motherboard, Lithium battery, IC Bonding, BGA Soldering and more. Used for BGA, CSP,LED,Flip Chip,Semiconductor,Battery Industry, Small Metal Casting,Electronic Connector Module,Aerospace  Components,Photovoltaic Industry and other special industry.



Application:
1. Semiconductor: Inner structure of IC, FC, CSP package inspection
2. Aluminum casting relates to cars, bubble &fissure of rubber and resin products inspection
3. Short & open circuit in BGA package, bubble area in BGA inspection and auto-judgment
4. Aerospace and military, aerofoil, bullet etc.
5. Troche in medicine, FRP in chemical products, resin, ceramics.
6. Lithium battery, electronic components (capacitor, resistor, diode & audion, led etc.) inspection

X-ray BGA inspection machine shuttle star X3500AFeatures:
1. Imported Micro X-Ray tube with original packaging(100/130Kv closed tube), highly-sensitive image intensifier, 1.3 million pixels industrial digital CCD camera, able to detect item <5μm,display clear image.
2. Adjustable high power geometric & system magnification, easy to find out tiny defect with high detecting speed.
3. System navigation chart, navigating rapidly and positioning accurately.
4. Observe object at ±70°, detecting from particular angle, easy to detecting inner structure
5.Five axis moving coordinately, with function of CNC auto-detects in quantity, suitable for detecting in large quantity with high accuracy.
6. 23" digital image-special LCD monitor, displaying large and high definition image.
7. Multi-function software system, free maintenance and update for life.
8. Complete seal lead cabinet, comply with the provisions of the international and domestic X-ray safety standards.

Specification:

X-ray Tube
Tube Type: Sealed tube
Tube Voltage: 90KV
Tube Current: 0.15mA
Tube Focus Size: 5um
Cooling Mode: Air cooling
Geometric magnification: 125 times
System magnification: 1200 times
Operation mode
2 operation model options: Mouse and keyboad
TV System
CCD Industrial Camera: 130 mega pixel, 10bit gray scale
Resolution: 110 lp/cm
Working Table(600mm×410mm)
Axis X: 500mm
Axis Y: 410mm
Axis Z1: 325mm
Axis Z2: 300mm
Axis θ: ±60°
X-ray Cabinet
Dimension: 1170mm×1090mm×1860mm
Weight: 1100Kg
X-ray Leakage: 1uSv/h or less
Power Supply: AC220V 50/60Hz
Safety

Self protecting function:

 All electronic parts are strictly protected, without any operation of the euipment, X-ray tube power off automaticlly and stay in self protection mode
Safety interlock function: Observation window, side door, back door are all using highly sensitive limit switch, once open, X-ray power off immediately to ensure safety
Radiation Safety Standard: <0.5mR/hr, comform FDA standard
Electromagnetic lock protection: Obervation window can not be opened when X-ray is on
Soldering defect auto-regnition
Solder bridge Preset NG image, auto-recognize through solfware comparison
Cold solder Preset NG image, auto-recognize through solfware comparison
Solder hole Preset NG image, auto-recognize through solfware comparison
False solder Preset NG image, auto-recognize through solfware comparison
