Best Price! Infrared BGA Rework Station SP360C With K-type Thermocouple and Free Reballing Kits
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Shuttle Star
Model Number:
SP360C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hong kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Price! Shuttle Star SP360C for Xbox 360 PS3/PS4 Motherboard With Hot Air and Infrared SystemNegotiableMOQ: 1 Set -
Easy to Operate!! BGA Rework Station Shuttle Star Sp360c With Touch Screen Interface and Infrared PreheaterNegotiableMOQ: 1 Set
-
Professional BGA Soldering Station SP360C With Free Stencils Bga Reballing Kit and Solder BallNegotiableMOQ: 1 Set
-
High Quality Low Price! Infrared BGA Rework Station SP360C for BGA Soldering and DesolderingNegotiableMOQ: 1 Set
-
Manufacture to Customer! Shuttle Star Soldering Station BGA Rework System With 3 Temperature ZonesNegotiableMOQ: 1 Set
Place of Origin
China
Brand Name
Shuttle Star
Model Number
SP360C
Voltage
110V/220V
Current
10A
Rated Capacity
5100W
Rated Duty Cycle
100%
Dimensions
650*500*600mm
Weight
36kg, 36Kg
Usage
BGA Rework
Certification
CE ISO
After-sales Service Provided
Overseas service center available

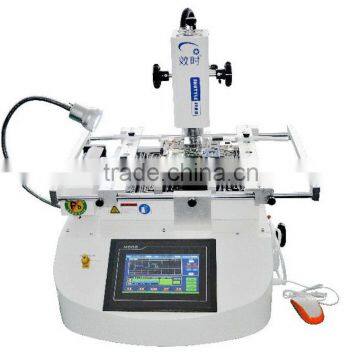

Best price! Infrared BGA rework station SP360C with k-type thermocouple and free reballing kits
Features
- Made of high quality heating material; desoldering and soldering procedures of BGA are precisely controlled;

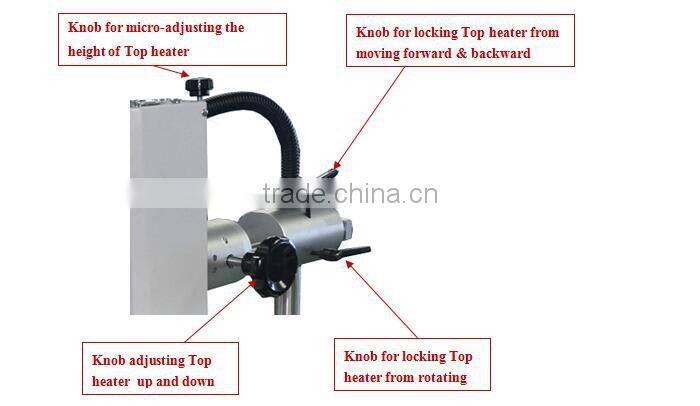

- Movable heating head, which is able to move freely horizontally, easy to operated;

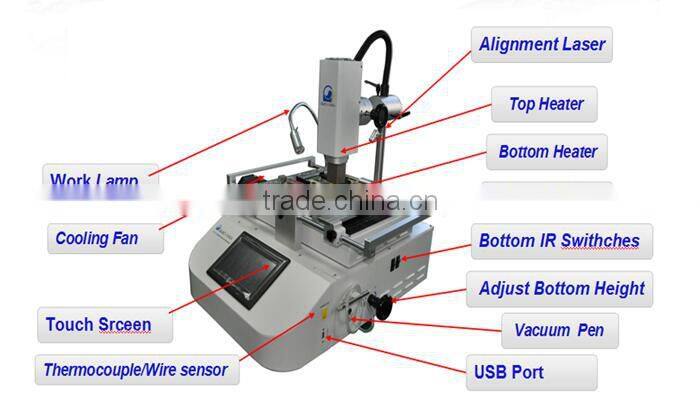

- Embedded industrial computer, PLC control, real-time profile display, able to display set profile and practically tested profile; big size screen, easy to operate;
- Profile saving no limit in this industrial computer, can analyze the two practically-tested profiles;
- The temperatures of the upper and lower hot air heaters can be precisely controlled according to their specific temperatures. The infrared constant temperature heating zone at the bottom area and the appropriate temperature-control settings make the rework safer and more reliable;
- The supports for the BGA soldering supporting frame are micro-adjustable to restrain local sinkage;

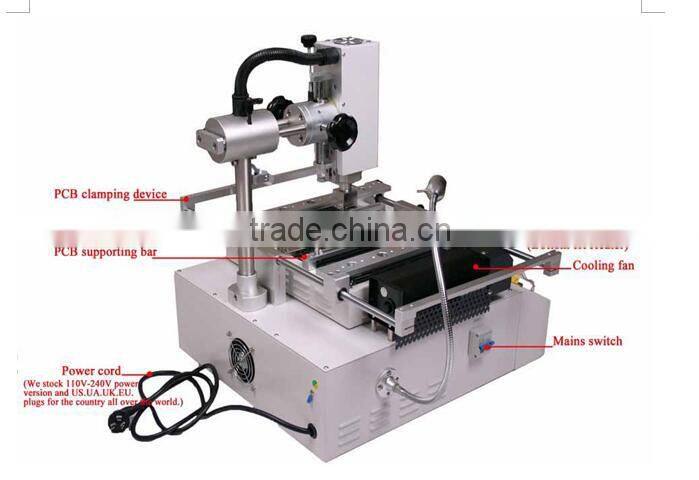

- Powerful cross flow fans cool the lower heating area rapidly;

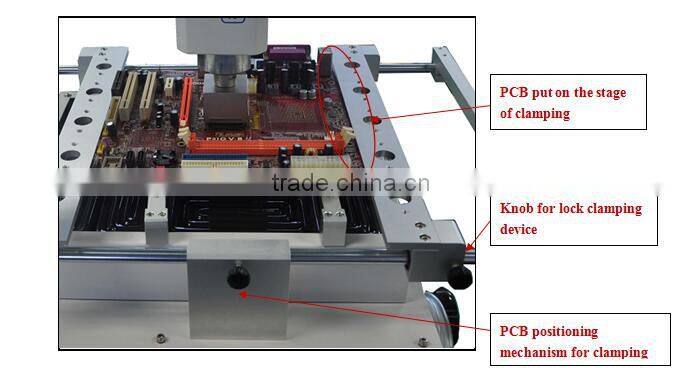

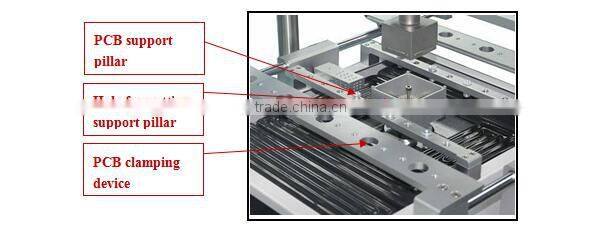

- The adjustable PCB positioning support, onto which the special fixtures for alloyed board could be installed, enables easy and fast positioning of the PCB board;
- Buzz after soldering is finished or desoldering; Hand vacuum pen is adjustable for removing BGA;
- Both the upper and lower parts are equipped with over-temperature alarming and protection apparatus;

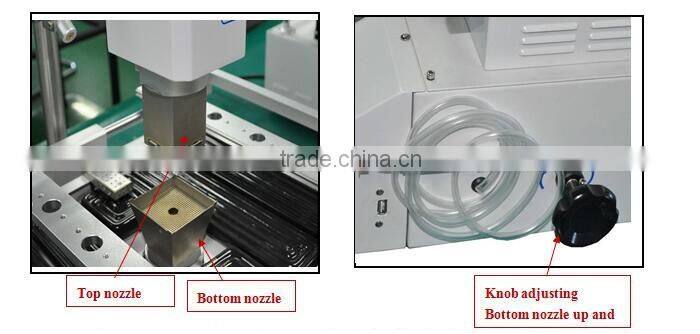

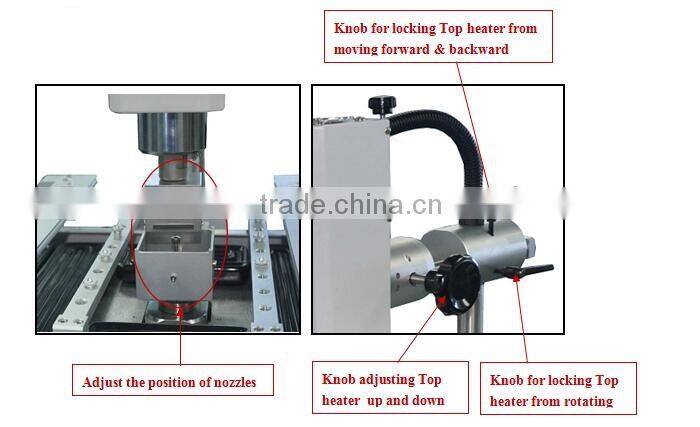

- With different alloy hot gas nozzles, easy to replace. It could be tailored as per the specific requirements;
- The integrated design of machine and chassis is room-saving. could be altered to instrument-control;
- The software can be updated to auto-profile in future by USB, no need to set profiles.
Specification
| Item | Qty. |
| Max. PCB Size | W430×D350mm |
| Applicable BGA Size | 7*7~55*55mm |
| Max. BGA weight | 80g |
| Max. PCB Thickness | 3mm |
| Top Heater | 350°c |
| Bottom IR Heater | 350°c |
| Lower Heater | 300°c |
| Placement Precision | 0.01mm |
| Temperature Control | 16 sections of programmable temperature control |
| Power | Single-phase 220V, 50/60Hz |
| Machine Size | L650×W500×H600 |
| Machine Weight | Appox. 36Kg |
Packaging & Shipping
Packaging: Standard Wooden Case with Machine fixed inside
Delivery: Delievery within 1 week after get payment
Our Services
- 1 year warranty
- We offer free training on operating personnel and service within the warranty
- We free lifelong training for maintenance, if any question, assistant videos are also provided in after-sale service
- Under warranty, we send spare parts to the customer and afford all the cost and freight if any spare part is broken
Company Information
Shenzhen Shuttle Star Technology Co., Ltd. is one of the earliest professional BGA rework station manufacturers in China. Ever since founded in 2000, the product structure and performance are improved constantly according to the market demand and the product series has covered the from high-end to low-end and can provide complete solutions for the BGA reparation operation according to the special demand of customer.
