Gear Electrical ATV/UTV Winch NVT3500(3500lbs)

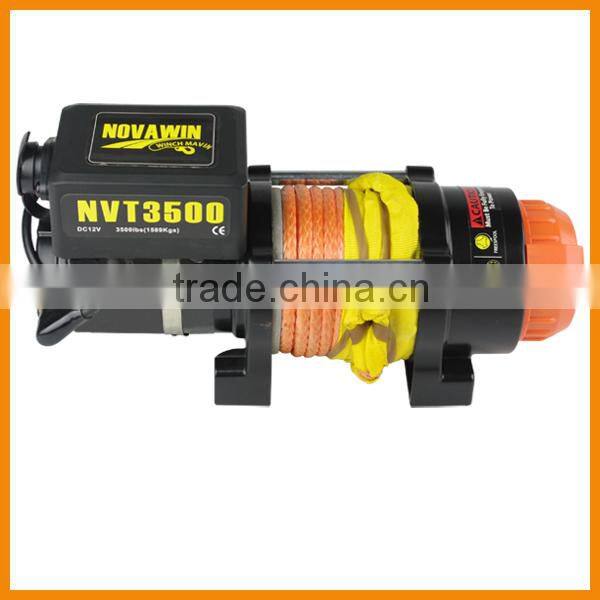

Gear Electrical ATV/UTV Winch NVT3500(3500lbs) photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
NOVAWIN
Model Number:
NVT3500
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name NOVAWIN
Model Number NVT3500
Power Source Electric
Application ATV/UTV
Capacity 3500lbs(1589kgs)

Specifications

Portable ATV/UTV Winch NVT3500
1.Pulling capacity 3500lbs(1589kgs)single line.
2.DC12V
3.High Quality.
4.Reasonable price

Portable ATV/UTV Winch NVT3500(3500lbs)

Gear Electrical ATV/UTV Winch NVT3500(3500lbs)


PERFORMANCE SPECIFICATIONS

Single line rated pull:

3500lb (1589kg)

Motor(permanent magnet):

DC 12V 1.1HP/0.85KW

Gear train:

3-stage planetary gear

Gear ratio:

180:1

Clutch:

Sliding ring gear

Braking action:

Automatic in the drum

Fairlead:

4-way roller fairlead

Overall dimensions:

13.5"x4.53"x4.76"(340mm x113mm x121mm)

Drum size:

1.73"x3.15"(44mm x 80mm)

Wire rope:

13/64"x45'(4.8mm x 14m)

Bolt pattem: 4.9"x3"(124mm x 76.2mm)

Net weight:

26.2 lbs(12.0kgs)







Line speed and motor current (first layer)

Line pull(lbs/kgs) Line speed(FPM/MPM) Motor current(AMPS)
 0/0 14.1/3.8 26.0
 1000/454 11.5/3.5 65.0
 1500/680 10.8/3.3 95.0
 2500/1135 8.9/2.7 110.0
3500/1589 5.9/1.8 185.0





Line pull and cable capacity

Layer of cable Rated line pull per layer(lbs/kgs) Cable capacity per layer(ft/m)
1 3500/1589 7.5/2.3
2

2905/1319

16.7/5.1
3 2484/1128 28.2/8.6
4 2169/985 40.7/12.4
5 1926/874 45.9/14



Take a walk around our production workshops for NVT3500



Gear Electrical ATV/UTV Winch NVT3500(3500lbs)

                                                Parts processing equipment

Gear Electrical ATV/UTV Winch NVT3500(3500lbs)

                                                                         6 Professional production line

Gear Electrical ATV/UTV Winch NVT3500(3500lbs)

                                                                            DynamicStatic Test Center

Gear Electrical ATV/UTV Winch NVT3500(3500lbs)

                                                                             well managed warehouse

Gear Electrical ATV/UTV Winch NVT3500(3500lbs)

                                   Have taken part in many exhibitions since 2007 Gear Electrical ATV/UTV Winch NVT3500(3500lbs)





                                          Domestic and international patent and citifications
