Specifications
Extruder machine:1.SJSZ45/95 with 90kg/h
2.Use PVC powder
3.Plastic extruder machine
4.Brand:Siemens,ABB,Ormon
Extruder machine:

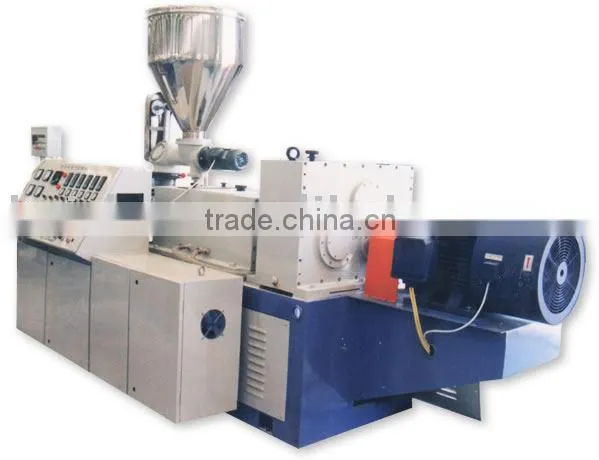

SJSZ series of conical twin screw extruder is designed with much profit,such as high output,low power consumption,less friction,lower sheating rate and forced extruding.It is equipped with autocontrolled temperature,degassing unit,direct-current speed regulation.SJSZ extruder is suitable for processing PVC dry blend power into pipes,profiles and sheets etc.
Main Technical Parameters:
Item |
SJSZ45/95 |
SJSZ51/05 |
SJSZ65/132 |
SJSZ80/156 |
SJSZ92/188 |
Diameter of screws(mm) |
45/95 |
50/105 |
65/120 65/132 |
80/156 |
92/188 |
Quality of screws |
2 |
2 |
2 |
2 |
2 |
REV direction of screws |
Heterodromous , extrorse |
||||
REVspeed of screws(r/min) |
1-38 |
1-40 |
1-34.7 |
1-36.9 |
1-38 |
Effective length of screw(mm) |
989 |
1050 |
1440 |
1800 |
2500 |
Main motor(kw) |
15 |
27 |
37 |
55 |
110 |
Barrel heating power(kw) |
11.5 |
18 |
24 |
36 |
68 |
Productivity(kg/h) |
90 |
150 |
250 |
450 |
600 |
Centre height of machine(mm) |
1000 |
||||
Net weight(kg) |
2500 |
3500 |
4000 |
5000 |
8000 |
Dimension (L*W*H) |
3235*1100 *2157 |
3620*1050 * 2157 |
4235*1520* 2450 |
4750*1550* 2460 |
6000*1600* 2500 |
