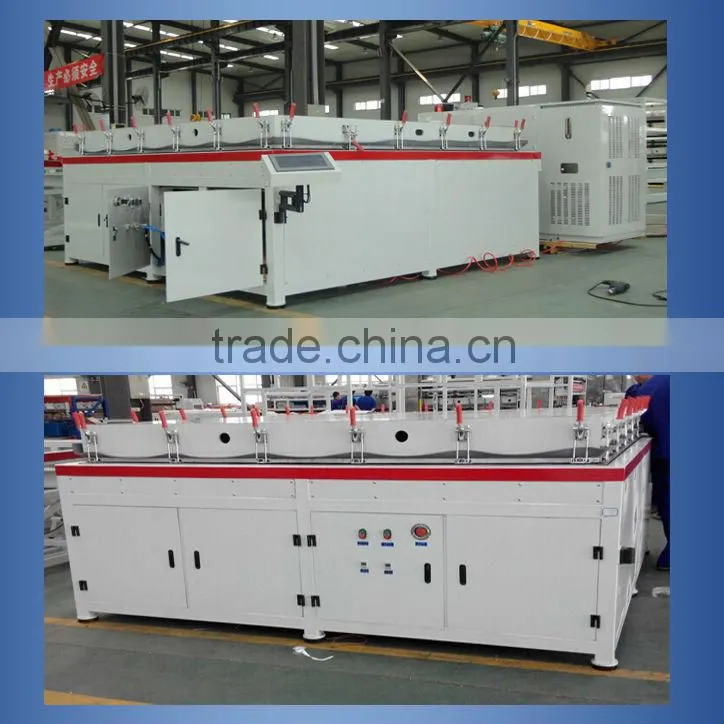

Solar Panel Laminator for Large Size Module

Solar Panel Laminator for Large Size Module photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Yiheng Technology(for solar laminator)
Model Number:
TCTY-G1-8
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Yiheng Technology(for solar laminator)
Model Number TCTY-G1-8
Type Other, solar panel laminator

Specifications

Semi-auto Solar panel laminator
Applied in semi solar module production and laboratory



Product Description

 Semi-auto Solar Panel Laminator

2200*2200mm Solar Panel Laminator in Solar PV Prodution Line

for manual&semi-auto Production line (Manual&semi-auto Solar module producing line Turkey project)



Solar Panel Laminator

Lamination Area:2200*1100mm;2000*1200mm;2200*1750mm;2200*2200mm;2200*2600

REMARKS: We can design and manufacture all kinds of solar Panel laminator according to customer requirements.

Operation & Control

Oil heating. Special steel structured heating platen.Hole lines inside the heating platen to increase better temperature uniformity.

Laminating Process is composed to three sections with adjusted speed and pressure for each.

Professional oil pump supplier to ensure oil heating and pumping stable.

Advanced touch screen platform makes it more intuitive to operate, respond more quickly, performance more stable. It visualizes a diagram with all vacuum and temperature values.

PID intelligent temperature control system.

Troubleshooting directly on the touch screen with alarm message

Silicon membrane change in less than 30 minutes with quick clamp system in working temperature

This solar laminator has very little need of maintenance and all maintenance work can be performed by the operator without calling Yiheng’s technicians.



Main Specification Parameter



Type

Laminating Area

Temperature

Uniformity

Temperature

Precision

Power

Temperature

Range

Weight

Air Supply

TCTY-G1-8

2200×2600mm

±2 °C

±1 °C

37KW

30~160°C

9T

0.6-1.0Mpa

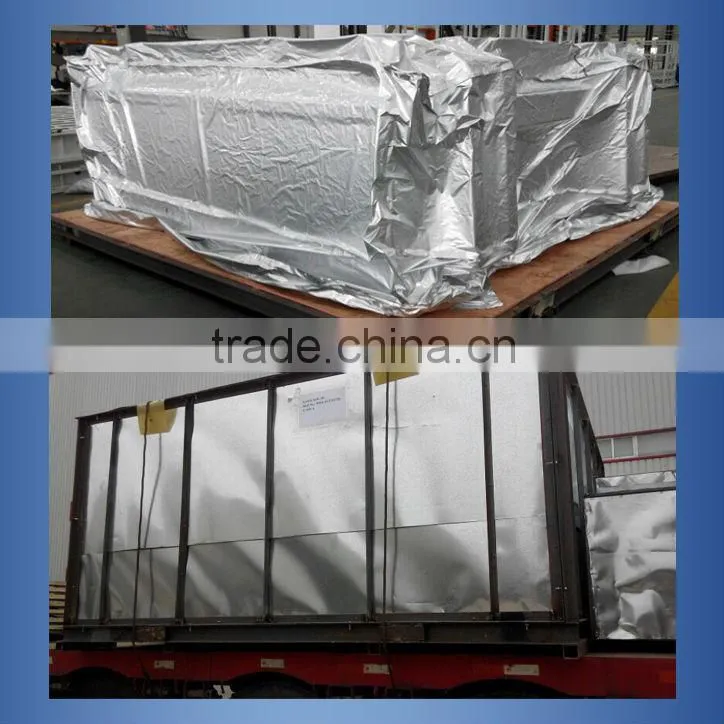

Packaging & Shipping
