Solar Panel Assembly Line Equipment

Name: Solar Panel Assembly Line Equipment
Brand: YIHENG
Price: USD $10,000 - 150,000 / Set

FOB Price

USD $10,000 - $150,000 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port TIANJIN SEAPORT CHINA
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Hebei, China	Brand Name:	YIHENG	Model Number:	YHW012
Type:	Other, Solar Panel Assembly Equipment

Product Description

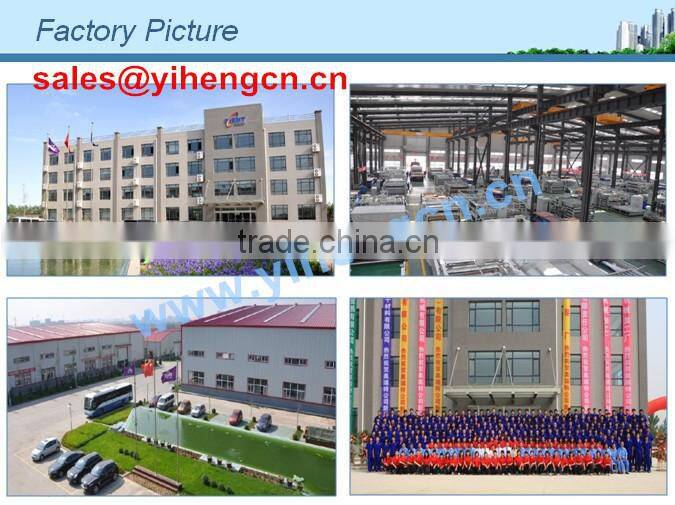

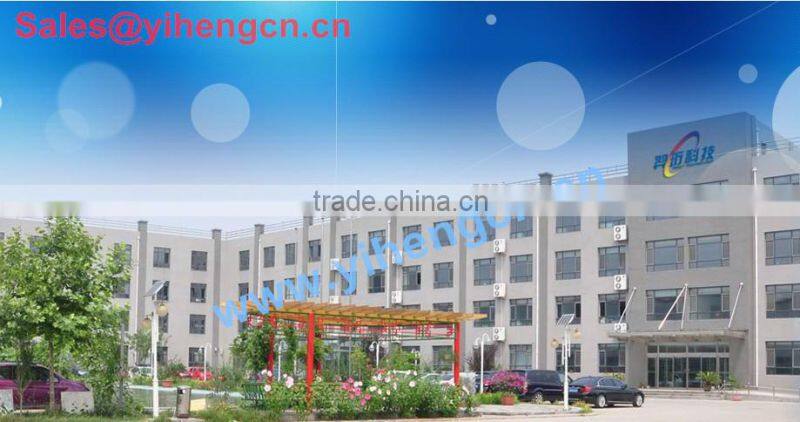

Company Introduction:

Hebei Yiheng Science Technology Co., Ltd(Formerly named as Qinhuangdao Orient Technology Co., Ltd) is located in the beautiful coastal city Qinhuangdao, was established in Year 2000, is the first High-tech Enterprise of researching & development Solar Module Assembling Equipment. Yiheng devote on solar module equipment development and production; basic developing aim at environment protection related new hi-tech equipment.

Yiheng accumulated 52 items to apply for a patent has been authorized to 49 items, more than any other competitors in the Industry. Yiheng had passed the ISO9001 quality management system certification in 2004 and CE certification. In 2006, 2008, Yiheng has been identified as a national high-tech enterprises, in 2014 passed the TUV quality system certification, which is much better for extending International Market.

Equipment Main Parameters:

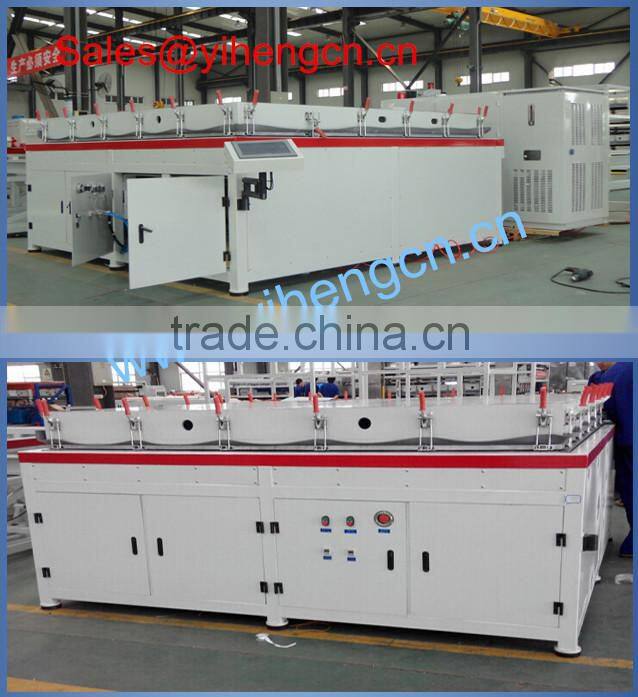

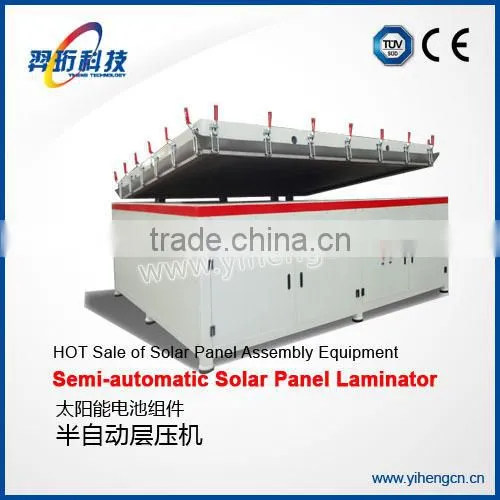

1. Semi-auto Solar Module Laminator

Equipment Model	TCTY-G1-4/4A/6	Power Supply	AC380V, 3 phase 5 Lines
Lamination Size	2200×1100mm 2000×1200mm 2200×2200mm	Dimension	2605×2805×1360mm 2405×2905×1360mm 3905×2605×1360mm
Weight	4T 7.5T	Power	35KW 37KW
Compressed Air Flow	0.4—0.8m³/min	Compressed Air Pressure	0.4—0.8Mpa
Heating Mode	Oil Heating	Temperature Control	PLC Intelligent Control
Laminating Time	2-10 Minutes	Vacuuming Time	5-6 Minutes
Temperature Precision	±1℃	Temperature Uniformity	±2℃
Temperature Range	±160℃	Module Height	25mm
Pumping Speed	30L/S 70L/S	Air Supply	0.6-1.0MPa

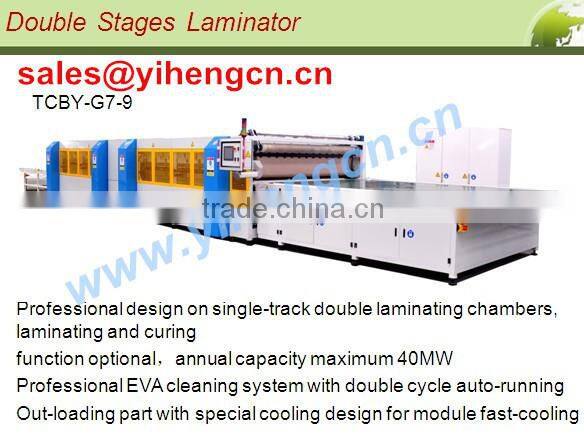

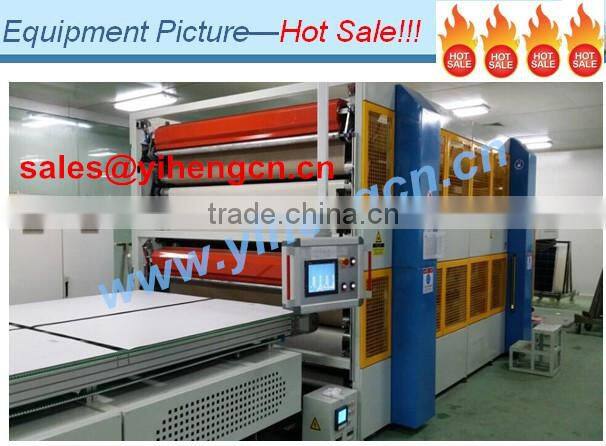

2. Full Automatic Solar Module Laminator

Equipment Size	TCAY-G7-6/TCBY-G7-9 TCDY-G7-9/TCZY-G7-9	Power Supply	AC380V, 3 phase 5 Lines
Lamination area	2200×2200mm 3600×22002mm 3600×22002mm 3600×2200mm	Dimension	8100×4375×1500mm 17200×3370×1685mm 12700×3400×2960mm 12450×3238×1655mm
Weight	10T/26T/28T/17T	Power	40KW/115KW/120KW/60KW
Compressed Air Flow	0.4—0.8m³/min	Compressed Air Pressure	0.4—0.8Mpa
Heating Mode	Oil Heating	Temperature Control	PLC Intelligent Control
Laminating Time	2-10 Minutes	Vacuuming Time	5-6 Minutes
Temperature Precision	±1℃	Temperature Uniformity	±2℃
Temperature Range	±160℃	Module Height	25mm
Pumping Speed	70L/S	Air Supply	0.6-1.0MPa

Equipment Features:

1. Heating Mode: Oil heating. Special steel structured heating platen, protected by patent. Hole lines inside the heating platen to increase better temperature uniformity.

2. Control Mode: PLC Control, Special Design. Interface both in Chinese and English. Interface both in Chinese and English.

3. Equipment Structure: Strong design for the whole equipment to satisfy long time job under high temperature and high pressure.Special sealing design to protect rubber sheet wrinkling.

4. Safe operation: Protection Lock ensures cover safety when meeting accident. Emergency Button ensures the cover keep opening safely when power supply cut off in accident.

5. Alarming Systems is including Over Temperature Alarm, Oil Lack Alarm, Lower Vacuum Alarm, and other alarm function.
