Home > Products > RFID Reader > ISO Size WG26 Mini Magnetic Card Rfid Handheld Reader Can Insert Sim Card

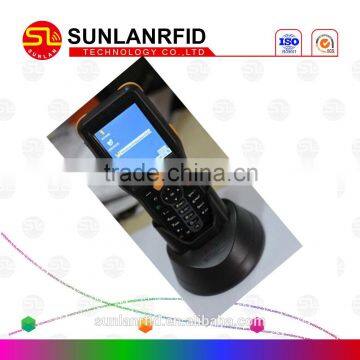

ISO Size WG26 Mini Magnetic Card Rfid Handheld Reader Can Insert Sim Card
- shenzhen
- T/T Credit Card
You May Like
-
Magnetic Card Can Insert Sim Standard Size WG26 Mini Rfid Handheld Reader
-
GPRS SIM SlotWG26 Mini Magnetic Card Rfid Handheld Reader Insert Sim Card
-
USB Communication Port BRugger Mobile Writer MagneticHandheld Rfid Reader
-
Handheld Rfid Reader Rugger Mobile Writer Smart Magnetic GPRS SIM card slot
-
28 grapheme NumberRugger Mobile Handheld Rfid Reader Writer Smart Magnetic Card
-
RAM 64-1 28M BRugger Mobile Writer Smart Magnetic Card Handheld Rfid Reader
Product Details
| Place of Origin | Guangdong, China | Brand Name | Sunlanrfid | |
| Model Number | Sunlan RFID Reader |
Product Description
ISO Size WG26 Mini Magnetic Card Rfid Handheld Reader Can Insert Sim Card
Product parameter
| parameter | ||
| SUMSANGARM920T@400MHz | ||
| Microsoft Windows CE 5.0(many languages of operate system) | ||
| RAM | 64 MB or 1 28MB | |
| ROM | 128MB or 256MB or 512MB (The standard of deploy is 128MB ) | |
| type | TFT-LED QVGA Touch Screen of LCD colour | |
| Resolution | QVGA(240x320) | |
| Screen of size | 2.8 inch | |
| soft keyboard | English,spell, write of hand | |
| hard keyboard | 28 grapheme and number | |
| scan start key | middle+side key | |
| standard of deploy | 0.5 w loudspeaker,trembler | |
| standard of deploy | GPRS SIM card slot | |
| standard of deploy | Micro SD/TF slot | |
| standard of deploy | USB Communication port | |
| selection of deploy | RS232, RS485 Communication port | |
| Expand | WIFI:802.11b/g wirelesss communicate function, Communication of speed is 54MB/second, CISCOAF is supporting completely, as well as safety code | |
| Expand | BLUETOOTH V2.1+EDR | |
| Expand | GPS fix: channel 48, fix precision less than 2.5m,speed precision less than 0.01m/s | |
| Expand | Low frequency(125KHz/134.2KHz)/high frequency(13.56MHz)/UHF(860-960MHZ)RFID( read and write) | |
| Expand | Wireless network communication of GSM/GPRS module,support of GSM/GPRS Class10,GSM27.10 many road used | |
| Expand | INFRARED Communication(remote meter reading of electric power and set the parameter | |
| Operate source | 3.7V1800mAH lithium ion battery of charging(battery cells is imported) or 3.7V 3200mAh lithium ion battery of charging | |
| Work time | Used: more than 8 hours( Looking for your what used it on environment) | |
| IP54 | ||
| Designed of ergonomics | 178(long)x66(wide)x31(thick)mm | |
| 300g( contain battery) | ||
| Operate temperature | -15~+50℃ | |
| Store temperature | -20~+60℃ | |
| Operate humidity | Relative humidity 5-95%( no condensation) | |
| Store humidity | Relative humidity 5-95%(no condensation) | |
| The anti-knock high of fall to the ground | It can bear many pounds that is from 4 inch(1.2 m) of high to ground | |
| Operate system | Misrosoft Windows CE5.0 | |
| Support language | C++,C#,.NET | |
| Develop tool | Visual studio 2005/2008 support software development kit(SDK) | |
| UHF RFID(deploy of you selected) | High frequency RFID(deploy of you selected) | |
| Work frequency(840-960MHz make of your required) | scanning frequency | 13.56M |
| European frequency(865-868MHzETSI EN 302 208) | standard of agreement | 14443A/14443B/15693 |
| Standard of others national frequency(make of your required) | read and spot ranges | 0mm-80mm (basic of your tag) |
| EPC C1 GEN2/ISO18000-6C(6B) | Low frequency RFID(deploy of you selected) | |
| Read and spot ranges of from 80cm to 250cm(you can selected both of one) | Work frequency | 125KHz/134.2KHz |
| Standard of agreement | 11784/85,14223 | |
Small antenna of level four (4dBi)(2dBi) | Frequency | Support 134.2KHz TI or 125KHz HitagS or 125KHz Tk5567 or 125KHz Em4100 or 125KHz EM4469 and so on |
USB2.0(standard of deploy), RS-232(deploy of your selected) | Read and spot ranges | 0mm-80mm(basic of your tag) |
| Scanning(deploy of your selected) | INFRARED Communication (deploy of your selected) | |
| Laser scanners(Symbol read head) | Middle frequency of INFRARED | 38KHz |
| 10cm-70cm(basic of your tag) | Incident angle | ±45℃ |
One-dimensional: ode128. EAN-13,EAN-8,Code39,UPC-A, | Send and receive ranges | 0-10m (Indoor) |
| Material | ABS Silicon
|
| Avilable Size | dimensions:17/33mm,48mm,55mm, 66mmor customized
|
| weight | Silicon: 11g+/-0.5g(according to wristban shape)
|
| Pinting | Silk-screen printing
|
| Color | Free choice
|
| Frequency | 125Hkz, 13.56Mhz, 915Mhz Optional
|
| Standard | ISO 7815/ISO 14443A/ISO156, ISO18000-6C/ISO18000-6B/ISO18000-6C
|
| 125kz Chip Available: | EM4100, EM4205, EM4305, EM4450, TK4100, T5577, Hitag 1,Hitag 2, HTS256, HTS2048, Hitag UR064 or other customized chips |
| 13.56Mhz Chip Available: | MF 1K S50/ MF 4K S70/ MF Ultralight
|
ICODE SLI-X(1024bits)
| |
ICODE SLI(1Kb)
| |
ICODE SLI-S(2Kb)
| |
MF Desfire EV1 4K
| |
MF Desfire EV1 8K
| |
Tag-it HF-1 Plus(TI 2048, TI 2K)
| |
MF 1K-Compatible: FM11RF08(F08)/Huada S50
| |
MF 4K-Compatible: FM11RF32/Huada S70
| |
FM08, TK S50
| |
Or other customized chips
| |
| 860-960Mhz chip available | Ucode G2, G2 XL, G2 XM, Higgs-3 or other customized chips
|
| Working environment | Working life: 5-10 years;
|
Store temperature: -25 °C ~50 °C;
| |
Humidity 20% ~ 90%RH;
| |
Working temperature: -50°C~ 210°C.
| |
| Packing details | 200/250 pieces in one box, 5/10/15/20/25 boxes in one carton
|
| Delivery | By International Express, By sea or air
|
| MOQ | 500pcs
|
| Artwork Format | CDR, AI, PSD, CDR vector file
|
| Production leadtime | 7 days for less than 100,000pcs
|
| Payment terms | Genernally by T/T, L/C,West-Union or Paypal |
RFID Wristand Tag Show
4) How to buy RFID Tag?
1. You give us the specification (such as size, quantity, artwork of your product).
2. We send quotation.
3. After price confirmed, you should send us artwork, we will make digital approved.
4. We will start order after deposit received.
5. We will update the status of production.
7) Our Service:
Sample service: We can provide free sample in stock as your requirement.
Customized service:We can help you to do customized design or service as your demand.
After service: Any problem we will solve it till meet your satisfactory.
