Home > Products > Wood Processing Machinery > Excellent Quality Industrial Widely Used Air Flow Type Biomass Wood Sawdust Dryer Machine 008613343868847
Excellent Quality Industrial Widely Used Air Flow Type Biomass Wood Sawdust Dryer Machine 008613343868847
- 222 Set / Sets per Month
- Qingdao port China.
- T/T L/C D/P D/A Credit Card
You May Like
-
belt conveyor, conveyor belt, custom made conveyor
-
Screw conveyor, spiral conveyer, custom made conveyor
-
knife for wood drum chipper, blade for drum wood chipper
-
China Supplier BEDO Automatic Knife Grinder Machine for Wood Chipper
-
wood chips siever, sawdust siever, shaking siever
-
BEDO MANUFACTURY conveyor belt, custom made conveyor
Product Details
Condition | New | Type | Rotary Drying Equipment | |
Place of Origin | Henan, China | Brand Name | BEDO | |
Model Number | BD-GT650 | Voltage | 380V | |
Power(W) | 5.5kw | Dimension(L*W*H) | 700*700*1000mm | |
Weight | 2600kg | Certification | ISO9001 | |
Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Excellent Quality Industrial Widely Used Air Flow Type Biomass Wood Sawdust Dryer Machine
a. Rotary Sawdust Dryer is special designed to dry the Wood material which combines the function of drying and cooling, so it can save 30-50% energy.
b. Rotary type sawdust dryer shows the features of perfect drying effect, easy operation, high efficiency and easy control of drying. It takes advantage of the stability of roller and homogeneity of air.
c. Suitable for drying materials of moisture 20-70%. It has the larger capacity, can meet the high capacity need.
Working principle of the rotary sawdust dryer :
After the dank raw material is put into the dryer, it is turned over through the string-up rake which is inside of the cylinder and distributed uniform in the dryer, contacted fully with the countercurrent hot air. It accelerates the heat and mass conducting of dry. During the period of drying, the raw material is effected by the stirring-up rake with gradient and the hot air. It can be moved and passed through the dry region to start valve and discharge the final product.
Model | BD-GT650 | BD-GT800 | BD-GT1000 | BD-GT1200 | BD-GT1500 |
Capacity kg/h | 600-800 | 800-1000 | 1200-1500 | 1500-2000 | 2000-2500 |
Main Power | 5.5kw | 7.5kw | 7.5kw | 11kw | 15kw |
Air lock power | 1.1kw | 1.5kw | 2.2kw | 2.2kw | 2.2kw |
Weight | 2600kg | 2800kg | 3800kg | 4500kg | 5000kg |
Diameter of roller | 0.68m | 0.8m | 1m | 1.2m | 1.5m |
Length of roller | 9m | 10m | 10m | 10m | 10m |

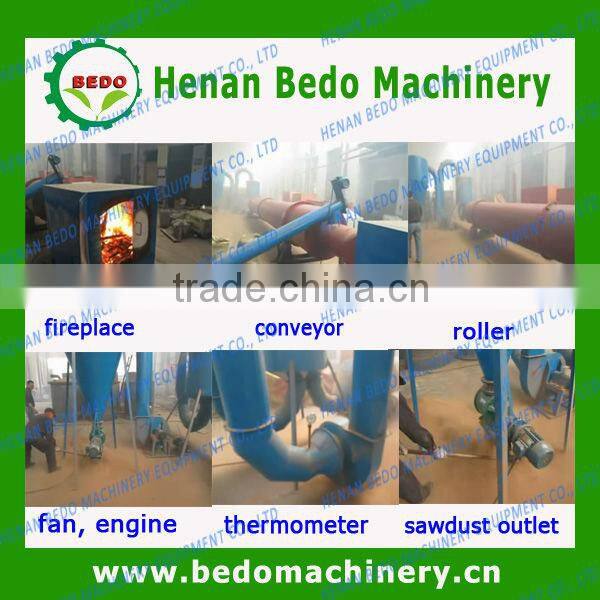

♣ Fireplace is the place where the firewood, coal, gas or other material is burning for heat, there is a specially designed buffer which can make the hot air through but provent the fire in.
♣ Inlet place is beside the fireplace, thus the material can be dry at a early time.
♣ Roller is running evenly to make the material drying and processing at the same time.
♣ Discharging unit is installed with thermeter to control drying temperature. The temperature change of dryer's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)
♣ The cyclone is for the discharging, whcih is more convenient and air lock for making the discharging little noise and no waste.
As a good factory, we are pleased to offer the machine with good quality .

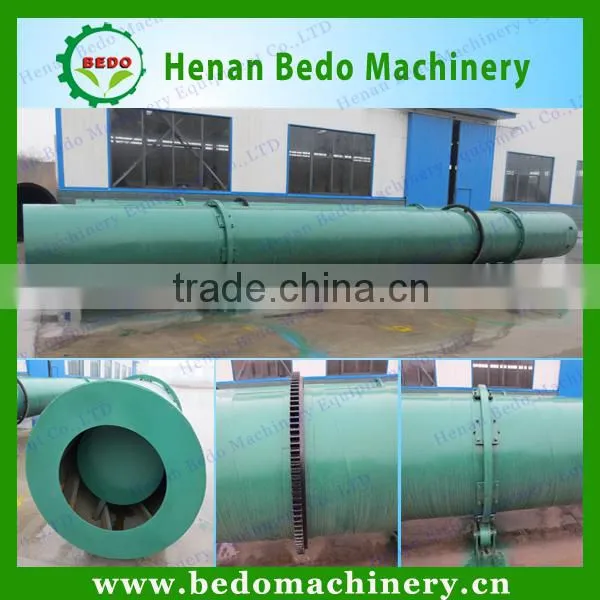

1, the internal structure of roller

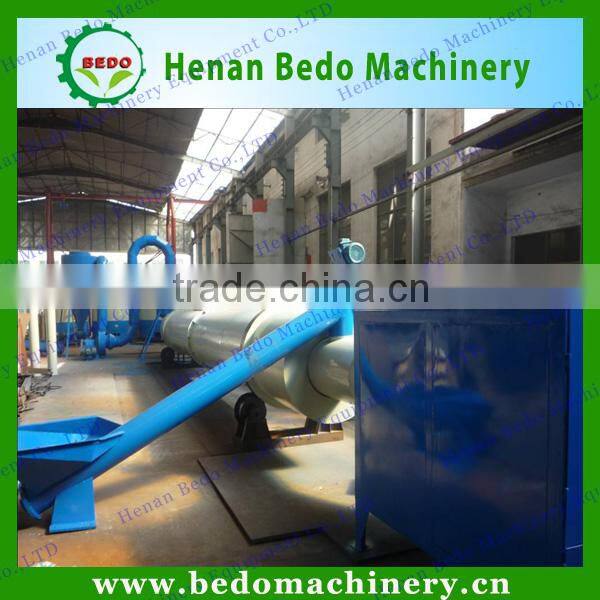

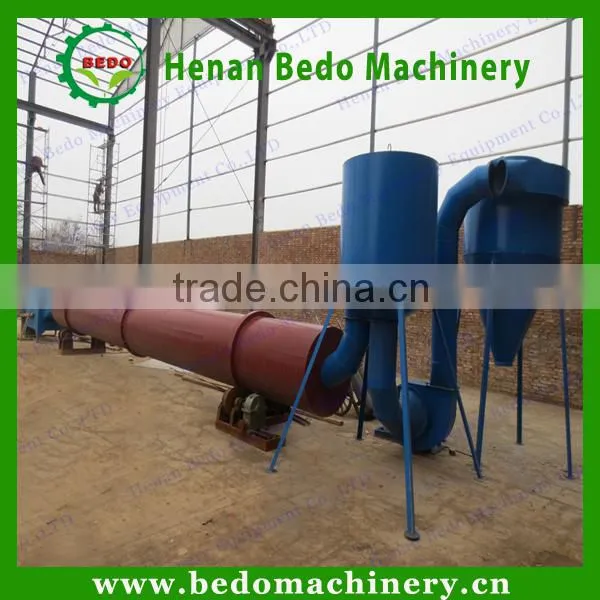

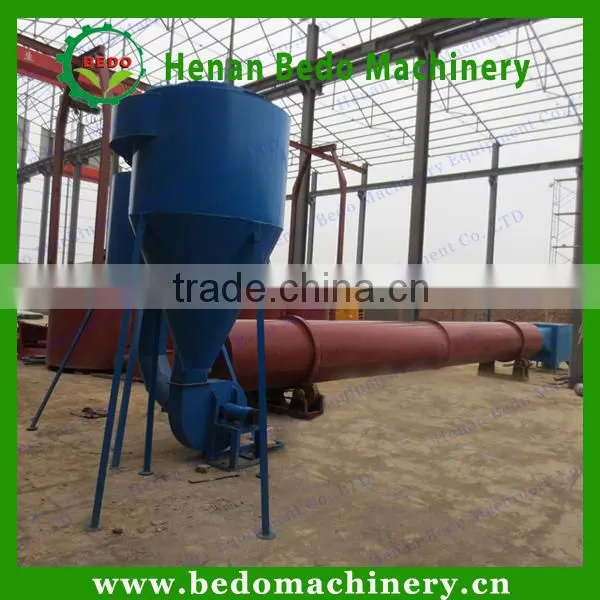

2, whole look of the equipment.

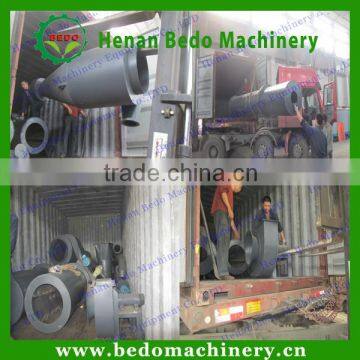

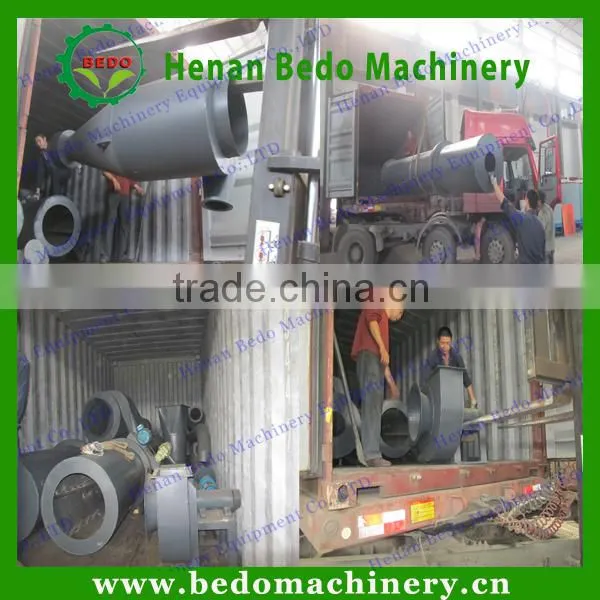

3, delivery
1. How to order?
-After you decide to purchase, we will send you Proforma invoice with our bank information,
bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine
can be ready within 15 days after getting the deposit, we will send to the destination port you need .
-If you still don't understand, please do not hesitate to ask me.
2. Related products?
- we have different types machinery to meet your choice.
3. How do we visit you and your factory?
- First of all, welcome you or any appointed agent to visit and inspect our factory.
- You can fly to shanghai air port, and then fly to zhengzhou air port.
-Please kindly let us know your detailed schedule, so that we can arrange everything for you.
4. Why you choose us?
-As manufacturer, our products have excellent quality and competitive price.
-Good after-sales services and 12 months warranty are visible.
-Strictly testing and checking before shipping.
- Many years' experience in manufacturing and 6 years exporting experience in Alibaba & Made-In-China.
-Doing OEM for many famous brand.
5. How to contact with me?
Snow
Skype :bedomachinery02
Mobile : 008613343868847
QQ : 2603303299
If you have interest in our machine, please send detailed inquiry in the below, click " Send " now !
