Help CenterHigh Frequency Induction Hardening Furnace 160KW for Gear Hardening
Related Products
-
160KW IGBT High Frequency Induction Forging MachineUS$ 1,600 - 20,000MOQ: 1 Set -
Road Paving Block Making MachineUS$ 4,000 - 10,000MOQ: 1 Set
-
High Yield Clay Brick Making Machine With Small InvestUS$ 4,000 - 10,000MOQ: 1 Set
-
Road Paving Block Machine Hot SellingUS$ 4,000 - 10,000MOQ: 1 Set
-
High Yield Concrete Block Making Machine With Small InvestUS$ 4,000 - 10,000MOQ: 1 Set
Specifications
high frequency furnace1.Easy to operate and install
2.IGBTmodules
3.Induction hardening furnace
4.Small size,light weight
High Frequency Induction Hardening Furnace 160KW for Gear Hardening
Technical Parameters of high frequency induction hardening furnace
Model |
BD-GPL160 |
Max. Output Power |
160KW |
Max. Input Current |
240A |
Work Power |
Three phase 380V/50-60HZ |
Working voltage range |
342-420V |
Oscillation Frequency |
10-30KHZ |
Cooling Water Pressure |
0.1-0.3Mpa |
Rated duty cycle |
100% |
Cooling Method |
Water-cooling |
Water Temperature Protection |
50°C |
Volume (mm) |
1150×550×800(Host) 950×550×450(Transformer) |
Weight (kg) |
130(Host) 125(Transformer) |

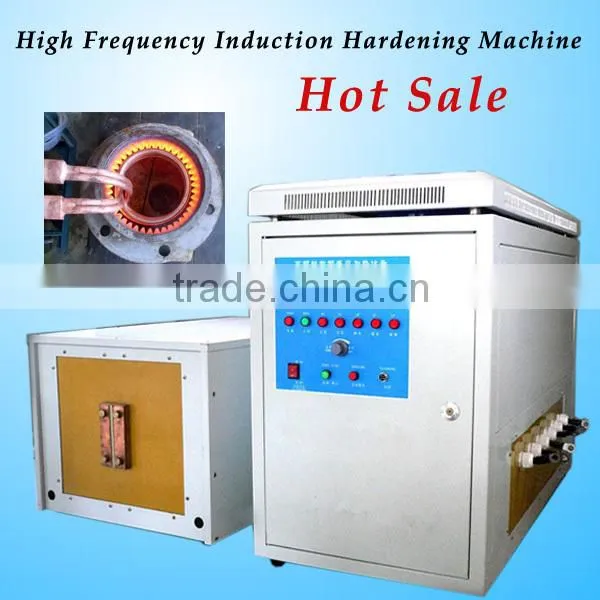

Pictures of high frequency induction hardening furnace

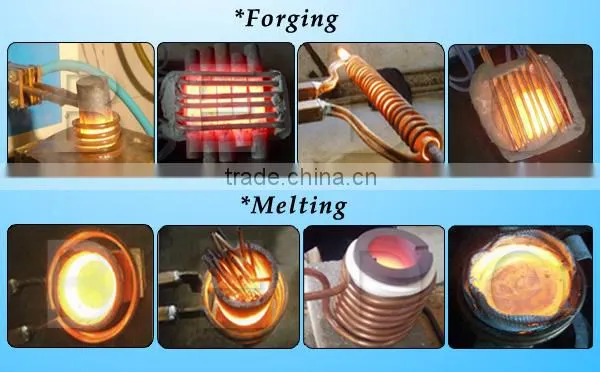

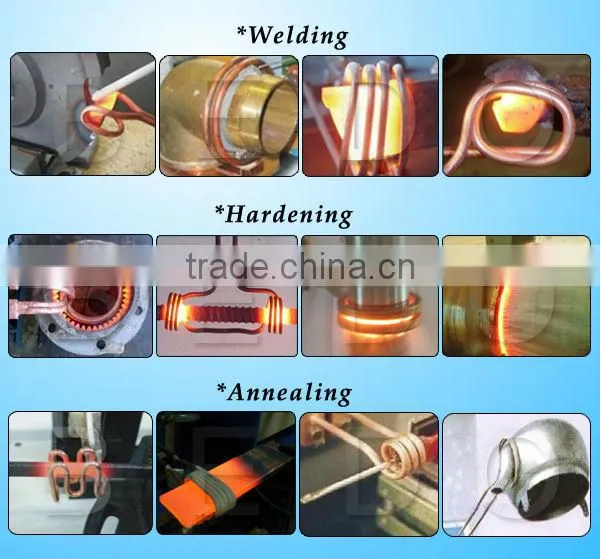

Application of high frequency induction hardening furnace:
1. Harden treatment for belt of saw,knife.
2. Harden treatment for both sides belt of knife.
3. Quenching valves.
4. Heating electrod.
5. Brazing of the saw tip.
6. Quenching of the gear.
7. Heating of the small scren.
8. Drills forging or hardening.
9. Brazing of the small PCB drills.
10. Brazing for parts of jewellery.
11. Brazing for parts of artware.
12. Brazing for the parts of optical spectacle frame.
13. Soldering for DLC data link connector.
14. Tin-Lead bonding Antennas.
15. Tin soldering Coaxial Cable.
16. Annealing the small parts.
17. Brazing of the tools.
18. Quenching of the small shaft.
19. Shaping of the small shaft.
Features of high frequency induction hardening furnace:
1. Light weight, small size and simple structure.
2. Simple to operate, a few minutes are enough for user to learn it.
3. Simple to install, installation can be done by unprofessional person very easily.
4. Heating fast: the fastest heating speed is less than one second, and heating speed can be adjusted.
5. Different shapes and sizes of induction coils can be changed easily to heat different parts.
6. Multi-display functions, with displays of over current, over voltage, water lack, phase lack and so on, machine can be protected from destroys and can be repaired easily.
7. Advantages: The machine is equipped with timer, so user can preset machine’s power, operating time, heating time and retaining time to realize a simple heating curve.
Packing picture
After-sales service
1. One year warranty;
2. Long-term technical support;
3. Replacing parts for free;
4. Overseas on-site technicians service if required.
THANKS FOR YOUR TIME AND WE ARE LOOKING FORWARD TO YOUR COOPERATION. WE WILL PROVIDE YOU THE BEST PRODUCT WITH PROFESSIONAL SERVICE! FEEL FREE TO SEND US ANY INQUIRIES!
Skype: bedomachinery
