Specifications
1.Wood Crushing Machine;2.0.5-15t/h capacity;
3.Over 9 months spare parts lifetime
4.18month warrenty
5.ISO

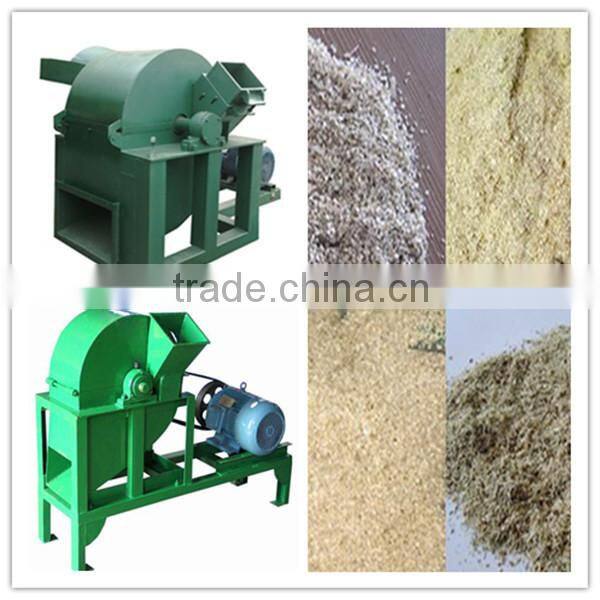

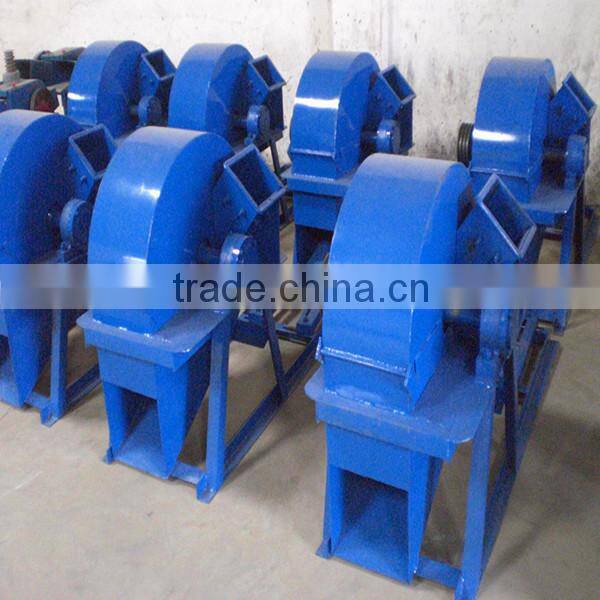

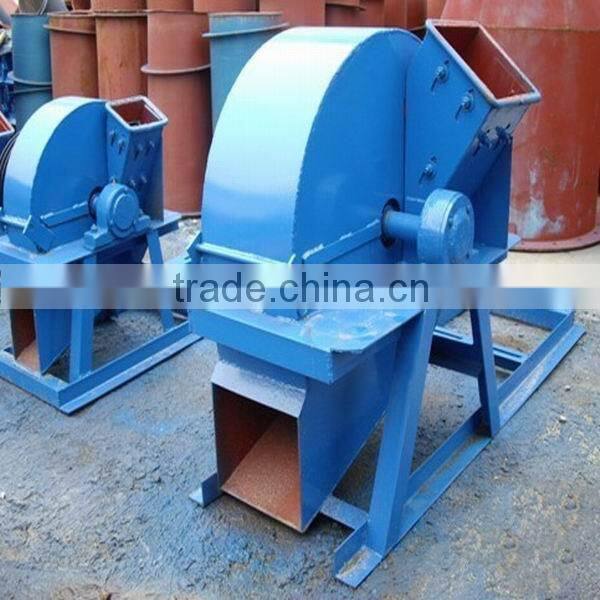

Compact Layout Wood Crushing Machine With Factory Price
1. Features Of Wood Crushing Machine :
It is based on the needs of industrial production in China, after years of research and design of the timber invented special equipment to smash series. As a result of rational design, compact structure, safety, durability, promoting the performance and application, one whole set of equipment, low noise, high yield qualified wood products, low processing costs.
Fininshed Product
2. Advantages of Wood Crushing Machine :
1. To ensure security, the feed inlet of this machine adopts self-suction design to avoid serious damage to operators;
2. Low investment and energy consumption;
3. High output;
4. High-quality finished products;
5. Easy to operate and miantain.
3. The Main Purpose Of Wood Crushing Machine :
Set slice, smash into one, can crush diameter 1-20 cm wood and branches, also can be used for bamboo, grass, corn stalk, sorghum stalk stalk fiber, such as the chip-like material.
4.Usage Of Wood Crushing Machine :
Wood Crusher prepares suitable size raw material for biomass briquetting plant. According to different raw material, users should use suitable crushers. Wood crusher is to crush small sized material with diameter no more than 50mm. Such as tree branchs, tree trimmings, wood chips, wood cuttings, cotton stalk, corn stalk, wheat straw etc. Plate type crusher is to crush tree logs with diameter less than 200mm to 3-5mm at any length.
5. Technical Parameters:
Parameters | |||||||
Type |
400 |
500 |
600 |
750 |
800 |
900 |
1000 |
Power(kw) |
7.5 |
11 |
18.5 |
22 |
30 |
37 |
45 |
Capacity(kg) |
400 |
600 |
800 |
1000 |
1500 |
2500-3000 |
4000-5000 |
Feeding size(mm) |
150×200 |
200×200 |
200×230 |
200×250 |
250×300 |
300×350 |
350×400 |
Knife size(mm) |
400 |
500 |
600 |
750 |
800 |
900 |
1000 |
Knife quantity(piece) |
4 |
4 |
4 |
4 |
6 |
6 |
6 |
Knife length(mm) |
150 |
150 |
200 |
230 |
230 |
260 |
300 |
Main speed(r/min) |
2500 |
2500 |
2200 |
2200 |
1500 |
1500 |
1500 |
After-sales Service:
After-sale services: Our company will send professional engineers to guide
device installation, debugg and train operators until customers are fully satisfied.
Moreover, we will design and produce machines according to the special
requirements of customers.
Solemn Promise: The quality guarantee period of machines is one year except
the wearing parts.
Warm tips: The prices in the web only to be reference, according to raw
material’s price fluctuations, Specific price is subject to the call.
