Specifications
1.Nylon Sieve Mesh2.High Efficient
3.High Profit
4.Reasonable Price
5.ISO9001
High Quality Nylon Sieve Mesh With Surprise Price

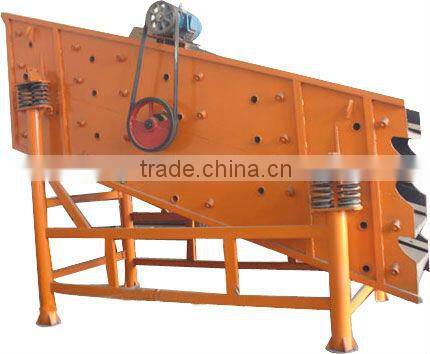

Vibrating Screen' Brief Introduction
The series of vibrating screen moves in circular. It is specially designed for quarry to separate stone into different sizes. It is also widely used for classification in mining, building materials, hydroelectricpower and chemical projects,etc. The series of YK is the latest model in China. The eccentric shaft vibration exciter and tyre coupling are adopted. The machines have the features of advanced structure, strong exciting force, low vibrating noise, convenient maintenance, durability, and so on.
Vibrating Screen' Operating Principles

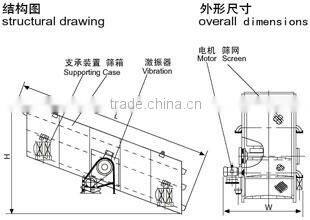

It is mainly composed of screen box, vibration exciter, suspension(supporting) device, and motor. Through triangle belt, the motor drives the main shaft of the vibration exciter to rotate. The screen box obtains the vibration by the centrifugal inertia force produced by the rotating exciting shaft with the eccentric block. Diffenrent amplitude of vibration can be obtained by changing the weight of the eccentric block.
Vibrating Screen' Product Application
Widely used in mining, coal, metallurgical, building, fire-proof materials, light industry, chemical and so on.
Type |
Screen area |
Siev pore size(mm) |
Feed size(mm) |
Production capacity(t/h) |
Motor power(kw) |
Weight(kg) |
2YK1235 |
2 |
5-120 |
<=400 |
60-120 |
5.5 |
3600 |
2YK1545 |
2 |
5-150 |
<=400 |
110-360 |
15 |
6400 |
3YK1545 |
3 |
5-150 |
<=400 |
110-360 |
15 |
5800 |
3YK1548 |
3 |
5-150 |
<=400 |
120-385 |
15 |
6600 |
4YK1548 |
4 |
5-150 |
<=400 |
120-385 |
15 |
7200 |
2YK1854 |
2 |
5-200 |
<=400 |
200-450 |
18.5 |
8150 |
3YK1854 |
3 |
5-200 |
<=400 |
200-450 |
18.5 |
8850 |
4YK1854 |
4 |
5-200 |
<=400 |
250-600 |
18.5 |
9550 |
3YK1860 |
3 |
5-200 |
<=400 |
250-600 |
22 |
9100 |
4YK1860 |
4 |
5-200 |
<=400 |
300-750 |
22 |
9800 |
3YK2060 |
3 |
6-200 |
<=400 |
300-750 |
37 |
10800 |
4YK2060 |
4 |
6-200 |
<=400 |
400-850 |
37 |
11800 |
3YK2460 |
3 |
6-200 |
<=400 |
400-850 |
45 |
16600 |
4YK2460 |
4 |
6-200 |
<=400 |
400-850 |
45 |
17000 |
1. We are Factory(Not Dealer)
All machines from Henan Zhongcheng Machinery CO., LTD are made by ourselves with lower price, good quality and we assure full after service. So please buy mchine from us.
2. Traning & Service
♥Pre-sale services: Enthusiasm
We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.
♥Sale Services: Profession
Skilled technicians are sent to the worksite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
♥After-sale service: Loyalty
To establissh long term friendship, we will regularly pay return visit to customers. In addition, we provide one-year warrantee to make sure your machines runs properly. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. If you are new for this business, we will help you.
Many thanks for your trust. Based on your demands and the conditions of working spot, we can provide you with design scheme for whole production lines, and the service of spot inspection and operator training. We can also help you choose the right equipment.
4. We would like to recommend a suitable type for you and send you a best quotation. Some questions to help you and us to decide which specifications you need. Please inform us in your inquiry.
1)What are the materials you deal with?(sizes and types)
2)What final products do you want?
3)How big handling capacity or output do you need?( tons an hour)
