30-500t/h Wear Resistant Vibrating Screen With High Screening Precision
- 100 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T Credit Card
Product Details
Condition: | New | Type: | Circular | Application: | Other, Stone, Ore, Food And Others |
Place of Origin: | Henan, China | Brand Name: | Zhongcheng | Model Number: | 3YK1860 |
Voltage: | 380V | Power(W): | 22000 | Dimension(L*W*H): | 6300*2050*1800mm |
Weight: | 8600kg | Certification: | ISO, SGS, BV | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
30-500th Wear Resistant Vibrating Screen With High Screening Precision
Contact Windy +86-13526578789
1. Working Principle Of Vbrating Screen:
Vibrating screen uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine's feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet repectively. It can be used in the automatic production line.

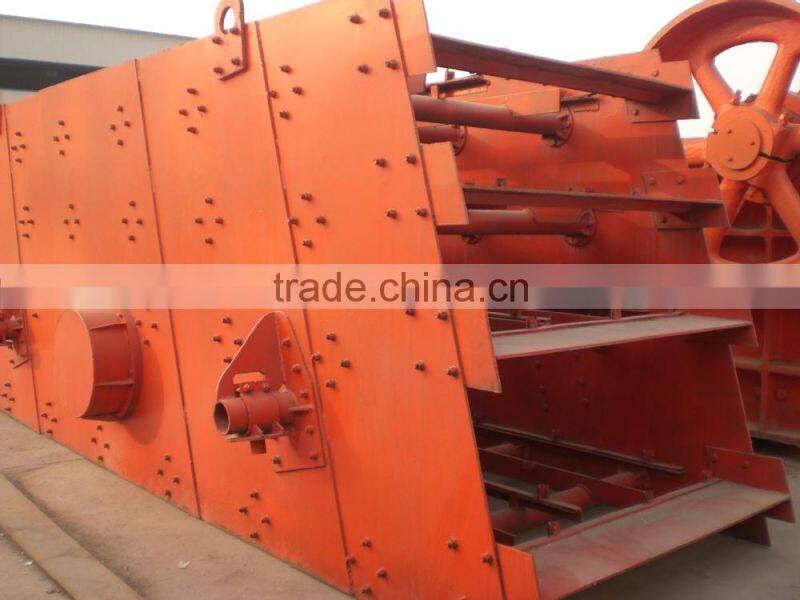

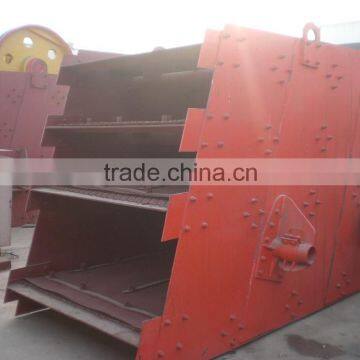

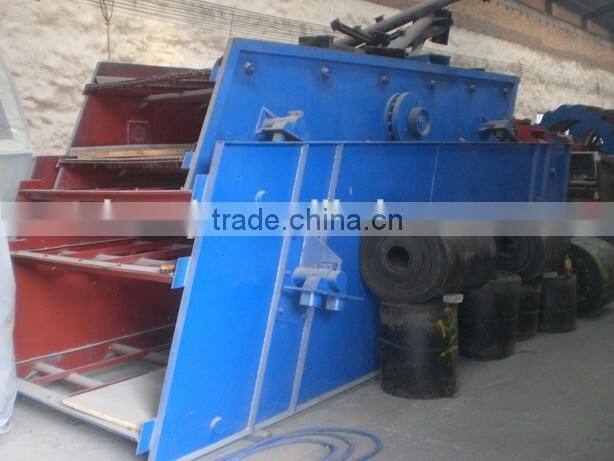

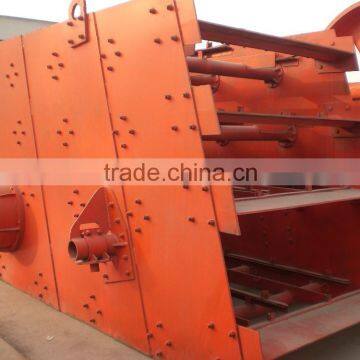

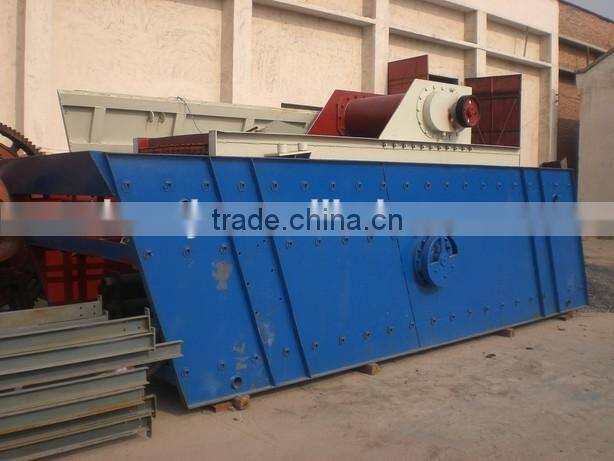

3YK1860 Vibrating Screen In Stock
2. Advantages Of Vibrating Screen:
1. High efficiency, low energy consumption;
2. Simple structure, convenient maintenance;
3. Fully closed structure without dust pollution;
4. Stable working station and smooth operation;
5. High utilization rate of screen, large unit area, not easy to block, but easy replacement of screen.
6. High-precision screening reach to 96% or above, large processing capacity, etc.
3. Application Of Vibrating Screen:
It is Widely used in plastics, abrasive, chemical, pharmaceutical, building materials, food, etc.

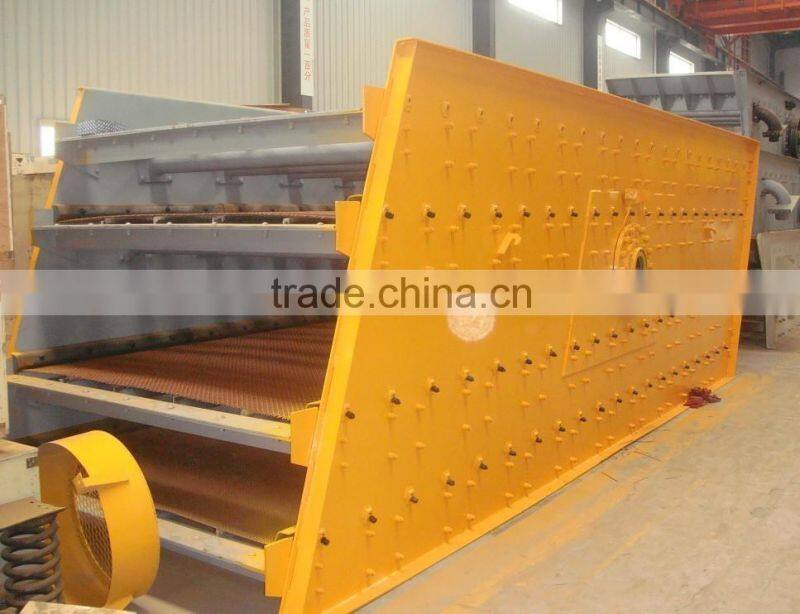

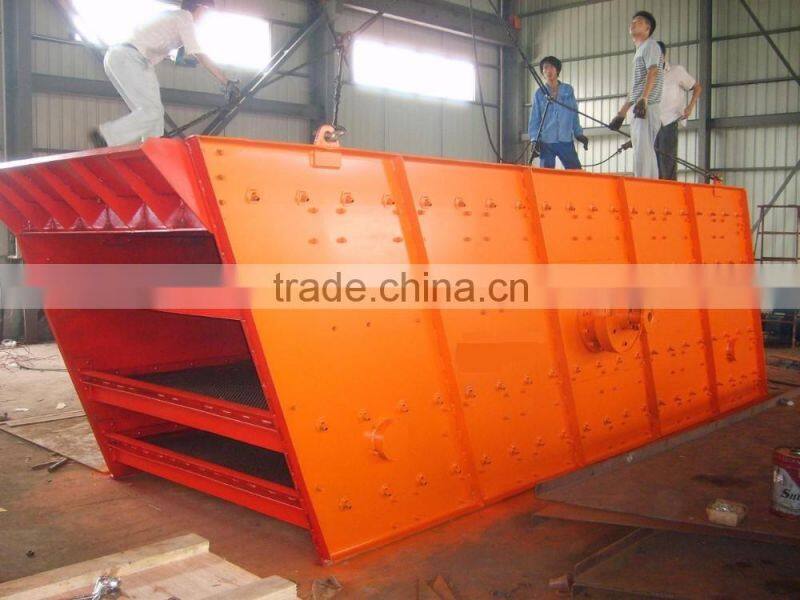

Vibrating Screen With Manganese Wire Sieve
4. Technical Parameters Of Vibrating Screen:
Type | layer | area (m2) | Sieve opening (mm) | Max. feeding size (mm) | Handling capacity (t/h) | Vibrating frequency (r/min) | power (kw) | Overall dimension (m) | weight (t) |
2YK1020 | 2 | 2.0 | 3-30 | 100 | 5-37 | 900 | 5.5 | 2.2×1.8×1.1 | 1.5 |
2YK1230 | 2 | 3.2 | 3-50 | 200 | 7.5-78 | 800-970 | 5.5 | 3.1×2.1×2.2 | 2.3 |
3YK1237 | 3 | 3.9 | 3-50 | 200 | 9-93 | 800-970 | 11 | 3.9×2.3×2.7 | 4 |
3YK1545 | 3 | 6 | 5-50 | 400 | 22-150 | 800-970 | 15 | 5.7×3×3.8 | 5.8 |
3YK1548 | 2 | 6.4 | 5-50 | 400 | 22.5-162 | 800-970 | 18 | 5.7×2.5×3.4 | 5.8 |
3YK1848 | 3 | 7.7 | 5-80 | 400 | 32-275 | 800-970 | 18 | 5×3.1×3.5 | 6.6 |
3YK1860 | 3 | 8.7 | 3-100 | 400 | 65-586 | 800-970 | 22-30 | 6.0×1.8×3.6 | 8.6 |
3YK2154 | 3 | 10.2 | 5-100 | 400 | 37.5-405 | 750-970 | 22 | 5.6×3.6×3.9 | 11 |
3YK2160 | 3 | 12.6 | 5-100 | 400 | 50-475 | 970 | 30 | 6.4×3.8×4.2 | 10 |
2YK2460 | 2 | 12.6 | 3-150 | 400 | / | 770 | 37 | 6×2.4 |
|
5. Service Promise:
Warm tips: The prices in the web only to be reference, according to raw material's price fluctuations, Specific price is subject to the call.

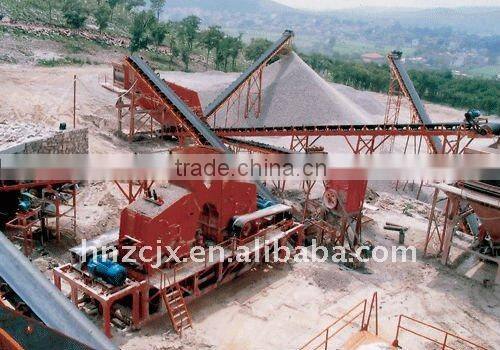

6. Vibrating Screen In The Production Site:

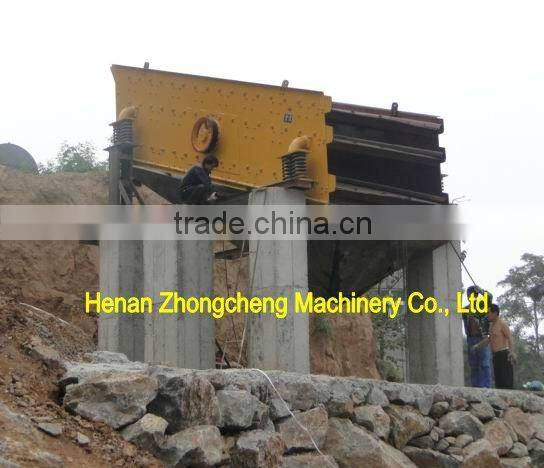

Vibrating Screen In Practical Production Site
