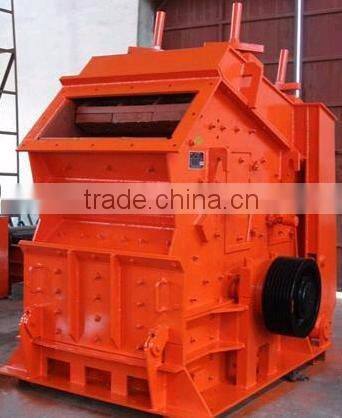

Help CenterLimestone Crushing Machine PFX 800*800
Related Products
-
China Fashional Fine Impact CrusherUS$ 1,000 - 100,000MOQ: 1 Set -
High Efficiency Fine Impact Crusher Manufacturer in ChinaUS$ 1,000 - 100,000MOQ: 1 Set
-
Stone Impact Fine Crusher Machine Used in Mining PFX Product With Best PriceUS$ 1,000 - 100,000MOQ: 1 Set
-
Mining Area Impact Fine Crusher Machine(sand Maker)US$ 1,000 - 100,000MOQ: 1 Set
-
Offer Fine Impact Crusher Machine With Low Price for SaleUS$ 1,000 - 100,000MOQ: 1 Set
Specifications
1 large capacity2 ISO9001:2000
3 uniform particle size
4 supporting smaller power
5 easy maintenance, smooth operation
High-efficient fine impact crusher
This series of crushers has been developed and improved by incorporating the advantages of the technology both home and abroad so that the structural design is further optimized. Uses in all kinds of medium degree hardness solid material, cement industry for crushing limestone, paste, chamotte, mix material and so on. Also may be used for fine crushing the calcium phosphide, the dolomite, and pearl ore and so on. It can be widely used in the building materials, the chemical fertilizer, mining industry sector and fire-proof material and so on.
Working principles:
This equipment adopts two motors, which take two rollers to rotate reversely by the decelerator. When the materials drop on the rollers through the charge hole under the friction of the rollers, they are dragged between the two rollers, grinded by the roller's crushing; the grinded materials are pushed prefatorily by the rollers.
Features:
1. Small and uniform particle size
2. Large capacity, hammer, long life
3. Supporting smaller power
4. Simple process and structure, easy maintenance, smooth operation
High efficient fine crusher’s main technical parameters:
Type |
Material-in size(mm) |
Material-out size(mm) |
Yield(t/h) |
Power(kw) |
Weight(t) |
PFX800×300 |
<=60 |
<=5(96%) |
20-25 |
37 |
2.5 |
PFX800×600 |
<=60 |
<=5(94%) |
35-50 |
45 |
4.7 |
PFX800×800 |
<=70 |
<=5(92%) |
40-60 |
75 |
6.5 |
PFX1000×1000 |
<=80 |
<=5(91%) |
60-90 |
90 |
8.8 |
PFX1000×1200 |
<=90 |
<=5(88%) |
75-110 |
110 |
13.6 |
PFX1300×1200 |
<=100 |
<=5(86%) |
120-145 |
160 |
19.5 |
PFX1300×1400 |
<=120 |
<=5(85%) |
145-180 |
180 |
26 |
Note: for information purposes only, any questions please contact us!
