Specifications
1.Best-seller Iron Ore Magnet Separator2.High precision
3.Simple structure
4.Easy maintenance
5.ISO9001

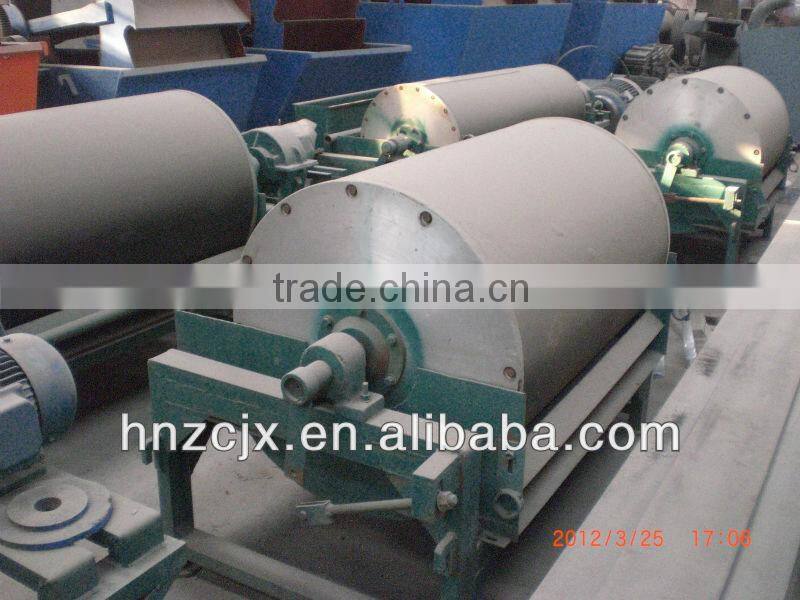

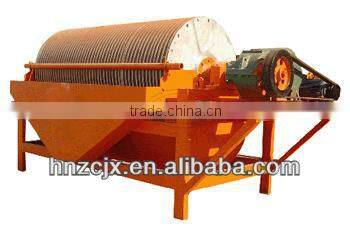

High Performance Iron Ore Magnet Separator
1.Introduction
It applies to the separation of matters with magnetic differences. It is widely used in ming, timber, ceramic, chemical industry. For mining, the magnetic separator is suitable for the dry or wet separation of manganese ore, magnetite, magnetic pyrite, roasting ore, ilmenite, limonite and so on. It is also used for the iron removal in coal, non-metallic mineral, building materials and so on.
2.Features of Magnetic Separator
1. Big processing capacity
2. Wide range of separating mineral size
3.High precision of separation, and non-blocking
4. Simple structure, easy maintenance
3. Main Technical Parameters :
Type |
GYC-60B |
GYC-60B-1 |
GYXY-2*60 |
GYC-3*60 |
GYC-3*80 |
GYC-4*80 |
Cylinder dia*length(mm) |
320*600 |
320*600 |
320*600 |
320*600 |
404*800 |
404*800 |
Magnetic induction(oe) |
3600 |
1100 |
3500 |
1100-3000-35000 |
1100-3000-3500 |
1100-3000-3500 |
Cylinder quantity(per) |
1 |
1 |
2 |
3 |
3 |
4 |
Cylinder speed(r/min) |
66,47,33 |
66,47,33 |
66,47,33 |
34.5-172 Adjustable |
54.6-172 Adjustable |
64.5-172 Adjustable |
Input size(mm) |
0.06-25 |
0.063-25 |
0.05-25 |
0-8 |
0-8 |
0-8 |
Motor model |
Y801-4 |
Y901-4 |
Y801-4 |
ZBW-15 |
ZBW-15 |
ZBW-15 |
Power(kw) |
0.75 |
0.75 |
0.75 |
1.1 |
1.5 |
2.2 |
Overall diamension(mm) |
860*550*840 |
860*550*840 |
1150*920*1500 |
1050*1025*1700 |
1770*1260*2400 |
2300*1000*2750 |
Capacity(t/h) |
0.5-2.5 |
0.1-3 |
0.5-2.5 |
0.8-2.5 |
1.5-2.5 |
1.5-2.5 |
Weight(t) |
0.5 |
0.65 |
0.5 |
1.2 |
1.5 |
2.4 |
Applecation scope and introduction |
Select |
select |
select |
With vibration feeder |
With vibrating feeder |
select |

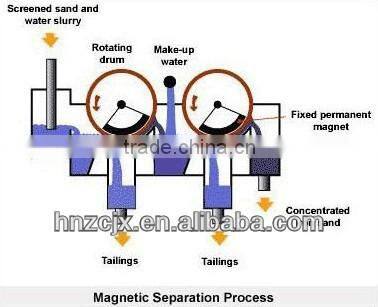

4. Working Principle:
