Specifications
1.Hot Sawdust Dryer2. Reliable performance;
3. Adaptability and large handling capapcity;
4.Lower power consumption;
5.ISO
Zhongcheng Brand Quality Guaranteed Sawdust Dryer With ISO Certificate
1. Introduction Of Sawdust Dryer:
The sawdust dryer made by our company is mainly used in building materials, metallurgy, chemical plant, cement plant for drying of limestone slag, coal powder, slag, clay stone.
This dryer is made up of rotary body, lifting blade, driving device, supporting device and sealing ring.

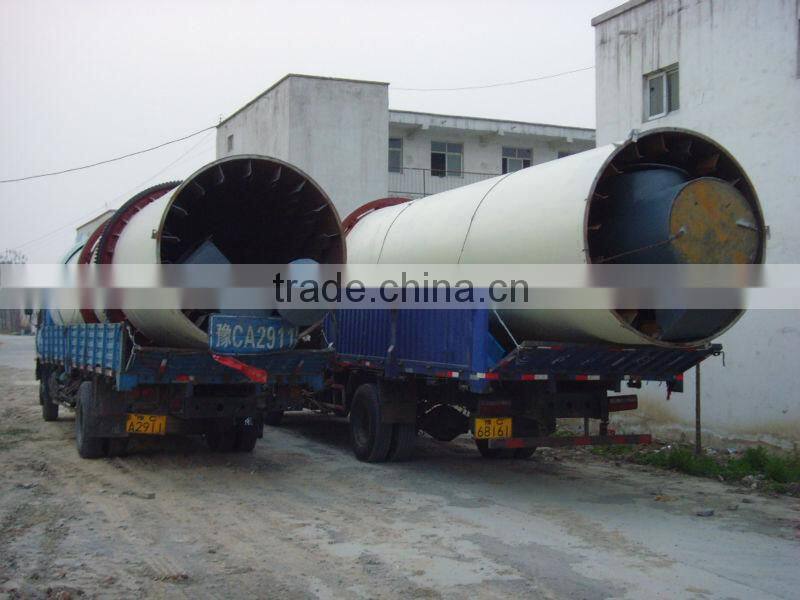

Oversea Delivery
2. Structure Of Sawdust Dryer:
Rotary drier machine is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.
Brief Flow Chart Of One Sawdust Dryer Plant
Structural Drawings Of Rotary Dryer
3. Advantages Of Sawdust Dryer:
1. Reasonable and scientific structure;
2. High drying efficiency;
3. Low energy consumption, wide fuel application, such as coal, gas, oil or biomass,etc;
4. Convenient transportation, can be divided into separated parts as practical condition.

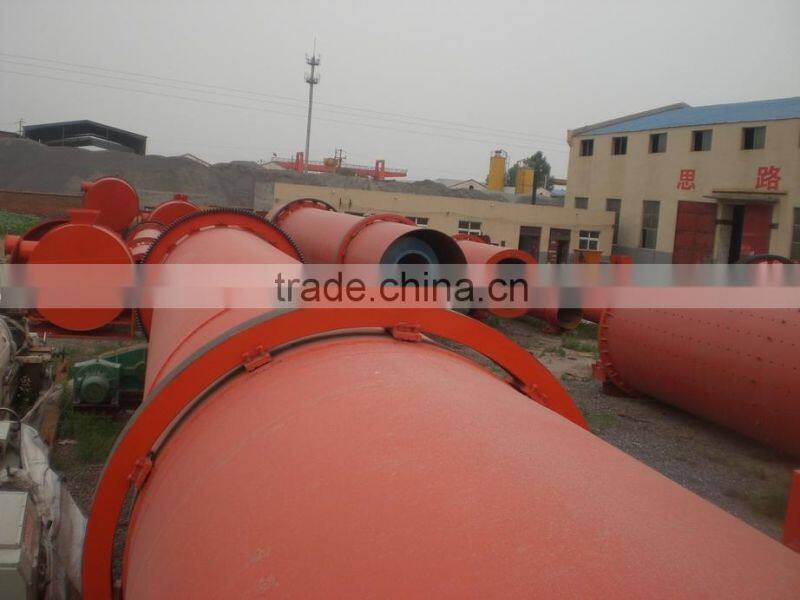

Practical Production Site
4. Working Principle Of Sawdust Dryer:
Rotary dryers consist of a horizontally inclined rotating cylinder. Material is fed at one end and discharged at the other end. In direct-type rotary dryers, hot gases move through the cylinder in direct contact with the material, either with or against the direction of its flow. The cylinder is equipped with flights, which lift the material and shower it down through the hot gas stream.
Lifting Plate Device
5. Main Technical Parameters Of Sawdust Dryer:
Type |
Rotary diameter (mm) |
Rotary length (m) |
Gradient (0) |
Rotational speed (r/min) |
Weight (t) |
Power (kw) |
Volume (m3) |
φ0.6×8 |
φ600 |
8 |
3-5 |
8 |
5.1 |
4 |
2.26 |
φ0.8×10 |
φ800 |
10 |
3-5 |
7.2 |
6.9 |
4 |
5.02 |
φ1.0×10 |
φ1000 |
10 |
3-5 |
6.73 |
7.5 |
5.5 |
7.85 |
φ1.2×12 |
φ1200 |
12 |
3-5 |
5.8 |
13.1 |
11 |
13.31 |
φ1.5×12 |
φ1500 |
12 |
3-5 |
4.8 |
22.3 |
15 |
21.2 |
Φ1.8×14 |
Φ1800 |
14 |
3-5 |
3.2 |
45.8 |
3. |
48.22 |
φ2.2×18 |
φ2200 |
18 |
3-5 |
3 |
50.3 |
37 |
70.43 |
φ2.4×20 |
φ2400 |
20 |
3-5 |
2.83 |
78.4 |
45 |
90.43 |
φ2.8×24 |
φ2800 |
24 |
3-5 |
2.59 |
97 |
75 |
147.8 |

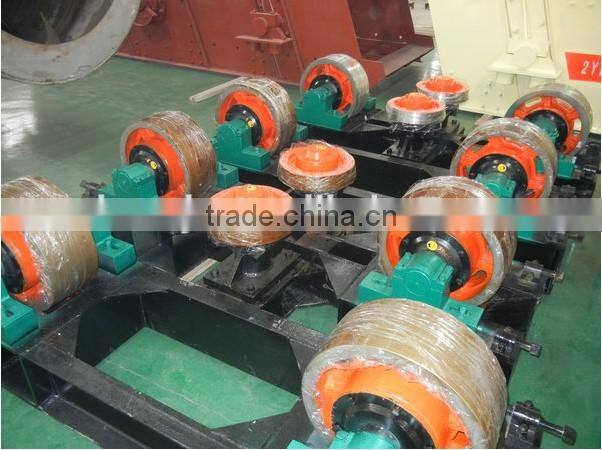

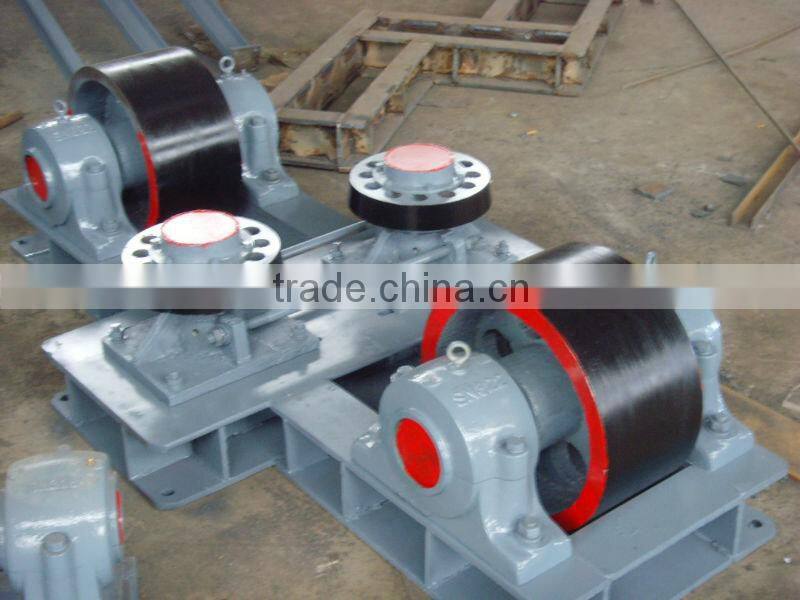

Transmission And Frame Support
1. We are Factory (Not Dealer):
All machineries from Henan Zhongcheng Machinery CO., LTD are made by ourselves over 20 years, with lower price, good quality and assured full after service. So please buy machine from our factory.
2. Training & Service:
Before sale: Guide customers to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the site.
On sale: Inspect the product seriously before out of the factory; invite customer for commissioning in the spot and raising the objection; organize to delivery according to the contract.
After sale: Company can send technical persons for guiding to install debug and train the workers.
♥ In addition, We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. If you are new for this business, we will help you
Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
4. We’d like to recommend a suitable type for you and send you a best quotation. Some questions please inform us in your enquiry.
♥ 1. What is raw material?
♥ 2. What is feeding moisture and output moisture?
♥ 3. What is required capacity?
