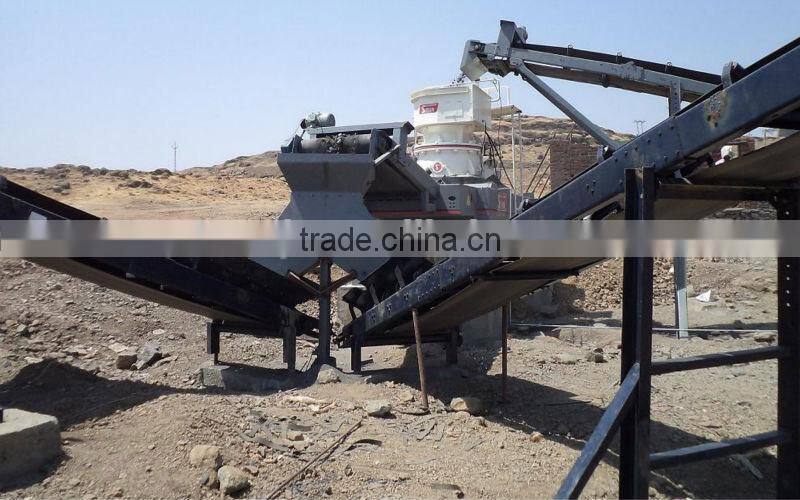

Help CenterLarge Capacity Durable Stone Crusher Machine Price With Lifetime Warranty
Related Products
-
Energy Saving Large Productivity Hammer Mill With ISO CertificateUS$ 3,000 - 8,000MOQ: 1 Set -
China Competitive Mini Jaw Crusher With ISO And BV CertificateUS$ 3,000 - 6,000MOQ: 1 Set
-
Low Price Mini Crusher With ISO CertificateUS$ 1,000 - 10,000MOQ: 1 Set
-
High Energy Efficiency Mobile Crusher With ISO CertificateUS$ 1,000 - 100,000MOQ: 1 Set
-
Widely And Popularly Used Impact Crushing Machine Specially For QuarryUS$ 5,000 - 50,000MOQ: 1 Set
Specifications
1.Hot Sale Stone Crusher Machine Price:2.Even product sizes;
3.Easy adjustment and operation;
4.Durable spare parts;
5.ISO.

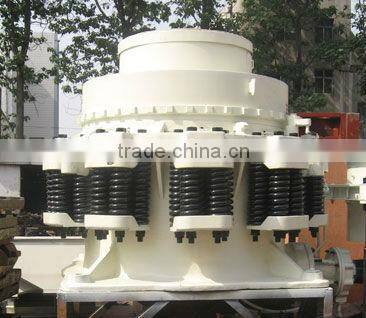

Large Capacity Stone Crusher Machine Price With Lifetime Warranty
Contact: Windy +86-13526578789
1. High quality, durable wear parts;
2. Most competitive price;
3. Best, timely after-sales service;
4. High crushing rate;
5. Easy operation and maintenance;
6. Best choice of middle and fine crushing process.
When stone crusher machine is running, the motor drives power to vibration cone by belt wheel, coupling and the vibrating shaft, which makes cone crushing wall closer or apart from the mortar rolled on the adjusting bush. The materials in the crushing champer achives crished by many impacting, pressing and beading. The power drives the crushing cone to run by cone wheel which drives the eccentric bush. The crushing cone closer and apart from the fixed cone from time to time, finishs the crushing and discharging process.
The spring between the supporting bush and the frame will beads and discharges the dust to protect the motor. Other than some ones could not be broken. In this way, If some matearials which could not be broken will be stucked at the discharging opening, It will be increased much bigger to make the materials discharged. The crushing champer of the cone crusher be made of wear resistant steel plate, and easy to auto adjustment the discharging opening size.

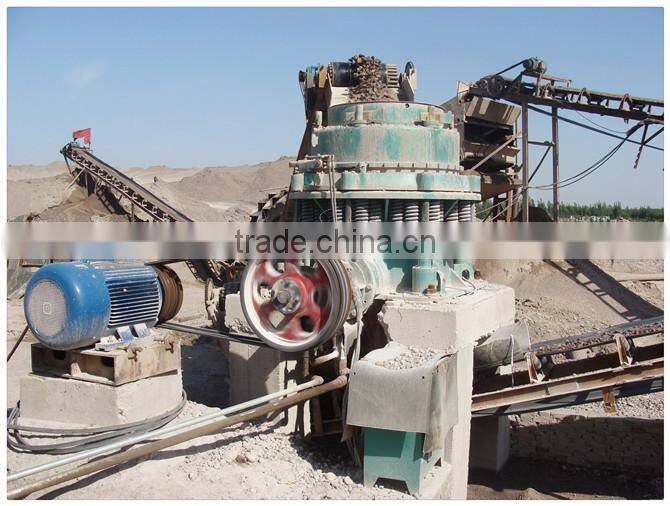

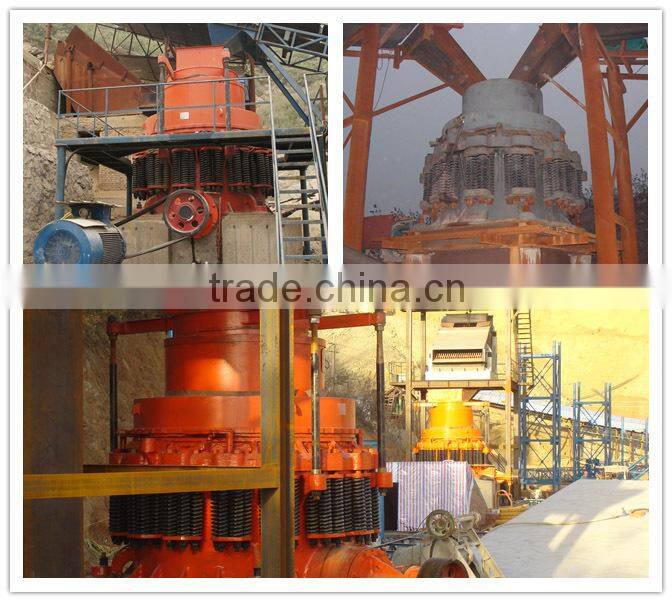

The stone crusher machine is widely used in fields of metallurgy, building materials, high road, chemical industry and silic and so on. And suitable for kinds of mining stone and rocks with the middle and upper hardness.
1. The stone crusher machine has features of tight structure, efficient product, adopts bowl type shaft with high precision reserve, and focus lubrication systom, easy adjustment and the springcan prodect the all the equipment.
2. The stone crusher machine can avoid the moisture mixed with the oil, and the spring can make up for the airproof, when the airproof wear out about 1/4-1/3, must to exchange the airproof in time.
3. Easy and low cost maintenance, it is the best choice of middle and fine crushing process.
Type |
Head diameter(mm) |
Max feed size (mm) |
Output size (mm) |
Capacity (t/h) |
Motor (KW) |
Shaft speed(r/min) |
Weight (t) |
Dimension(mm) |
PYB900 |
900 |
115 |
15-50 |
50-90 |
55 |
333 |
11.2 |
2692×1640×2350 |
PYZ900 |
900 |
60 |
5-20 |
20-65 |
55 |
333 |
11.2 |
2692×1640×2350 |
PYD900 |
900 |
50 |
3-13 |
15-50 |
55 |
333 |
11.3 |
2692×1640×2350 |
1200 |
145 |
20-50 |
110-168 |
110 |
300 |
24.7 |
2790×1878×2844 |
|
PYZ1200 |
1200 |
100 |
8-25 |
42-135 |
110 |
300 |
25 |
2790×1878×2844 |
PYD1200 |
1200 |
50 |
3-15 |
18-105 |
110 |
300 |
25.3 |
2790×1878×2844 |
1750 |
215 |
25-50 |
280-480 |
160 |
245 |
50.3 |
||
PYD1750 |
1750 |
85 |
5-13 |
575-230 |
160 |
245 |
50.2 |
3910×2894×3809 |

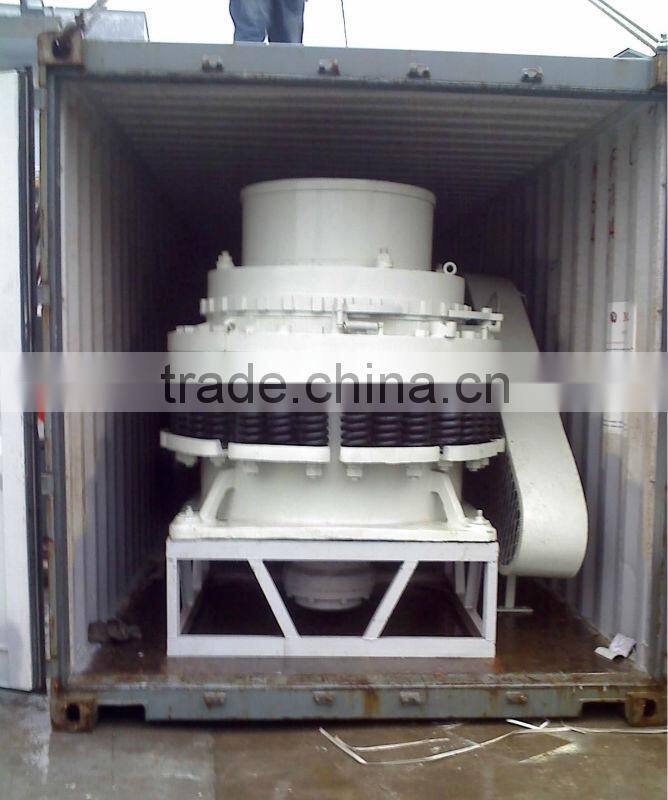

Oversea Delivery
1. We are Factory (Not Dealer):
All machineries from Henan Zhongcheng Machinery CO., LTD are made by ourselves over 20 years, with lower price, good quality and assured full after service. So please buy machine from our factory.
2. Training & Service:
♥ Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.
♥ Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
♥ After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
♥ In addition, We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. If you are new for this business, we will help you
Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
4. We’d like to recommend a suitable type for you and send you a best quotation. Some questions please inform us in your enquiry.
♥ 1. What is raw material?
♥ 2. What is feeding size and output size?
♥ 3. What is required capacity?
