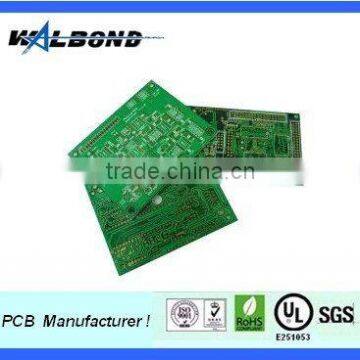

Power Saver Circuit Boards Manufacturers ,li-ion Battery Pcb
US$ 75 - 90
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Walbond
Model Number:
2L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Smartphone Pcb,quick Turn Prototype PCBUS$ 75 - 90MOQ: 1 Piece -
Electric Gold PCB Board,gold Plating Pcb,ENIG PCB,chemical Gold PCBUS$ 100 - 115MOQ: 1 Piece
-
Single Side Arcade Pcb,rigid PcbUS$ 75 - 90MOQ: 1 Piece
-
Building Intercom System PCB,gsm PcbUS$ 75 - 90MOQ: 1 Piece
-
Water Heater PCBUS$ 75 - 90MOQ: 1 Piece
Place of Origin
China
Brand Name
Walbond
Model Number
2L
Base Material
FR4
Copper Thickness
1-3 OZ
Board Thickness
0.3-3.2 mm
Min. Hole Size
0.25 mm
Min. Line Width
6mil
Min. Line Spacing
6mil
Surface Finishing
Flash gold
Specifications
1.power saver circuit boards manufacturers2.good quality,reasonable price;
3.quicker delivery;
4.better logistic service;
Company information
We can manufacture PCB in higher quality, more competitive price, quicker delivery and better logistic service…Welcome to send us RFQ!
We have passed ISO9001 Quality Management System Certification and have obtained UL, RoHS and TS16949 certificates in accordance with American and European customers' standards. With constant efforts, our sales network has spread over five continents, such as America, Romania, South Africa, Japan and Israel.
Company structure
Specification
This form is of my company's process capacity for your reference, for more messages, pls contact with us freely!
| Item | Specification | ||
| Material | FR-4 / Hi-Tg FR-4 / Lead free Materials(RoHS Compliant)/CEM-3/CEM-1/Aluminium | ||
| Layer | single layer,double layer,multi-layer(4-10) | ||
| Board Thickness | 0.3mm-3.0mm,+/-0.1mm(tolerance) | ||
| Copper Thickness | 1/2OZ-3OZ (35um to 105um),+/-8um(tolerance),purity 99.5% | ||
| Impedance Control | ±10% | ||
| Bow and Twist MAX. | 0.75%(SMT) | ||
| Anti-strip | 0.88N/mm | ||
| Resistance | ≤20Ω | ||
| Reactance | 500V | ||
| Min. Value | |||
| Min. Trace/Space Width | 6 mil,+/-0.15mm(tolerance) | ||
| SMD Pitch | 10 mil | ||
| BGA Pitch | 20 mil | ||
| Min Pad Space | 4mil(SMT) | ||
| Plating Copper Thickness | 15um | ||
| Hole | |||
| Hole Size | 0.25mm--6.2mm | ||
| Hole Position Tolerance | ±0.1mm | ||
| PTH/NPTH Tolerance | ±0.15mm(dia.=0.4-1.4mm) | ||
| Pad Tolerance | ±0.1mm(dia.≥0.6mm) | ||
| Pad to hole/to pad Tolerance | ±0.05mm/±0.2mm | ||
| Solder Mask | |||
| Pad no Open | soldermask must cover all on both side, reject tin on pad
|
||
| Pad Open | reject soldermask inside the hole on both side
|
||
| Solder Mask Thickness | 0.7mil,raised H≤0.05
|
||
| Colour | green,blue,red,yellow,black,white(LPI/MATT.,UL 94 V0 approved) | ||
| Surface Finish | |||
| HAL | tin height≤0.05mm
|
||
| ENIG | Nickel 3-7um,gold:0.5-0.7um | ||
| OSP/flash gold | 0.2-0.5um | ||
| Pealable mask | cover all on pad,thickness≥0.20mm
|
||
| Carbon Ink | cover all on trace,Value≤30Ω
|
||
| Outline | |||
| Outline Tolerance | ±0.2mm | ||
| Beveling | 30°,45° | ||
| V-cut position/depth | ±0.2mm(length≤100mm)/±0.2mm | ||
| Punch | ±0.1mm | ||
| E-testing pass percent | 97% pass for the first time,+/-2%(tolerance) | ||
| Certificate | SGS,ISO,ROHS,UL, | ||
