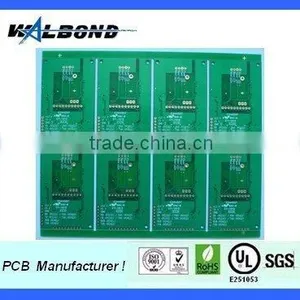

GSM Control PCB

GSM Control PCB photo-1
US$ 75 - 90 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Walbond
Model Number:
2-L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Walbond
Model Number 2-L
Base Material FR4/CEM-3/CEM-1
Copper Thickness 1-3OZ
Board Thickness 0.3-3.2mm
Min. Hole Size 0.25mm
Min. Line Width 6mil
Min. Line Spacing 6mil
Surface Finishing Flash gold/gold plating

Specifications

1.2L hdd PCB;
2.good quality,reasonable price;
3.quicker delivery;
4.better logistic service;
5.UL,SGS,ROHS,ISO9000.

We can manufacture PCBin higher quality, more competitive price, quicker delivery and better logistic service…Welcome to send us RFQ!



This form is of my company's process capacity for your reference, for more messages, pls contact with us freely!

Item Specification
Material FR-4 / Hi-Tg FR-4 / Lead free Materials(RoHS Compliant)/CEM-3/CEM-1/Aluminium
Layer single layer,double layer,multi-layer(4-10)
Board Thickness 0.3mm-3.0mm,+/-0.1mm(tolerance)
Copper Thickness 1/2OZ-3OZ (35um to 105um),+/-8um(tolerance),purity 99.5%
Impedance Control ±10%
Bow and Twist MAX. 0.75%(SMT)
Anti-strip  0.88N/mm
Resistance ≤20Ω
Reactance  500V

Min. Value
Min. Trace/Space Width  6 mil,+/-0.15mm(tolerance)
SMD Pitch  10 mil
BGA Pitch  20 mil
Min Pad Space  4mil(SMT)
Plating Copper Thickness 15um

Hole
Hole Size 0.25mm--6.2mm
Hole Position Tolerance ±0.1mm
PTH/NPTH Tolerance ±0.15mm(dia.=0.4-1.4mm)
Pad Tolerance ±0.1mm(dia.≥0.6mm)
Pad to hole/to pad Tolerance ±0.05mm/±0.2mm

Solder Mask
Pad no Open  soldermask must cover all on both side, reject tin on pad   GSM Control PCB
Pad Open  reject soldermask inside the hole on both side               GSM Control PCB
Solder Mask Thickness 0.7mil,raised H≤0.05GSM Control PCB
Colour  green,blue,red,yellow,black,white(LPI/MATT.,UL 94 V0 approved)

Surface Finish
HAL tin height≤0.05mmGSM Control PCB
ENIG Nickel  3-7um,gold:0.5-0.7um
OSP/flash gold  0.2-0.5um
Pealable mask cover all on pad,thickness≥0.20mmGSM Control PCB
Carbon Ink cover all on trace,Value≤30ΩGSM Control PCB

Outline
Outline Tolerance ±0.2mm
Beveling 30°,45°
V-cut position/depth ±0.2mm(length≤100mm)/±0.2mm
Punch ±0.1mm

E-testing pass percent 97% pass for the first time,+/-2%(tolerance)

Certificate  SGS,ISO,ROHS,UL,







Welcome to visitWALBOND !

 GSM Control PCB
