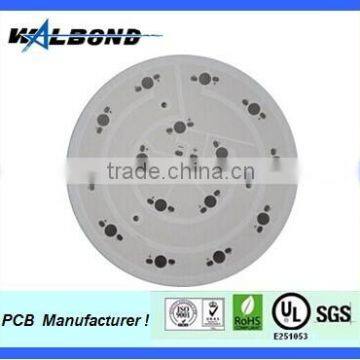

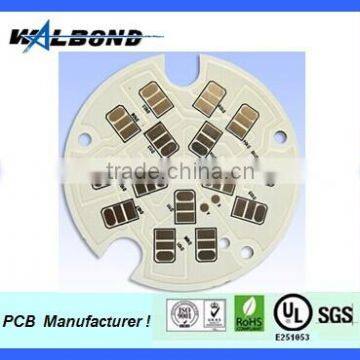

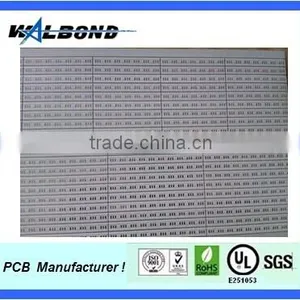

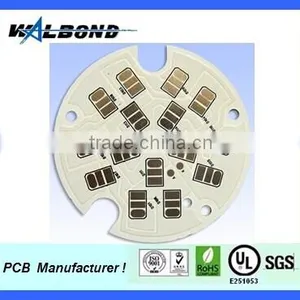

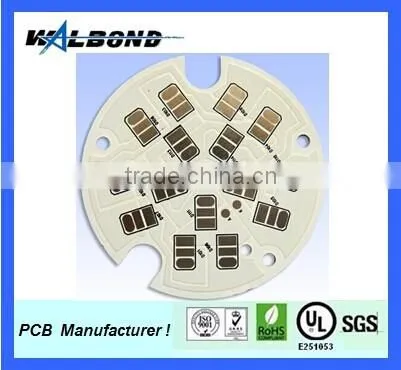

Aluminium Pcb,strip Led Pcb,led Mcpcb
US$ 100 - 120
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Walbond
Model Number:
1-L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Alu PCB,Aluminum Base PCBUS$ 100 - 120MOQ: 1 Piece -
Metal Core Aluminum PCB,single Side Mcpcb,single Layer PCB ManufacturerUS$ 100 - 120MOQ: 1 Piece
-
High Power Led Street Light Aluminum PcbUS$ 0.1 - 10MOQ: 1 Piece
-
PCB Manufacturer in China,PCB SupplierUS$ 0.1 - 10MOQ: 1 Piece
-
Metal Core LED Aluminium PCB Board,pcb ConnectorUS$ 0.1 - 10MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Walbond
Model Number
1-L
Base Material
Aluminum
Copper Thickness
1OZ
Board Thickness
1.6MM
Min. Hole Diameter
0.1MM
Min. Line Width
8MIL
Min. Line Spacing
8MIL
Surface Finishing
HAL
Specifications
1.1L aluminum PCB;2.good quality,reasonable price;
3.quicker delivery;
4.better logistic service;
5.UL,SGS,ROHS,ISO9000
Company Information
We can manufacture PCB in higher quality, more competitive price, quicker delivery and better logistic service…Welcome to send us RFQ!
We have passed ISO9001 Quality Management System Certification and have obtained UL, RoHS and TS16949 certificates in accordance with American and European customers' standards. With constant efforts, our sales network has spread over five continents, such as America, Romania, South Africa, Japan and Israel.
Specification
| Item | Specification | ||
| Material | FR-4 / Hi-Tg FR-4 / Lead free Materials(RoHS Compliant)/CEM-3/CEM-1/Aluminium | ||
| Layer | single layer,double layer,multi-layer(4-10) | ||
| Board Thickness | 0.3mm-3.0mm,+/-0.1mm(tolerance) | ||
| Copper Thickness | 1/2OZ-3OZ (35um to 105um),+/-8um(tolerance),purity 99.5% | ||
| Impedance Control | ±10% | ||
| Bow and Twist MAX. | 0.75%(SMT) | ||
| Anti-strip | 0.88N/mm | ||
| Resistance | ≤20Ω | ||
| Reactance | 500V | ||
| Min. Value | |||
| Min. Trace/Space Width | 6 mil,+/-0.15mm(tolerance) | ||
| SMD Pitch | 10 mil | ||
| BGA Pitch | 20 mil | ||
| Min Pad Space | 4mil(SMT) | ||
| Plating Copper Thickness | 15um | ||
| Hole | |||
| Hole Size | 0.25mm--6.2mm | ||
| Hole Position Tolerance | ±0.1mm | ||
| PTH/NPTH Tolerance | ±0.15mm(dia.=0.4-1.4mm) | ||
| Pad Tolerance | ±0.1mm(dia.≥0.6mm) | ||
| Pad to hole/to pad Tolerance | ±0.05mm/±0.2mm | ||
| Solder Mask | |||
| Pad no Open | soldermask must cover all on both side, reject tin on pad
|
||
| Pad Open | reject soldermask inside the hole on both side
|
||
| Solder Mask Thickness | 0.7mil,raised H≤0.05
|
||
| Colour | green,blue,red,yellow,black,white(LPI/MATT.,UL 94 V0 approved) | ||
| Surface Finish | |||
| HAL | tin height≤0.05mm
|
||
| ENIG | Nickel 3-7um,gold:0.5-0.7um | ||
| OSP/flash gold | 0.2-0.5um | ||
| Pealable mask | cover all on pad,thickness≥0.20mm
|
||
| Carbon Ink | cover all on trace,Value≤30Ω
|
||
| Outline | |||
| Outline Tolerance | ±0.2mm | ||
| Beveling | 30°,45° | ||
| V-cut position/depth | ±0.2mm(length≤100mm)/±0.2mm | ||
| Punch | ±0.1mm | ||
| E-testing pass percent97% pass for the first time,+/-2%(tolerance) Certificate SGS,ISO,ROHS,UL, | |||
