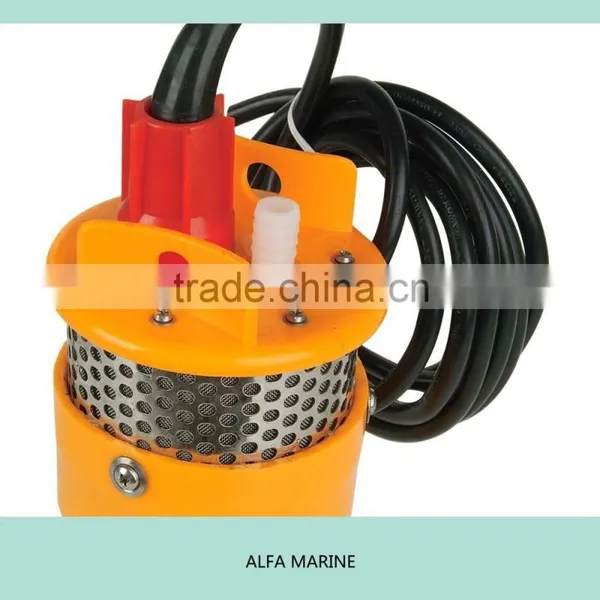

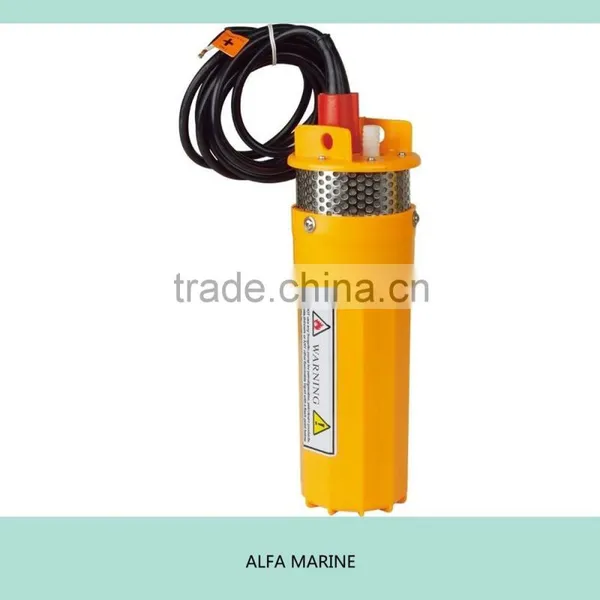

DC 24V Portable Submersible Deep Well Pump Solar DC Battery Driven Pump
This pump offers a solution to your remote water needs
Specifications:
Voltage: 24V DC
Design: 3-Chamber Positive Displacement Diaphragm Pump
Flow Rate: 1.6 GPM (6 LPM)
Fitting: 1/2" Barbed Fitting
Max. Amps: 4A @ 24v
Max. Lift: 230 ft
Max. Submersion Depth: 100 ft
Inlet Screen: 50 Micron Stainless Steel Inlet Screen
Existing Power Cord: 9 ft
Dimensions L x W x H (in.): 4.09" x 4.09" x 12.95"
Product Information:
Offers a solution to your remote water needs.

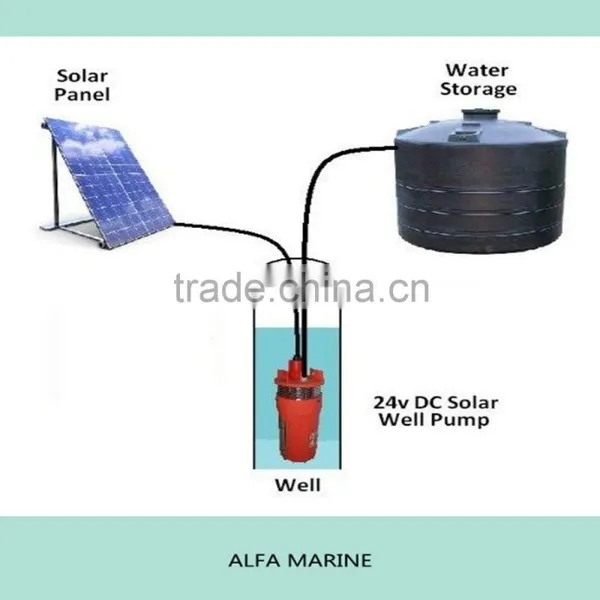

Designed to be used with solar panels and 24v battery systems
This means Easy Hookup to most any existing solar panels or wind generator systems.
Can be used with or without components such as voltage controllers.
Can be used for livestock watering, irrigation, ponds, remote homes and cabins.
Unique water blocked cable connector is impervious to water leakage and condensation problems preventing water-wicking.
This pump can also be run on a 12V battery system with the same level of suction lift, but flow rate will approximately be cut in half. (not recommended)
Other Information:
Use with solar panels and 24v battery systems
Water blocked cable connector is impervious to water leakage and condensation
Fits 4.09 in. dia. and larger wells
Accepts a variety of jacketed cables from your power source
Runs dry without damage

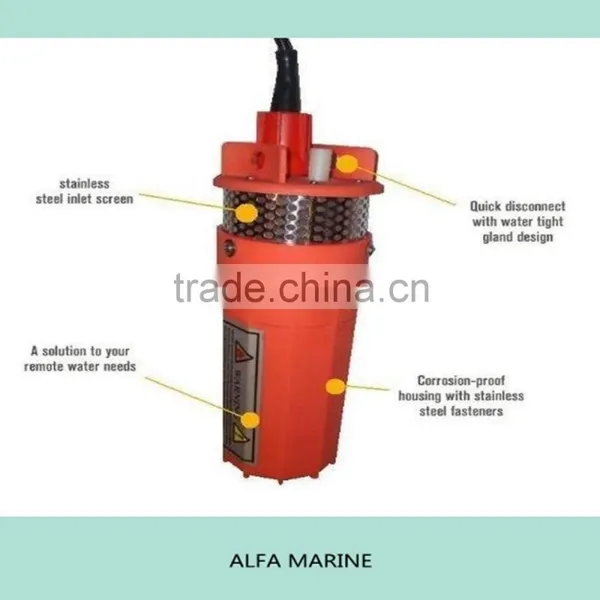

50 mesh stainless steel inlet screen
Corrosion-proof housing with stainless steel fasteners
Draws 4 Amps at 24v
Application:
