Home > Electrical & Electronics > Switch > Rocker Switch > NEW Marine 8 Gang LED Illuminated Check Pattern Rocker Switch Panel
NEW Marine 8 Gang LED Illuminated Check Pattern Rocker Switch Panel
Negotiable
MOQ: 40 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Amarine-made
Model Number:
AM-AP8J
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 Gang Rocker Switch 12V Socket Voltmeter PanelNegotiableMOQ: 40 Pieces -
DC12V 4 Gang Switch PanelNegotiableMOQ: 60 Pieces
-
VOLTMETER BATTERY TEST PANELNegotiableMOQ: 100 Pieces
-
Bilge Pump Switch Panel With Breaker ProtectionNegotiableMOQ: 100 Pieces
-
Waterproof With Light On/Off Boat Marine SPST 3 Blue LED Rocker SwitchNegotiableMOQ: 50 Pieces
Place of Origin
Zhejiang, China
Brand Name
Amarine-made
Model Number
AM-AP8J
Max. Current
10A\20A
Max. Voltage
12V\24V
Mechanical Life
10000cycles

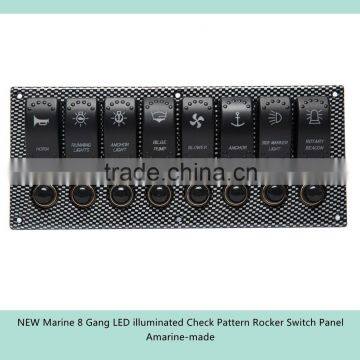

NEW Marine 8 Gang LED illuminated Check Pattern Rocker Switch Panel
Good design,perfect for your machine
High quality,Made of ABS
With rubber seal-cap to keep it water-tight,best for marine
Overload protection
Competitive price
With CE RoHs approve
SplashProof,anti-corrosion
Easy to install,can be installed horizontally or vertically
Specification:

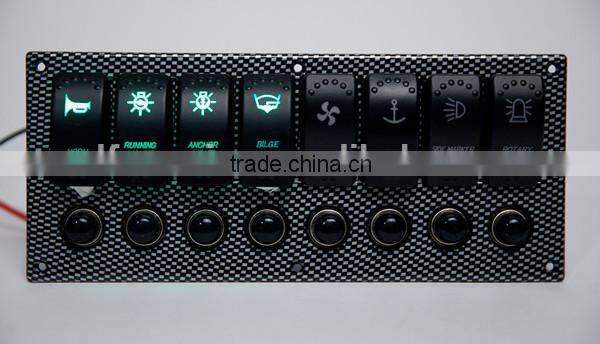

8-30V Waterproof LED Backlight 8 Gang Switch Panel
Material Description:ABS
Material Description:ABS
Led:Green/bule(Color aberration)

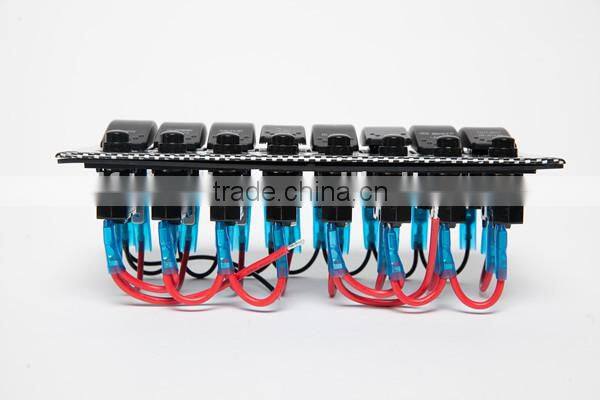

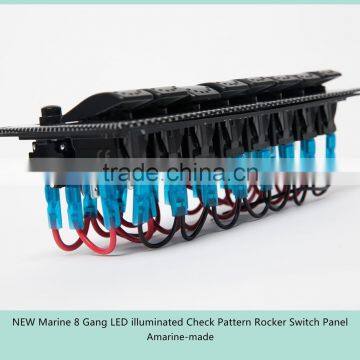

Installation:Pre-wired
Switches Available:8 Gang
Amp Rating per circuit:15amp Max
Rocker Switch:8
Breaker:6(5A x 4;10A x 2;15A x 2)
Loop Circuit:ON-OFF
Switch System: Water-resistant enclosed Rocker switch
Rating:DC 12V 20A,24V 10A
Dielectric Strength:AC 1500V 1minute
Operating Temperature:-25degree to 80degree
Electrical Life:10000 make and break cycles at full load
IP Rating:IP68
Dimensions:9.25"x3.94"
Installation:Pre-wired
Switches Available:8 Gang
Amp Rating per circuit:15amp Max
Rocker Switch:8
Breaker:6(5A x 4;10A x 2;15A x 2)
Loop Circuit:ON-OFF
Switch System: Water-resistant enclosed Rocker switch
Rating:DC 12V 20A,24V 10A
Dielectric Strength:AC 1500V 1minute
Operating Temperature:-25degree to 80degree
Electrical Life:10000 make and break cycles at full load
IP Rating:IP68
Dimensions:9.25"x3.94"
Included:
- (1) 8-Gang LED Switch Panel
- (1) Silicone Gasket
- (6) Screws
- (6) Wire Connectors UL/1015
- (6) Breakers

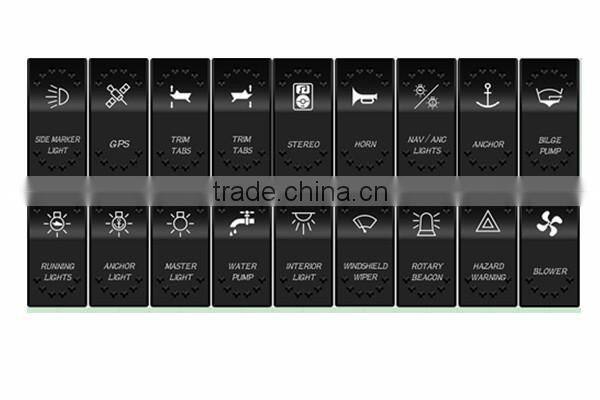

Rocker Switch Cover Optional
