VOLTMETER BATTERY TEST PANEL
Negotiable
/ Piece
100 Pieces(Min.Order)
- 30000 Piece / Pieces per Month
- SHANGHAI/NINGBO
- Credit Card
You May Like
-
Bilge Pump Switch Panel with Breaker Protection
-
Waterproof With Light On/Off Boat Marine SPST 3 Blue LED Rocker Switch
-
New Boat/Marine/RV 8 Gang Aluminum LED Rocker Switch Panel & Circuit Breakers
-
Marine Boat Rocker Switch Panel
-
Marine Electric LED Toggle Switch Panel 6 Gang
-
Marine Electric Black 2-Row 3 Gang Compact LED Toggle Switch Panel Merit Socket
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Amarine-made | |
| Model Number | AM-TV1-4 | Max. Current | 10A\20A | |
| Max. Voltage | DC30V AC250V | Mechanical Life | 10000cycles |
Product Description

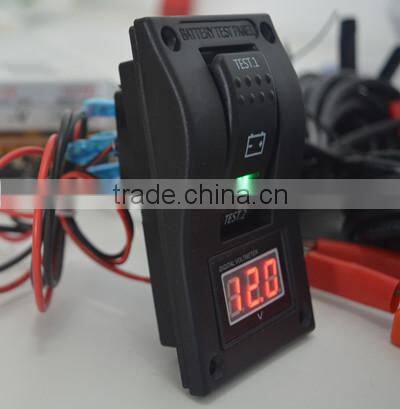

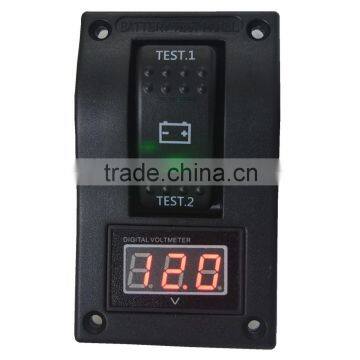

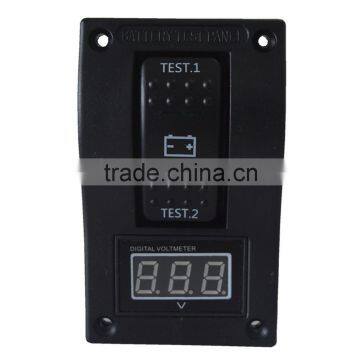

VOLTMETER BATTERY TEST PANEL
Specifically designed for marine and automotive applications
UV resistant contoured plastic panel
3 position (TEST.1 / Off / TEST.2) LED illuminated rocker switch
With rubber seal-cap to keep it water-tight,best for marine
Overload protection
UL approved
Easy to install,can be installed horizontally or vertically
Specification:
Waterproof LED Backlight 1 Gang Switch Panel
Material Description: ABS
Material Description: ABS
Led: Green
Installation:Pre-wired
Switches Available:1 Gang
Amp Rating per circuit:10amp Max
Rocker Switch:1
Switches Available:1 Gang
Amp Rating per circuit:10amp Max
Rocker Switch:1
Breaker:1(10A x 1)
Loop Circuit:1(ON-OFF-ON);
Loop Circuit:1(ON-OFF-ON);
Switch System: Water-resistant enclosed Rocker switch
Rating:DC 12V 20A,24V 10A
Dielectric Strength:AC 1500V 1minute
Operating Temperature:-25degree to 80degree
Electrical Life:10000 make and break cycles at full load
IP Rating:IP68
Rating:DC 12V 20A,24V 10A
Dielectric Strength:AC 1500V 1minute
Operating Temperature:-25degree to 80degree
Electrical Life:10000 make and break cycles at full load
IP Rating:IP68
UL approved
Dimensions: 100mmx60mm
Cutout required: 82mm x 42mm
Rating: Bound:5-30V DC
