Water Turbine Generators for Home Use / Small Water Turbine Generators

Micro Inclined-Jet hydro turbine generator

                                           water turbine generators

 Micro inclined-jet hydro turbine generator mainly consists of nozzle, runner and the supporting parts. It is suitable for places with high water head but small water flow, such as mountain area where has scattered water source. It requires 7-40 meters water head to operate.

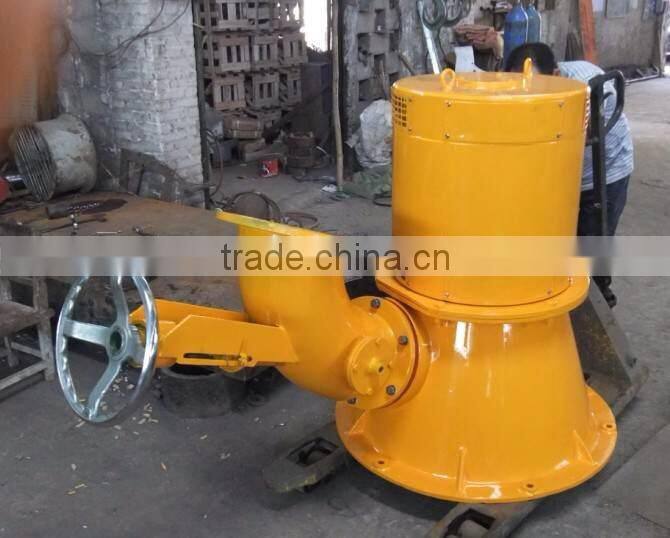

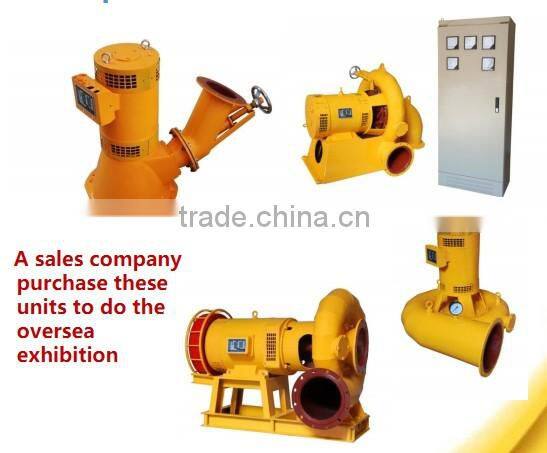

Picture of  water turbine generators

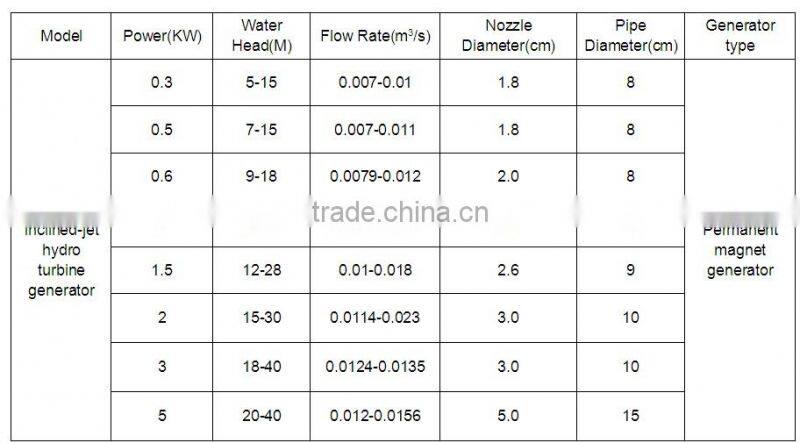

  Water head and flow requirement of  water turbine generators

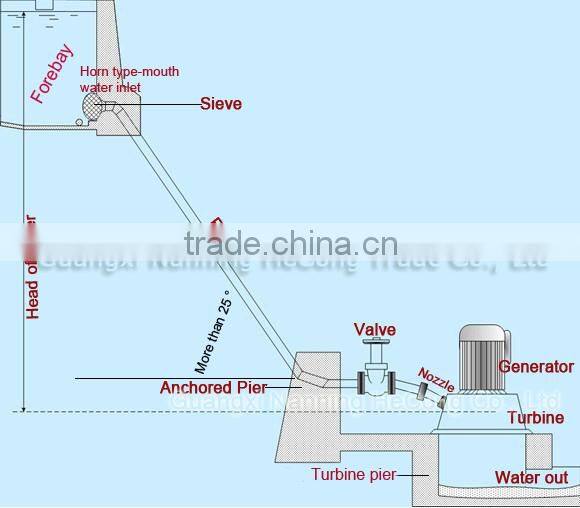

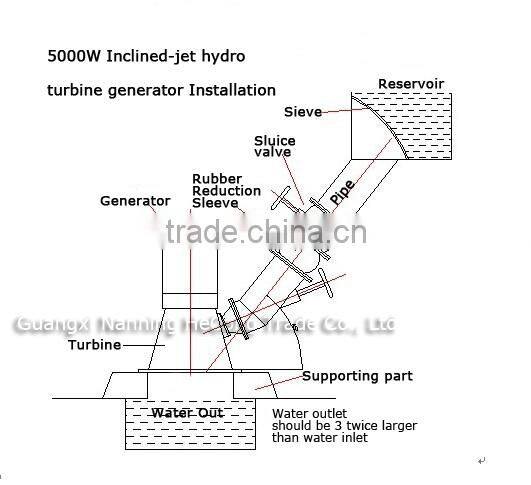

Working principle and installation of  water turbine generators

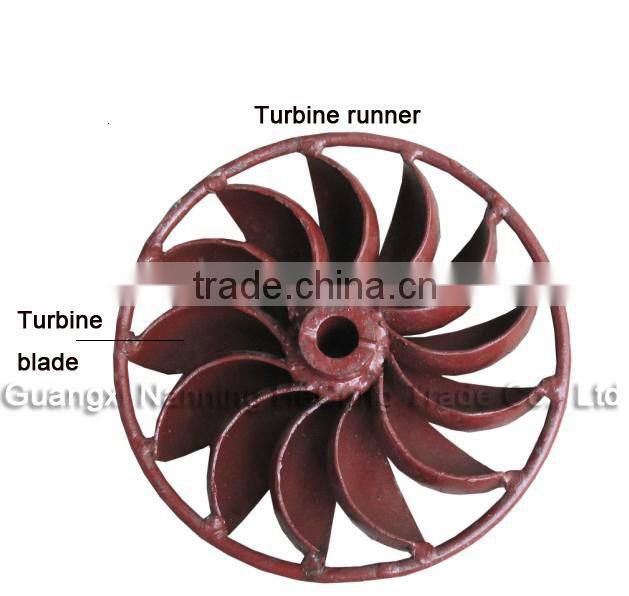

Spare parts of  water turbine generators

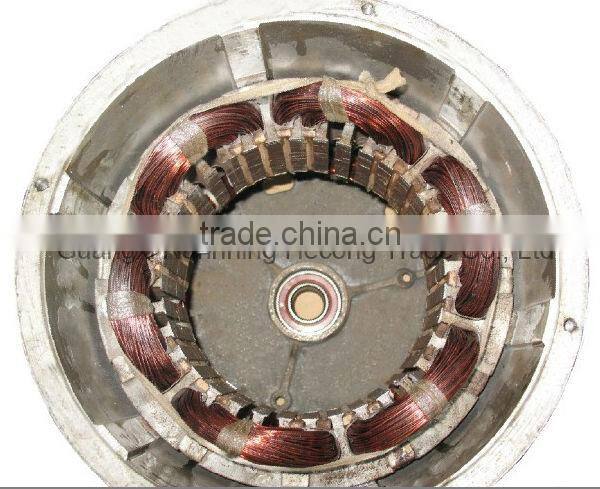

                              Generator stator

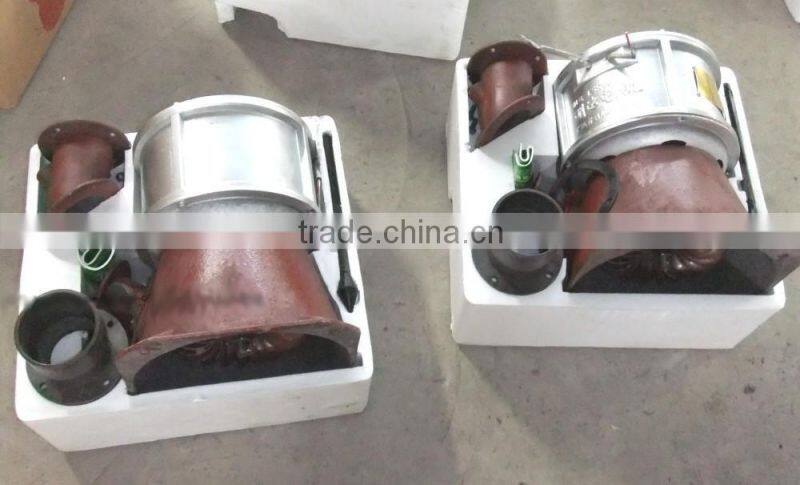

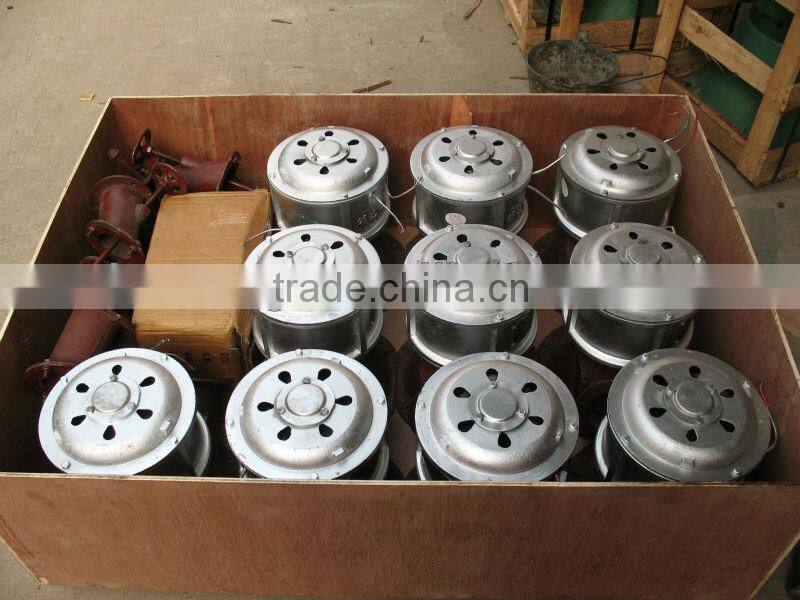

 Packing information of  water turbine generators

For any further information and requirement pls feel free to contact me, we will always here for you.
