Specifications
5KW micro hydro turbine generator1. For home used/industry
2. Water head:20-50m
3. Power output: 5KW
4. 220V/400V
5KW micro hydro turbine generator
Features:
1) Rust-Proofing and corrosion resistant with aluminum alloy shell material and copper wire stator coil
2) Long service life
3) High efficiency
4) Suitable for high water head
5) Generator: Brushless

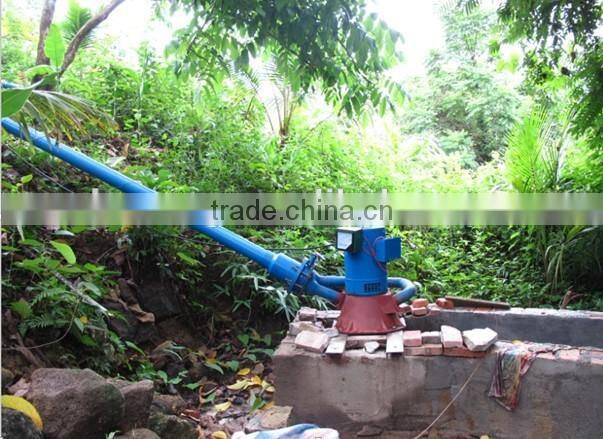

Picture of 5KW micro hydro turbine generator

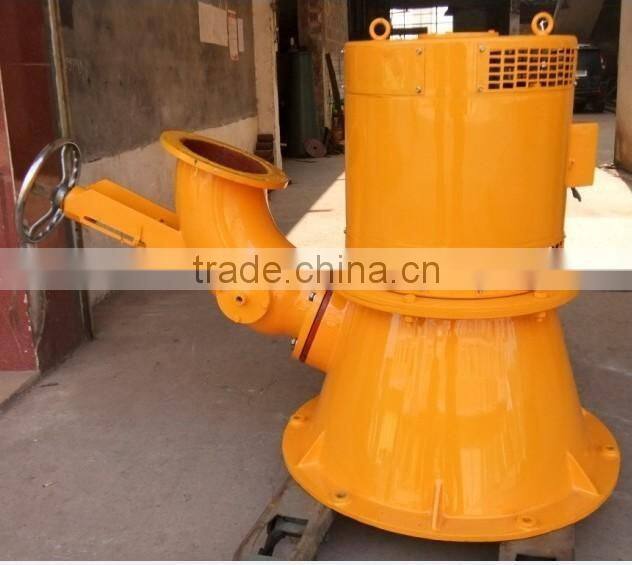

Vertical Turgo turbine

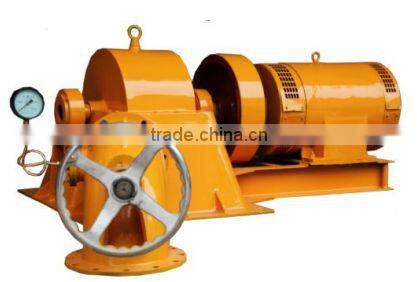

Horizontal Turgo turbine

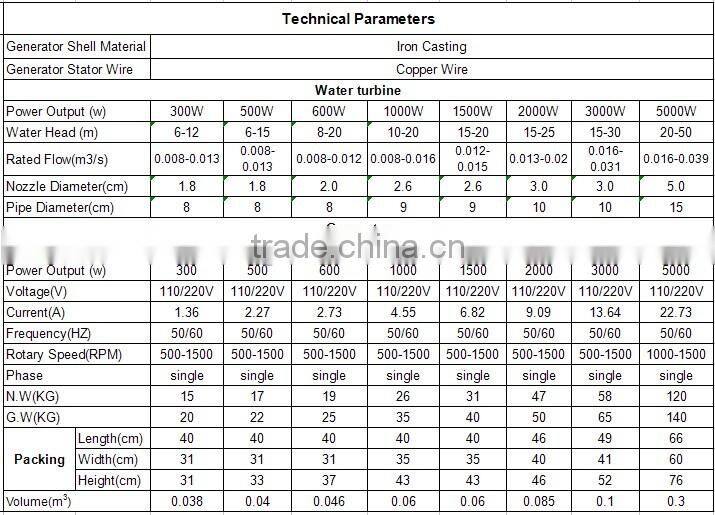

Technical parameters of 5KW micro hydro turbine generator :

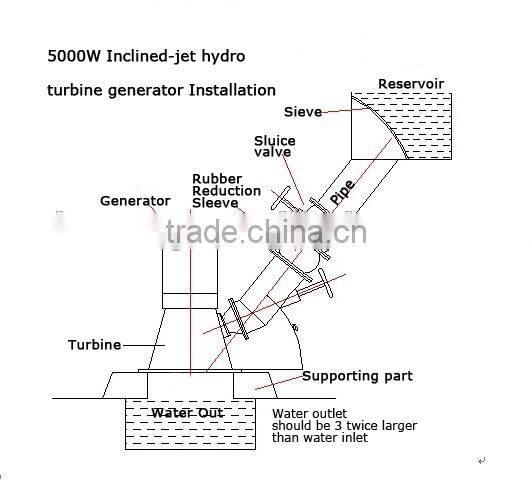

Installation darwing of 5KW micro hydro turbine generator
Packing details of 5KW micro hydro turbine generator
We also providing different kinds of water turbine generator:
Francis hydro turbine generator
Pelton hydro turbine generator
Inclined-jet hydro turbine generator
Cross flow hydro turbine generator
Tubular hydro turbine generator
Impulse type hydro turbine generator
Synchronous hydro turbine generator
Send Inquiry to This Supplier
