Home power generator

FOB Price

USD $890 - $98,600 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangxi, China		Brand Name	HC
Model Number	HC-S04		Type	Other, Home power generator

Product Description

Specifications

Home power generator
turbine power: 1kw.3kw.5kw.10kw.15kw
Flow: 0.021M3/S to 0. 2M3/S
Head: 1M to 6m

Description of Home power generator

The micro hydro power axial flow (vertical axis) turbine generator unit consists of a whole generator and turbine with non-adjustable blades on a common shaft. It’s suitable for places with low head and small flow, for example, the bank of a small river or near the base of a small dam. It requires 1 meter and 6 meters of head (vertical drop) to operate.

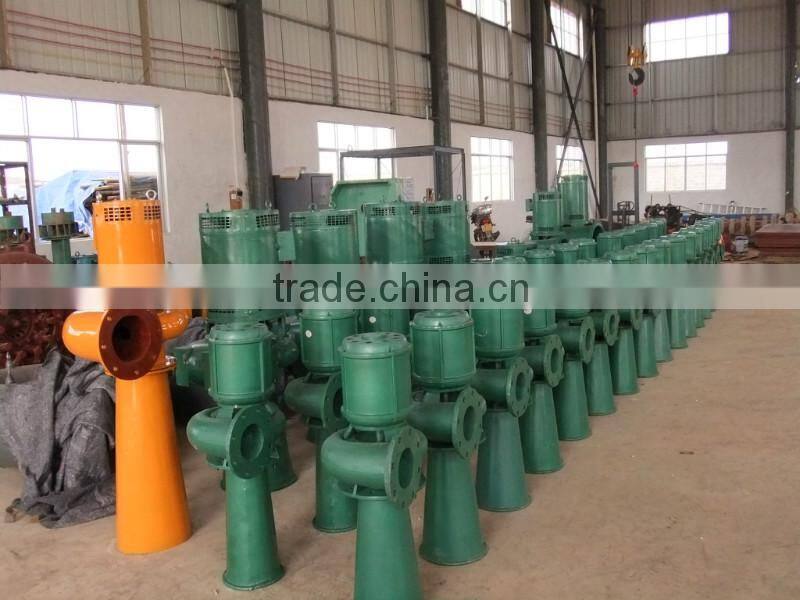

Picture of Home power generator

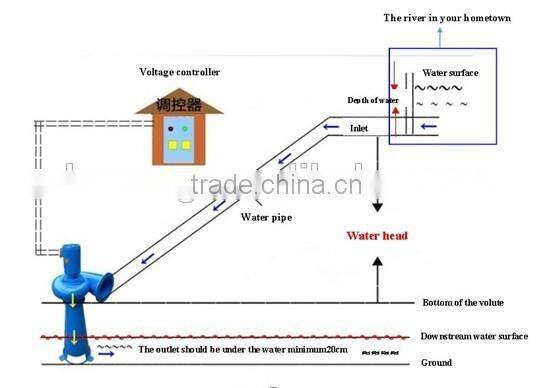

Working principle of Home power generator

The channel brings the water from the dam to the turbine, then the turbine blades are funded by the water. After the water has given up its energy to the turbine, it drops down into the draft tube (made by iron or concrete). So it's the sucking of the water that spins the blades to convert the energy of flowing water into mechanical energy. The mechanical energy moves the generator to produce electricity.

The greater the head of the water above the turbine, the more energy the water can use to spin a turbine (which in turn drives a generator). The greater the quantity of water, the greater the turbine may be spun, and the greater the power output of the generator.

Technical Parameter of Home power generator

Model	Items	Parameters
	Water turbine
HC-S03 *Home power generator*	Power Output (w)	300	500	600	1000	1500	2000	3000	5000
	Rated Head (m)	5-15	7-15	9-18	10-25	12-28	15-30	18-40	20-40
	Rated Flow(cbm/s)	0.007-0.01	0.007-0.011	0.0079-0.012	0.009-0.015	0.01-0.018	0.01140-0.023	0.0124-0.0135	0.012-0.0156
	Nozzle Diameter(cm)	1.8	1.8	2.0	2.6	2.6	3.0	3.0	5.0
	Pipe Diameter(cm)	8	8	8	9	9	10	10	15
	Generator
	Type	Permanent magnet
	Power Output (w)	300	500	600	1000	1500	2000	3000	5000
	Voltage(V)	220 Alternating Current	220 Alternating Current	220 Alternating Current	220 Alternating Current	220 Alternating Current	220 Alternating Current	220 Alternating Current	220 Alternating Current
	Current(A)	1.37	2.27	2.73	4.55	6.82	9.09	13.64	22.73
	Frequency(HZ)	50	50	50	50	50	50	50	50
	Rotary Speed(RPM)	500-1500	500-1500	500-1500	500-1500	500-1500	500-1500	500-1500	500-1500
	Phase	single	single	single	single	single	single	single	single
	Weight(kgs) (without packing)	15	17	21	28	30	37.5	48	133
Packing	Length(cm)	36	36	44	45	45	45	47	65
	Width(cm)	27	27	34	34	38	38	40	49
	Height(cm)	26	28	38	38	43	43	50	78

Packaging & Shipping of Home power generator

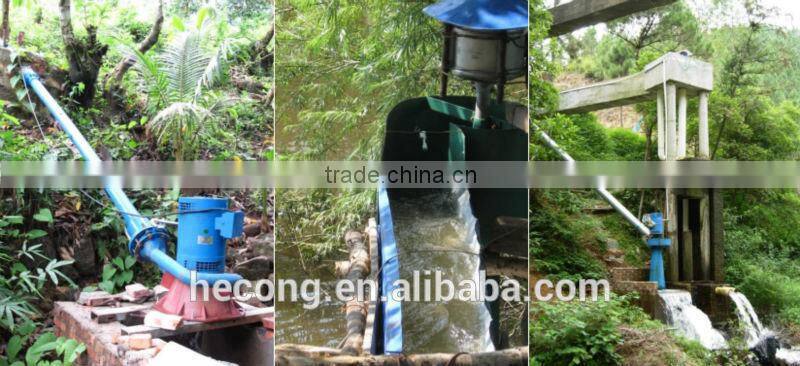

Use case of Home power generator

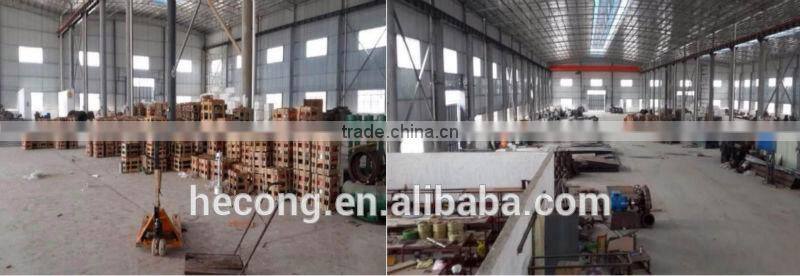

Company Information
