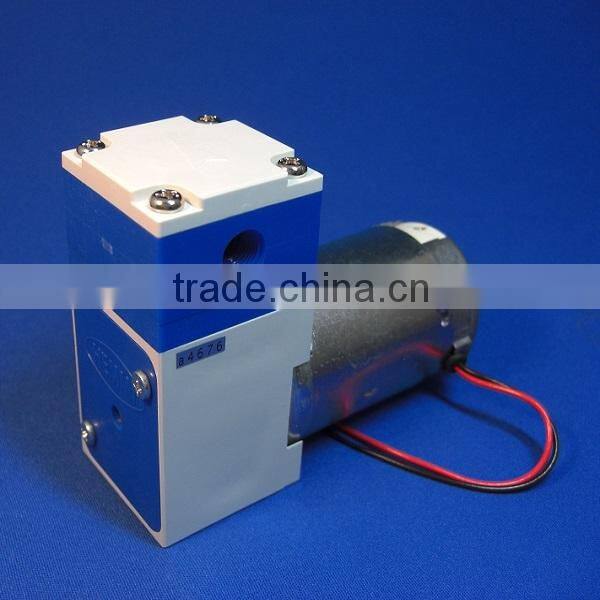

PD5100A01 diaphragm pump for chemical machine made in Japan
A pump for delivering chemicals used for disinfection and sterilization in medical and food industry.
Compact design and inexpensive.
A compact diaphragm pump for liquids, the body is made from polypropylene.
It is ideal for delivering liquids such as hypochlorous acid solution for disinfection and cleaning
of food and medical devices.
Our PD3300A01/3600A01 high-end models are able for delivery over 1,000ml/min (in unloading state).
PD5100A01 Specifications
| Fluid Types | air, water, hypochlorous acid solution and other liquid | ||
| Wetted Materials | PP, FKM, PTFE | ||
| Maximum Discharge Rate | over 1,000ml/min (water) | ||
| Maximum Discharge Pressure | 500kPaG (water) | ||
| Ultimate Vacuum Pressure | -35k PaG | ||
| Motor Type | DC Brush Motor | ||
| Rated Power | 24VDC 24 VA | ||
| Rated Torque | 29.4mN•m | ||
| Operating Temperature | 10~40℃ | ||
| Connection | Rc1/8" | ||
| Weight | approximately 500g |
Graph of PD5100A01 Flow Characteristics

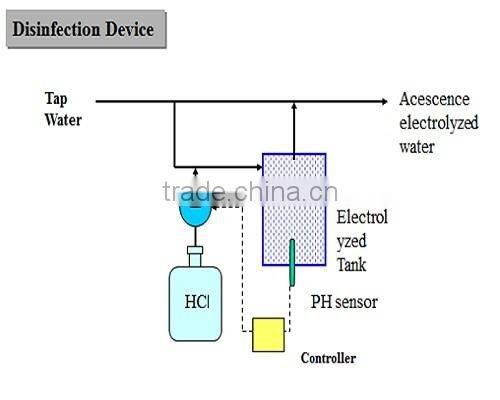

Application Example (used for disinfection device)

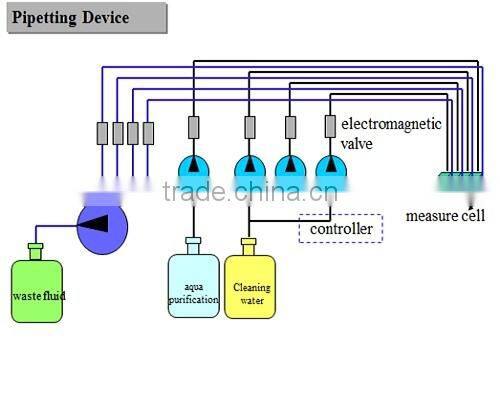

Application Example (used for Pipetting device)
Other related product (PD3300A Compact Diaphragm Liquid Pump)
Other Related Products (PD3300A diaphragm liquid pump)
Strength of Hemmi's Pump
Small to medium diaphragm pumps are optimal for medical and food insdustry. Quad-head diaphragm pump is developped for use in industrial ink-jet printer. Sampling pump is essential for gas analyzing.
Misato Plant
- Sales/production system ensures efficient management from initial procurement of order to final shipment.
- Components are cleaned by environment-friendly washing system to ensure high-quality of product.
- Wiring/Assembly/Testing are conducted in fully equipped clean-room with class of 1,000-10,000.
- Our team are ready to provide total solution from R&D, manufacturing till Quality Assurance to achieve customer's satisfaction.
ISO Certificate
2000 Acquired ISO 9001 certification
2005 Acquired ISO 14001 certification
Company Profile
| Company Name | HEMMI Slide Rule Co., Ltd. | ||
| Website | .jp | ||
| Established | April 15th, 1895 | ||
| Capital | 100million yen | ||
| Head Office | 4-4 Kanda-Surugadai, Chiyoda-ku, Tokyo | ||
| Plants | Higashimatsuyama Plant & Misato Plant | ||
| Operating Business | Design, manufacturing and sales of Printed Circuit Board, Industrial Equipment's and Analytical & Testing Devices | ||
| Branch |
Taipei Branch F11, No.156 Min Sheng East Road, Sec.3 Taipei |
||
| Staff | 90 | ||
| Affiliates | FT.Okura, Inc. | ||
| Hemmi Kigyo Co., Ltd. | |||
| http://www.hemmi.jp | |||
Business Information
| Printed Circuit Board | •circuit & pattern design | ||
| • manufacturing of printed circuit board | |||
| • components assembly | |||
| • restoration design | |||
| Industrial Equipment | • fluid controlling devices | ||
| - high precision flow rate control valves; | |||
| pressure control valves | |||
| - small diaphragm pumps | |||
| • semi-conductor manufacturing devices & related | |||
| equipment | |||
| Analytical & Testing Equipment | • catalytic testing equipment | ||
| • fuel cell testing equipment | |||
| • catalytic gas adsorption measuring equipment | |||
Displayed products selected from whole line-up are versatile for various applications.
Your enquiries and ideas are welcome.
It’s our honor to have chance to assist you and
we expect to broaden cooperation with more trusted partners.
