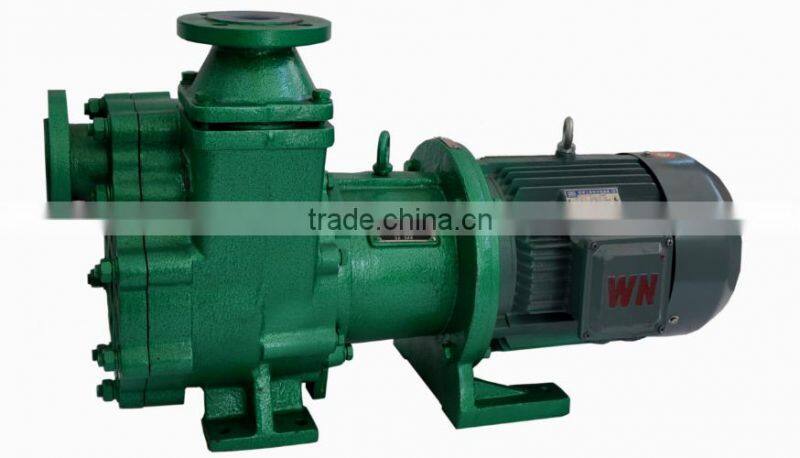

Product Image
ZMD series plastic lined selfpriming sealess magnetic drive pump is specially researched for low sump level, which transferring imflammable, explosive and volatile chemicals. Widely applicable to industries like petrochemicals, non ferrous metal metallugy, pesticide, acid and caustics, pulp production, acid pickling process, rare-earth seperation, galvanization, electronics.
Design Features
- Multi-fuction
Combines boths sealed centrifugal pump and magnetic pump excellent features, it can widely used in corrosive industry and easy for operation.
- Sealess design and free leakage
Without shaft seal and driving through by magnetic coupling, which avoid leakage.
Standard
- Production according to DIN/ISO5199/Euro pump 1979 standard.
- Flange with service-minded through holes to DIN;ANSI,BS;JIS.
Characteristic analysis
0.1 Patent advantage
| Patent no. | The name of the patent | The patent type | Available Date |
| ZL200820038727.9 | New Type Teflon Selfpriming Pump | The patent for utility model | 08/Aug./2008-07/Aug. 2018 |
| ZL200820038727.8 | New Type Teflon Magnetic Drive Pump | The patent for utility model | 08/Aug./2008-07/Aug. 2018 |
0.2 Material advantage
- Qualified Virgin Fluoroplastic
PTFE, FEP, PFA are qualified large manufacture production, safe and secure plastic , has good stability, safety and environmental protection. Please ease of use
- Bearing: NSK, SKF or local qualified brand.
0.3 Can Assembly advantage
The metal-free system does not induce any eddy currents and thus avoids unnecessary heat generation
0.4 Impeller Advantage
Closed impeller with flow-optimized vane channels: for high efficiency and low NPSH values.
The metal core is protected by a thick-walled seamless plastic lining, the large metal core can increase the mechanical strength considerably even at elevated temperature and high flow rates
0.5 SIC Bearing Advantage
The main character of SIC is extreme hardness,high-temperature ,anti-corrosion, small expansion coefficient, long useful life
Product Parameters

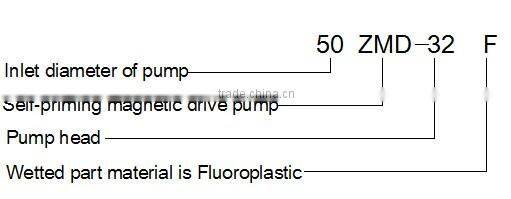

Model Identification
Model and parameter
Item |
Model |
Flow |
Head |
Efficiency |
NPSHa |
Inlet x outlet (mm) |
Self-priming height ( m) |
Self-priming time |
Speed |
Power |
Pump and motor weight |
|
1 |
40ZMD-32F |
3 |
34 |
16 |
3.00 |
40*25 |
3mxckon |
150 |
2900 |
4 |
125 |
|
*6 |
32 |
24 |
||||||||||
10 |
28 |
20 |
||||||||||
2 |
50ZMD-32F |
8 |
34 |
25 |
3.00 |
50*50 |
3 |
180 |
2900 |
5.5 |
180 |
|
*15 |
32 |
44 |
||||||||||
20 |
28 |
44 |
||||||||||
3 |
50ZMD-45F |
8 |
48 |
21 |
3.00 |
50*50 |
3 |
180 |
2900 |
7.5 |
170 |
|
*12.5 |
48 |
35 |
||||||||||
15 |
47 |
40 |
||||||||||
4 |
65ZMD-32F |
20 |
34 |
40 |
3.50 |
65*50 |
3 |
200 |
2900 |
7.5 |
200 |
|
*30 |
32 |
52 |
||||||||||
35 |
28 |
48 |
||||||||||
5 |
65ZMD-45F |
20 |
45 |
40 |
4.50 |
65*40 |
3 |
200 |
2900 |
11 |
290 |
|
*25 |
45 |
44 |
||||||||||
35 |
40 |
53 |
||||||||||
6 |
80ZMD-32F |
35 |
34 |
50 |
3.50 |
80*65 |
3 |
200 |
2900 |
11 |
280 |
|
*60 |
32 |
55 |
||||||||||
65 |
28 |
50 |
||||||||||
7 |
80ZMD-45F |
35 |
46 |
38 |
4.50 |
80*50 |
3 |
200 |
2900 |
18.5 |
320 |
|
*50 |
45 |
50 |
||||||||||
60 |
40 |
48 |
||||||||||
OEM
Factory Basic Information:
- Established in 1985, 30 years history
- Land area: 100,000m2, 2 factory division for chemical process pump production
- 1 precision foundry
- 20 Engineers R&D
Advantages
1. Research & Development: SBMC factory have a total of 20 engineer research and development team, which gives it distinct advantages in terms of product and technology upgrading.
2. Law Material Purchase:
- 28 years raw material purchasing experience
- Fully integrated supply chain
- High quality and affordable purchase sing cost
- High supplier quality management
3. Quality : ISO9001 Quality Management System
Company Show
Since from 1985, focus on magnetic drive pump and Teflon lined process pump manufacturing .
Production Process
Strictly Compliant with ISO9001 standard
Robust Service Team
Patent Certificate / Certification LOGO
Our Clients
Packaging Transportation Process
FAQ
Can you supply pump qualified with ANSI and ASME standard?Yes, our pump compliant with ISO / ASME/ANSI standard.
How can I purchase order without seeing the quality first?If it is a big order, we can provide a sample for running testing at your plant. And you can see the below our customers photos and more project reference list on.
How do you control the quality of the products?Our production is strictly according to ISO 9001 standard and factory was established in 1985, have 30 years experience in Teflon lined chemical process pumps, valves, piping and fittings.
How to customize pumps and mechanical seals ?Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
How can I pay for my items? What is the payment you can provide?Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment.
L/C at sight
1 year for main construction warranty.
How long is production lead time?Normally 25 days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7-15 days.
What is the shipping terms you can provide ?Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Who is in charge of after-sales?Inside sales. It can save customer's time and high efficiency communicate. Shuangbao has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Who is in charge of maintenance?Local agent. Client is first, if pump running has any problem on site, our local agent will arrival the plant within 24 hours.
