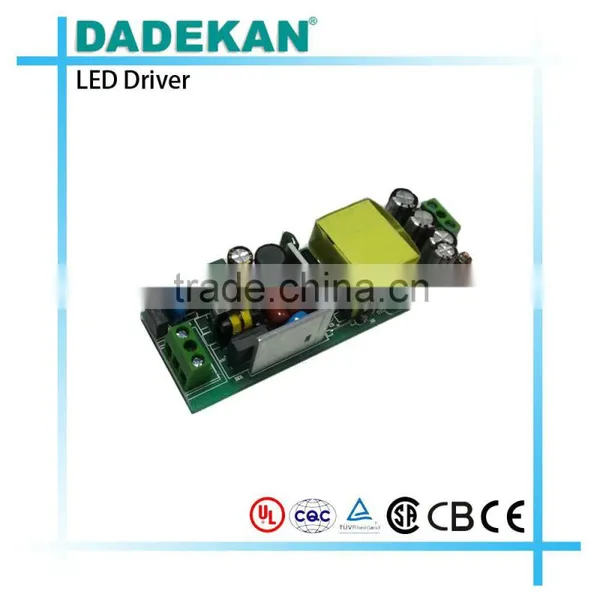

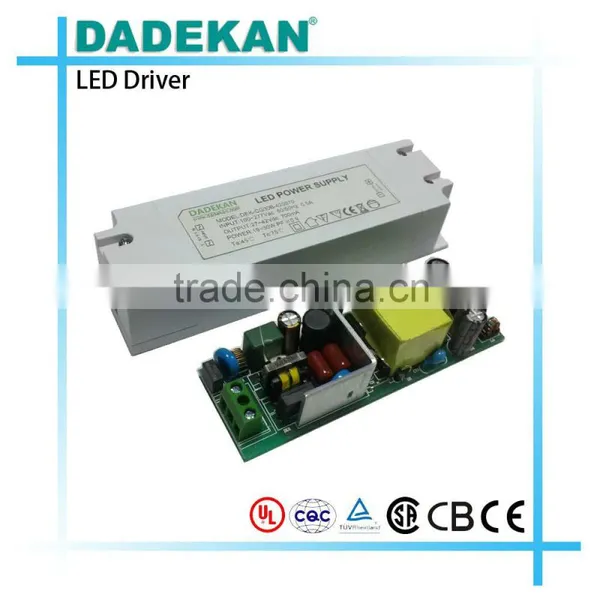

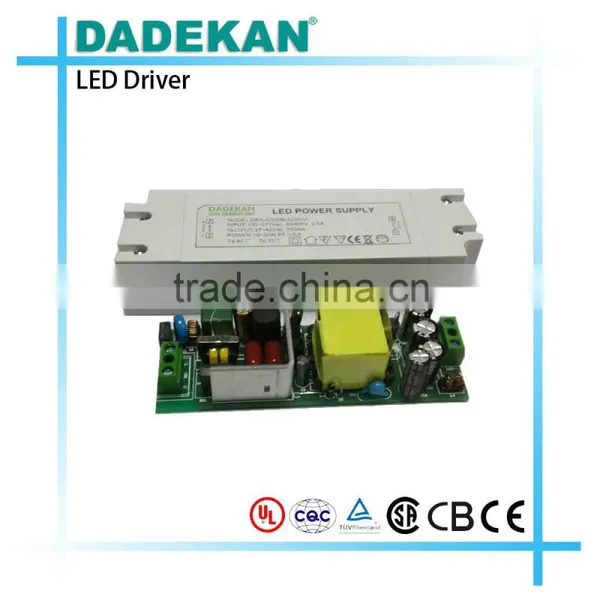

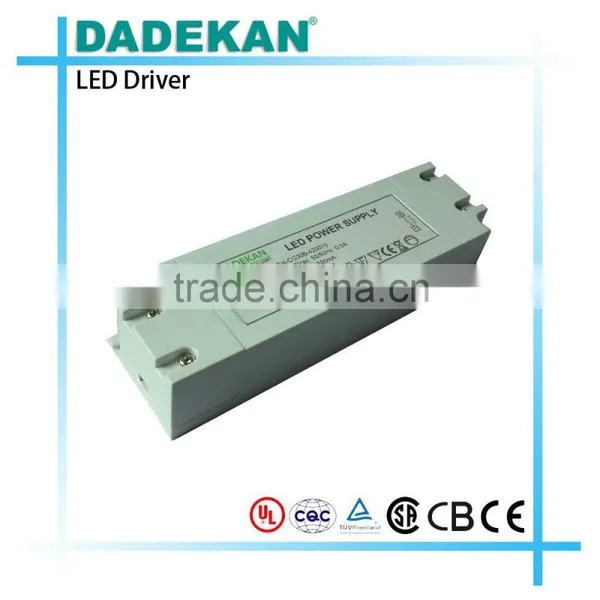

Shenzhen 700ma Constant Current LED Driver switching power supply
Application
External LED driver for LED Panel light, LED Down lamp, LED Fluorescent lamps.
MODEL |
DEK-CG30B-420070 |
||||
|
Input
|
Input Voltage |
90VAC~305VAC |
|||
Voltage Range |
100VAC~277VAC |
||||
Start-up Voltage(-25~70℃) |
90VAC |
||||
Frequency Range |
47Hz~63Hz |
||||
Power Factor(@25℃) |
>0.9@220VAC, Full Load |
||||
AC Current (@25℃) |
0.5A @100VAC Full Load |
||||
Inrush Current (@ 25℃) |
50A @277VAC Full Load |
||||
|
Output
|
Output Voltage Range |
27V~42V |
|||
Output Current |
700mA |
||||
Output Power |
17.9~30.6W |
||||
Conversion Efficiency (@25℃) |
86% @220VAC, Full Load |
||||
No-load Output Voltage |
45V Max. |
||||
Line Regulation (@-25~70℃) |
±5% |
||||
Accuracy Constant(@-25~70℃) |
±5% |
||||
Set-up Time(@25℃) |
2S Max.@100~277VAC, Full Load |
||||
Temperature Coefficient(@-25~70℃) |
±0.03%/℃ |
||||
Overshoot (@-25~70℃) |
±5% No-load Rated Voltage |
||||
Output Ripple & Noise |
0<Ta≤70℃ |
≤4.0VP-P |
|||
-25≤Ta≤0℃ |
/ |
||||
|
Protection (-25~70℃)
|
Input Electrical |
Low Voltage Protection |
/ |
||
Over Voltage Protection |
/ |
||||
Output Electrical |
Shorted Circuit Protection |
Hiccup, Auto Recovery |
|||
No-load Protection |
Constant Voltage |
||||
Over Temperature Protection |
/ |
||||
|
Environmental Requirement
|
Storage Temp. & Hum. |
-20℃~70℃; 10%~95%RH No condensing |
|||
Operating amb. Temp. & Hum. |
-10℃~45℃; 20%~90%RH No condensing |
||||
Altitude |
3000m |
||||
IPX |
/ |
||||
|
EMC |
Isolation Resistance |
Input--out: 50M OHMS |
|||
Withstand Voltage |
Input--out: 3KVAC/5mA |
||||
Ground Impedance |
/ |
||||
Safety Standards |
IEC 61347-2-13/GB19510.14/UL8750 |
||||
EMI |
CE |
EN 55015:1998,+A1:2000 +A2:2003,CLASS B |
|||
RE |
EN 55015:1998,+A1:2000 +A2:2003,CLASS B |
||||
Harmonic Current |
EN6100-3-2 |
||||
EMS |
CS |
EN61000-4-6 |
|||
RS |
EN61000-4-3 |
||||
SURGE |
EN61000-4-5 Test: Power Line to Line:500V |
||||
|
Voltage fluctuations&flicker
|
EN61000-3-3 |
||||
Power Frequency Harassment |
EN61000-4-8 |
||||
EFT |
EN61000-4-4 |
||||
Other |
Dimensions (L * W * H) |
145.5mm X 43.5mm X 29mm;±1mm |
|||
Weight |
/ |
||||
Package |
/ |
||||
Cooling Method |
Ventilation Cooling |
||||
Reliability |
Burn-in |
The power supply shall go a minimum of 4 Hours burn-in test under full load condition. |
|||
MTBF Design MTBF |
20,000Hrs @25℃, MIL-HDBK-217 Method 2 Components Stress Method |
||||
Design electrolytic capacitor life |
17520Hrs @50℃ Full load and units continuously working |
||||
Note |
1.Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 2.Test spare parts: test voltage for 500 VDC, 65% RH @ 25 ℃. 3.The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. |
||||
|
Minimum Negative Load Requirements |
None |
||||
Accessories |
/ |
||||
