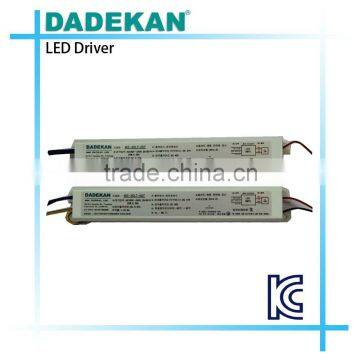

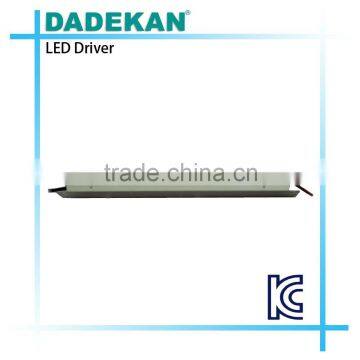

Product Name: KC Certified comply with EMC led Panel light driver
Application
External driver for LED ceiling light,down light,panel light,fluorescent lamps etc
MODEL |
WZ-30LT-057 |
||||
Input |
Input Voltage |
90vac~264vac |
|||
Voltage Range |
100Vac-240Va /47-60HZ |
||||
Start-up Voltage(-25~70℃) |
90VAC |
||||
Frequency Range |
47HZ~60HZ |
||||
Power Factor(@25℃) |
>0.94@220VAC, Full Load. |
||||
AC Current (@25℃) |
120mA@25℃, 50HZ 220Vac |
||||
Inrush Current (@ 25℃) |
10A Max. |
||||
Output |
Output Voltage Range |
30V~40V |
|||
Output Current |
570mA ± 15mA (@25℃ 560mA – 580mA)/50HZ |
||||
Output Power |
22W |
||||
Conversion Efficiency (@25℃) |
88% @full load ,220Vac |
||||
No-load Output Voltage |
46VMax. |
||||
Accuracy Constant(@-25~70℃) |
±10mA |
||||
Set-up Time(@25℃) |
<1S@220VAC |
||||
Temperature Coefficient(@-25~70℃) |
±0.03%/℃ |
||||
Surge |
Differential Mode (Line to Line): max, 1.0 KV Common Mode (Line to PE):max,2.0KV |
||||
Overshoot (@-25~70℃) |
±5% No-load Rated Voltage |
||||
Output Ripple & Noise |
-25<Ta≤50℃ |
100mA ( @Peak-to-Peak )@220VAC/50Hz |
|||
-25≤Ta≤50℃ |
976mV( @Peak-to-Peak )@220VAC/50Hz |
||||
|
Protection (-25~70℃) |
Input Electrical |
Low Voltage Protection |
/ |
||
Over Voltage Protection |
/ |
||||
Output Electrical |
Shorted Circuit Protection |
Hiccup, Auto Recovery |
|||
No-load Protection |
/ |
||||
Over Temperature Protection |
/ |
||||
|
Environmental Requirement |
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z, axes |
|||
Impact |
20G/11mS pulse,3times at each X, Y, Z axes |
||||
Storage Temp. & Hum. |
-20℃~70℃; 10%~95%RH No condensing |
||||
Operating amb. Temp. & Hum. |
-10℃~45℃; 35%~80%RH No condensing |
||||
Altitude |
3000m |
||||
IPX |
/ |
||||
EMC |
Isolation Resistance |
Input--out: 100M OHMS |
|||
Withstand Voltage |
Input--out: 3KVAC/10mA |
||||
Ground Impedance |
/ |
||||
Safety Standards |
IEC 61347-2-13/GB19510.14/UL8750 |
||||
EMC |
KS C IEC15, KS C IEC 61547 |
||||
Harmonic Current |
EN6100-3-2, Class C |
||||
EMS |
CS |
EN61000-4-6 Level 2 Class B |
|||
RS |
EN61000-4-3 Level 2 Class B |
||||
ESD |
EN61000-4-2 Level 2 |
||||
SURGE |
EN61000-4-2 Level 2 |
||||
Power Frequency Harassment |
EN61000-4-8 Level 2 |
||||
EFT |
EN61000-4-4 Level 2 |
||||
Other |
Dimensions (D* H) |
L*W*H=212mm X 33.5mm*25.5mm |
|||
Weight |
|||||
Package |
/ |
||||
Cooling Method |
Ventilation Cooling |
||||
Reliability |
Burn-in |
The power supply shall go a minimum of 4 Hours burn-in test under full load condition. |
|||
Design MTBF |
20,000Hrs @25℃, MIL-HDBK-217 Method 2 Components Stress Method |
||||
Design electrolytic capacitor life |
17520Hrs @50℃ Full load and units continuously working |
||||
Note |
1. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 2. Test spare parts: test voltage for 500 VDC, 65% RH @ 25 ℃. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. |
||||
|
Minimum Negative Load Requirements |
None |
||||
Accessories |
/ |
||||
