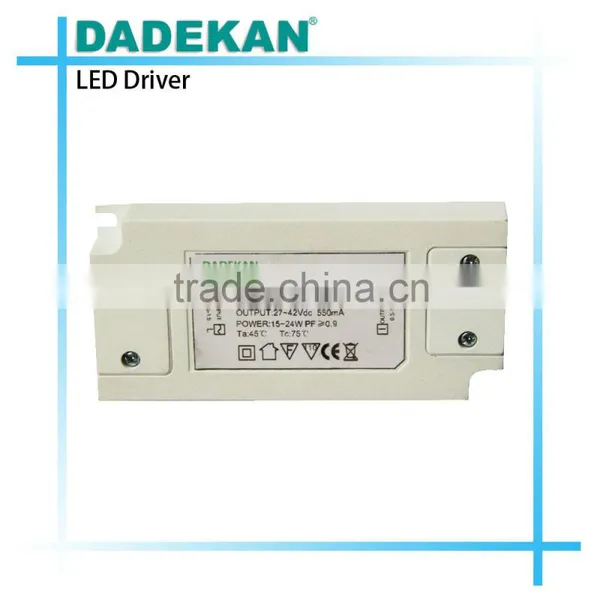

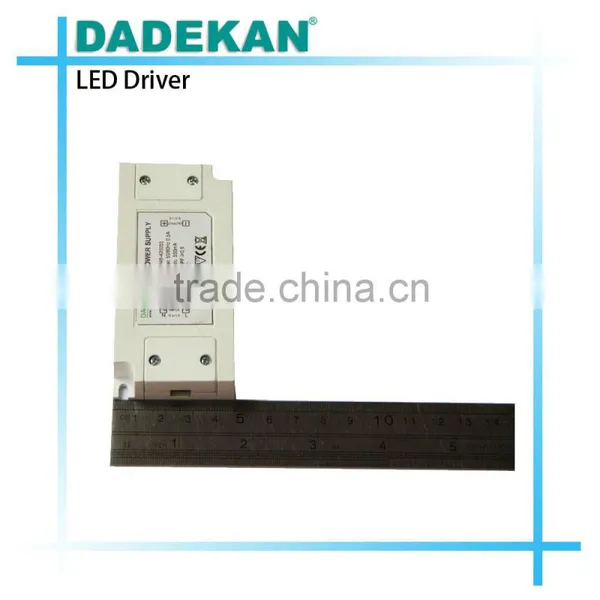

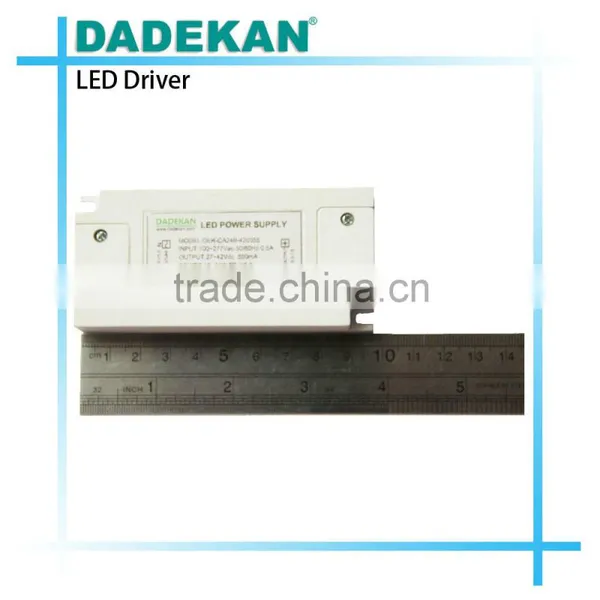

Ultra Slim 24w 42v external constant current led driver supply
Application
External LED driver for LED Panel light, LED Down lamp, LED Fluorescent lamps.
MODEL |
DEK-CA24B-420055 |
||||
Input |
Input Voltage |
90VAC~305VAC |
|||
Voltage Range |
100VAC~277VAC |
||||
Start-up Voltage(-25~70℃) |
90VAC |
||||
Frequency Range |
47Hz~63Hz |
||||
Power Factor(@25℃) |
>0.9@220VAC, Full Load |
||||
AC Current (@25℃) |
0.4A @100VAC Full Load |
||||
Inrush Current (@ 25℃) |
50A @277VAC Full Load |
||||
Output |
Output Voltage Range |
27V~42V |
|||
Output Current |
550mA |
||||
Output Power |
14~24W |
||||
Conversion Efficiency (@25℃) |
88% @220VAC, Full Load |
||||
No-load Output Voltage |
48V Max. |
||||
Line Regulation (@-25~70℃) |
±5% |
||||
Accuracy Constant(@-25~70℃) |
±5% |
||||
Set-up Time(@25℃) |
1S Max.@100~277VAC Full Load |
||||
Temperature Coefficient(@-25~70℃) |
±0.03%/℃ |
||||
Overshoot (@-25~70℃) |
±5% No-load Rated Voltage |
||||
Output Ripple & Noise |
0<Ta≤70℃ |
≤4.0VP-P |
|||
-25≤Ta≤0℃ |
/ |
||||
|
Protection (-25~70℃) |
Input Electrical |
Low Voltage Protection |
/ |
||
Over Voltage Protection |
/ |
||||
Output Electrical |
Shorted Circuit Protection |
Hiccup, Auto Recovery |
|||
No-load Protection |
Constant Voltage |
||||
Over Temperature Protection |
/ |
||||
|
Environmental Requirement |
Storage Temp. & Hum. |
-20℃~70℃; 10%~95%RH No condensing |
|||
Operating amb. Temp. & Hum. |
-10℃~45℃; 20%~90%RH No condensing |
||||
Altitude |
3000m |
||||
IPX |
/ |
||||
EMC |
Isolation Resistance |
Input--out: 50M OHMS |
|||
Withstand Voltage |
Input--out: 3750VAC/5mAMax |
||||
Ground Impedance |
/ |
||||
Safety Standards |
IEC 61347-2-13/GB19510.14/UL8750 |
||||
EMI |
CE |
EN 55015:1998,+A1:2000 +A2:2003,CLASS B |
|||
RE |
EN 55015:1998,+A1:2000 +A2:2003,CLASS B |
||||
Other |

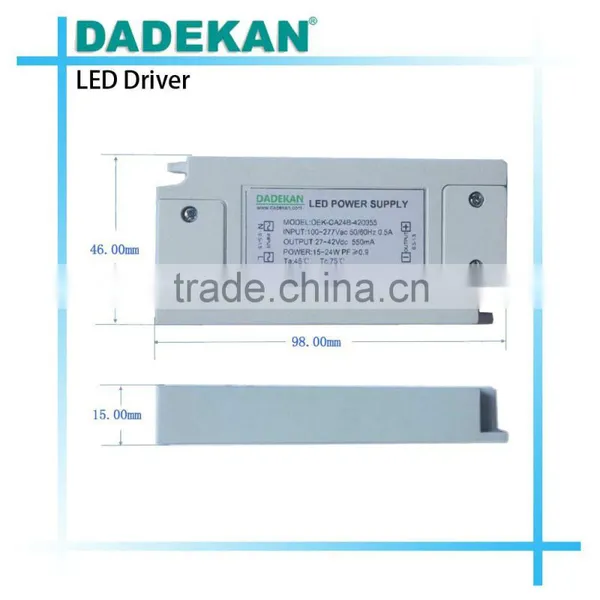

Dimensions (L * W * H) |
98mm X 46mm X 15mm;±1mm |
|||
Weight |
/ |
||||
Package |
/ |
||||
Cooling Method |
Ventilation Cooling |
||||
Reliability |
Burn-in |
The power supply shall go a minimum of 2-4 Hours burn-in test under full load condition. |
|||
MTBF Qualification |
The MTBF shall be at least 20,000hours at 25℃, Full load and nominal input condition |
||||
Design electrolytic capacitor life |
17520Hrs @50℃ Full load and units continuously working |
||||
Note |
1. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 2. Test spare parts: test voltage for 500 VDC, 65% RH @ 25 ℃. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. |
||||
|
Minimum Negative Load Requirements |
None |
||||
Accessories |
/ |
||||
