Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > External LED Driver

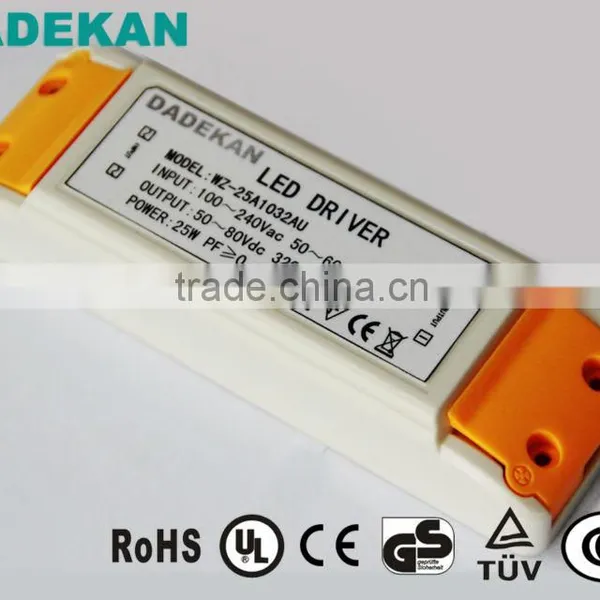

External LED Driver

Name: External LED Driver
Brand: DADEKAN
SKU: 125786907
Availability: InStock

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DADEKAN

Model Number:

WZ-25A1032AU-PF

Contact Supplier Request Quote Chat Now

Shenzhen Dadekan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DADEKAN

Model Number WZ-25A1032AU-PF

Output Power Other, 20~25W

Input Voltage Other, 90VAC~264VAC

Output Voltage 50V~80V

Output Current 320mA

MODEL					WZ-25A1032AU-PF
Input	Input Voltage				90VAC~264VAC
	Voltage Range				100VAC~240VAC
	Start-up Voltage(-25~70°C)				90VAC
	Frequency Range				47Hz~63Hz
	Power Factor(@25°C)				>0.94@220VAC, Full Load
	AC Current (@25°C)				0.23A Max.
	Inrush Current (@ 25°C)				10A Max.
Output	Output Voltage Range				50V~80V
	Output Current				320mA
	Output Power				20-25W
	Conversion Efficiency (@25°C)				90% @220VAC, Full Load
	No-load Output Voltage				92V Max.
	Line Regulation (@-25~70°C)				±5%
	Accuracy Constant(@-25~70°C)				±5%
	Set-up Time(@25°C)				<1S@220VAC, <2S@110VAC
	Temperature Coefficient(@-25~70°C)				±0.03%/°C
	Overshoot (@-25~70°C)				±5% No-load Rated Voltage
	Output Ripple & Noise			0<Ta≤70°C	1600mVP-P
				-25≤Ta≤0°C	3400mVP-P
Protection (-25~70°C)	Input Electrical		Low Voltage Protection		/
			Over Voltage Protection		/
	Output Electrical		Shorted Circuit Protection		Hiccup, Auto Recovery
			No-load Protection		Constant Voltage
	Over Temperature Protection				/
Environmental Requirement	Vibration				10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z, axes
	Impact				20G/11mS pulse,3times at each X, Y, Z axes
	Storage Temp. & Hum.				-40°C~85°C; 10%~95%RH No condensing
	Operating amb. Temp. & Hum.				-40°C~60°C; 20%~90%RH No condensing
	Altitude				3000m
	IPX				/
Safety &. EMC	Isolation Resistance				Input--out: 100M OHMS
	Withstand Voltage				Input--out: 3KVAC/10mA
	Ground Impedance				/
	Safety Standards				IEC 61347-2-13/GB19510.14/UL8750
	EMI	CE			EN55015 Class B/FCC Part15 B
		RE			EN55015 Class B/FCC Part15 B
	Harmonic Current				EN6100-3-2, Class C
	EMS	CS			EN61000-4-6 Level 2 Class B
		RS			EN61000-4-3 Level 2Class B
		ESD			EN61000-4-2 Level 2
		Surge			EN61000-4-2 Level 2
		Power Frequency Harassment			EN61000-4-8 Level 2
		EFT			EN61000-4-4 Level 2
Other	Dimensions (L * W * H)				93.5mm X 45.5mm X 27.5mm;±1mm
	Weight				120g;±5g
	Package				/
	Cooling Method				Ventilation Cooling
Reliability	Burn-in				The power supply shall go a minimum of 4 Hours burn-in test under full load condition.
	Design MTBF				50,000Hrs @25°C, MIL-HDBK-217 Method 2 Components Stress Method
	Design Electrolytic Capacitor Life				17520Hrs @50°C Full load and units continuously working.
Note	Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. Test spare parts: test voltage for 500 VDC, 65% RH @ 25 °C. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.
Minimum Negative Load Requirements	None
Accessories	/
