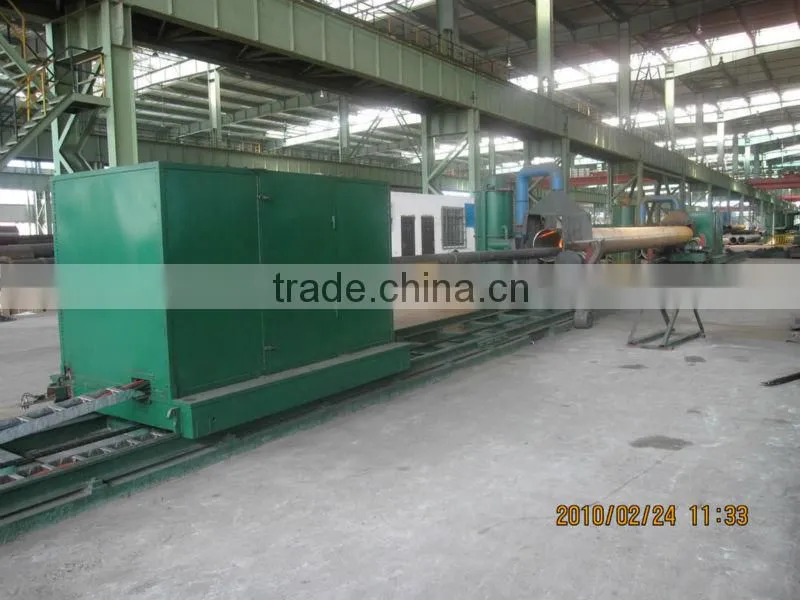

Help CenterSteel Tube Surface Grinder for Sale
Related Products
-
Steel Tube External Cylindrical Grinding Polish MachineUS$ 100,000 - 800,000MOQ: 1 Set -
Tube Grinding Equipment for Pipe External CleaningUS$ 50,000 - 300,000MOQ: 1 Set
-
New Cylindrical Grinding MachinesUS$ 100,000 - 800,000MOQ: 1 Set
-
Steel Pipe External Perfecting Machine With Super QualityUS$ 50,000 - 200,000MOQ: 1 Set
-
Steel Pipe Internal Grinding and Processing MachinesUS$ 50,000 - 300,000MOQ: 1 Set
Specifications
The biggest manufacturer in China.Grinding steel pipe diameter range:219-1420mmGrinding steel pipe diameter length:5-14m.
Specifications
Grinding steel pipe diameter range:219~1420mm
Grinding steel pipe diameter length:5~14m.
Main technical parameters
1,Grinding Wheel Specification:
outer diameter×inner diameter×Thickness=Φ140~350mm(400)×Φ38~50(127)mm×30~100mm,grinding wheel granular 10#~36# thousand impeller (wire wheel).
2,Grinding steel pipe diameter range:Φ219~1420mm;Grinding steel pipe diameter length:5~14m.
3,Long rod of grinding wheel spindle:length 6.5m~7.5(8)m.
4,Overall dimensions:28m×1.5m×1.5m(L×W×H).
5,Light model:Grinding head grinding wheel grinding pressure, are controlled by a spring.Grinding head grinding wheel lifting by the elevator electric control
6,Heavy model :Grinding head grinding wheel grinding pressure controlled by the pressure of PLC.Grinding head grinding wheel lifting by the elevator electric control
7,Steel pipe inner circular grinding machine model is divided into three specifications :heavy, medium,and light .
(1)Heavy model:Long rod grinding wheelspindle diameter φ168mm;
(2)Medium model:Long rod grinding wheelspindle diameter φ140mm;
(3)Light model:Long rod grinding wheelspindle diameter φ86mm;
Rating of machine:
NO |
Usage |
Motor Model |
power/KW |
revolving speed r/min |
1 |
Heavy model |
Y-4(2) |
7.5,15,22,30,45 |
1400(2800) |
Medium model | ||||
Light model | ||||
2 |
Grinding head move |
Y-4 |
1.5~3 |
1400 Frequency modulation device |
3 |
Steel pipe rotation |
Y-4 |
3~5.5 |
1400 Frequency modulation device |
Remarks:Above the three kinds of main spindle of long rod grinding wheel the maximum length is 8 m.

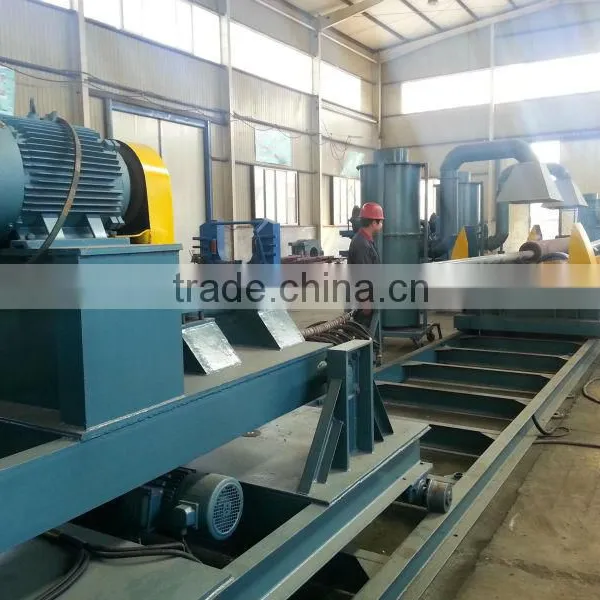

According to the customer request :Room equipped with sound insulation dust removal,Dry type centrifugal suction dust removal device or Special centrifugal wet dust removal device(This device can effectively clear all kinds of fly ash).
