Specifications

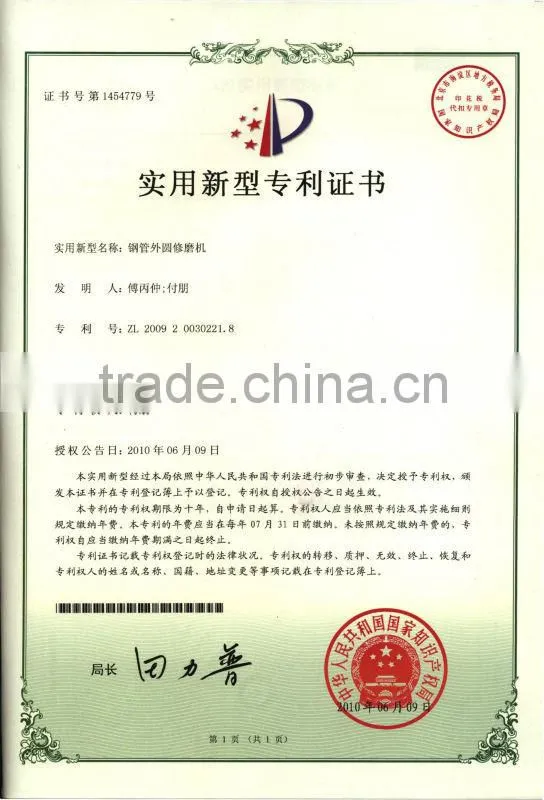

patent procut.patent number ZL 2009 2 0030221.8suitable for grinding surfaces of welded stainless steel and alloy tube

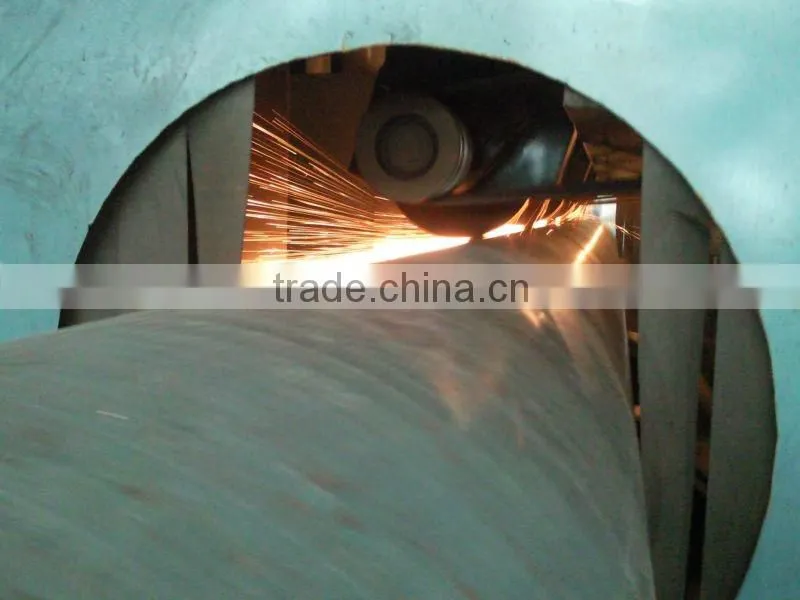

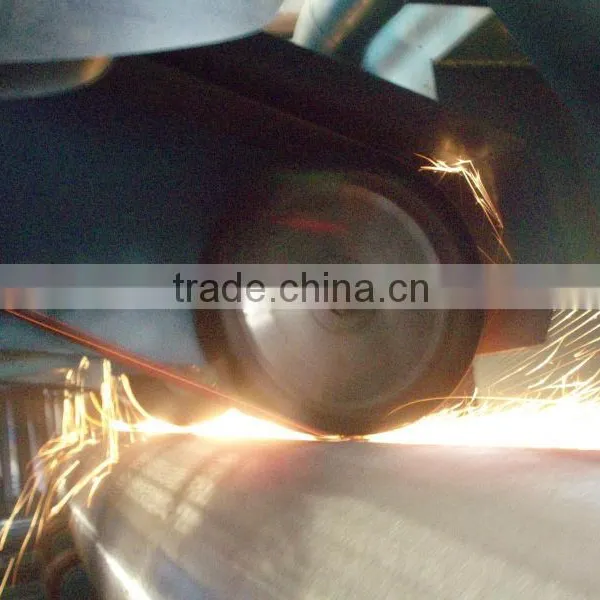

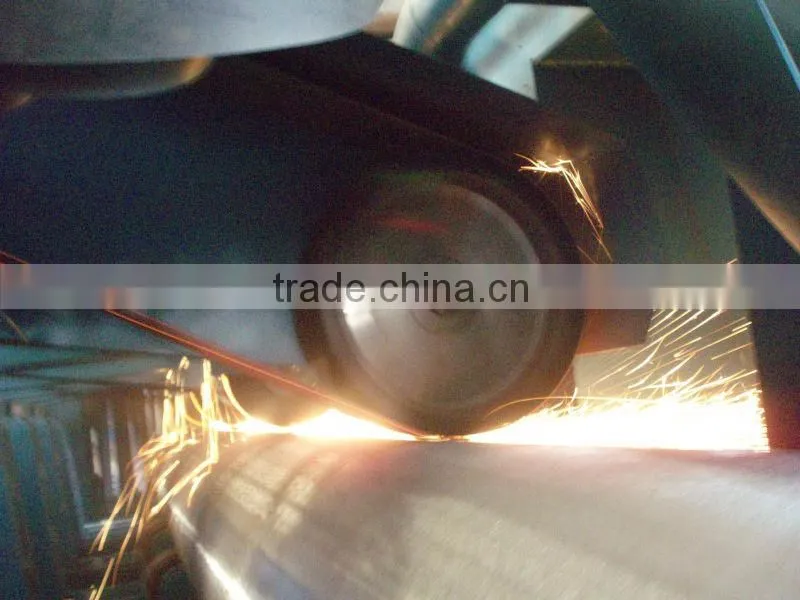

Tube cylindrical grinding machine is used to polish the surface of pipe, can achieve the requirements with coarse grinding and fine grinding.
Main technical parameters
1,Grinding Wheel Specification:
outer diameter×inner diameter×Thickness=Φ350~400(610)mm×Φ75~127(220)mm×50~100mm,grinding wheel granular 10#~36#, thousand impeller (wire wheel).
2,Abrasive belt specification:
4000mm×150mm, grinding wheel granular24#-36#.
3,Grinding steel pipe diameter range:
Φ219~1420mm;Grinding steel pipe diameter length:3~16m.
4,carrying capacity of Steel pipe roller rotating workpiece
10~100ton.
5,Light model:
Grinding head grinding wheel grinding pressure, are controlled by a spring.Grinding head grinding wheel lifting by the elevator electric control
6,Heavy model :
Grinding head grinding wheel grinding pressure controlled by the pressure of PLC.Grinding head grinding wheel lifting by the elevator electric control.Operating platform is equipped with LCD screen, eight group of cameras in monitoring grinding wheel grinding steel pipe processing.
7,Overall dimensions:
28m×38m×3m(L×W×H).
Rating of machine:
NO. |
Usage |
Motor Model |
power/KW |
revolving speed r/min |
1 |
A,Light model |
Y-4(2) |
7.5, 15, 22,30,45,75 |
1400(2800) |
2 |
Steel pipe rotation |
Y-4 |
3~11 |
1400 Frequency modulation device |
According to the customer request :
Room equipped with sound insulation dust removal,Dry type centrifugal suction dust removal device or Special centrifugal wet dust removal device(This device can effectively clear all kinds of fly ash).
